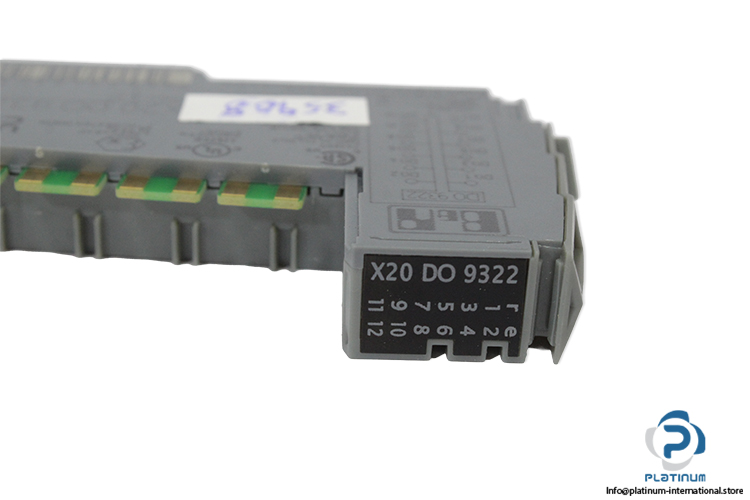

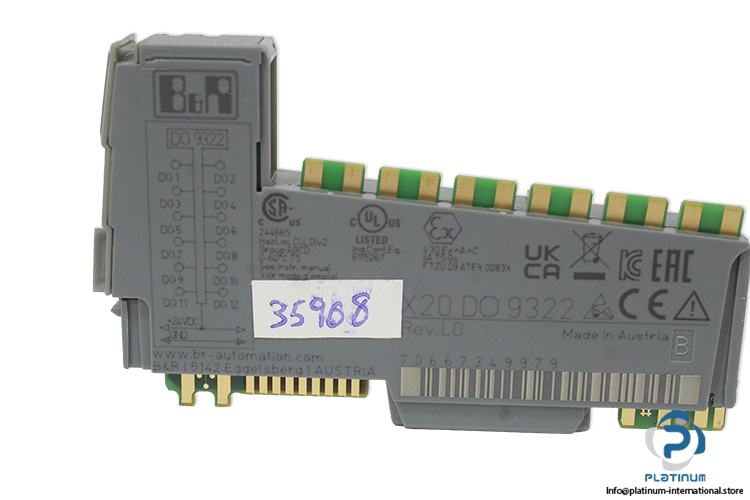

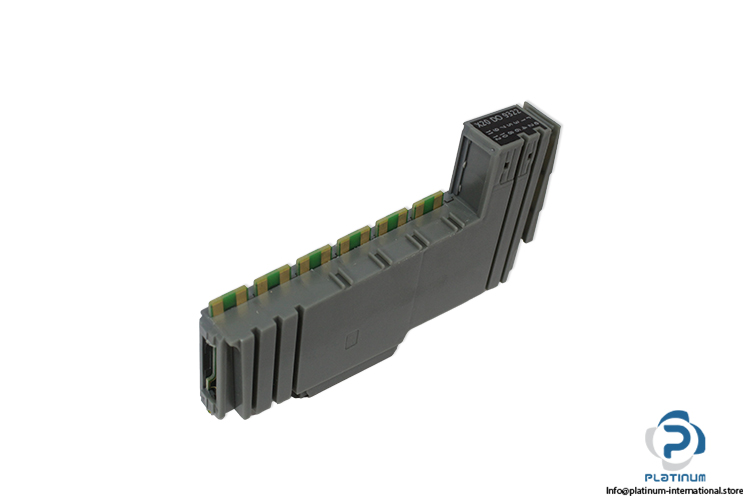

B&R X20DO9322 DIGITAL OUTPUT MODULE
B&R X20 DO 9322 Digital Output Module
The B&R X20DO9322 digital output module is part of the X20 automation series, designed for reliable control of digital field devices in industrial automation systems. It provides stable 24 V DC output performance with efficient power consumption and compact modular integration.
Manufacturer: B&R
Type: Digital Output Module
Model: X20 DO 9322
Revision: L0
| Series | X20 |
| Output Voltage | 24 V DC |
| Output Current | 0.5 A |
| Power Consumption | 1.15 W |
| Digital Outputs (DO) | 12 (1-Wire Connections) |
| Protection Class | IP20 |
| Operating Temperature | -25 / 60 °C |
