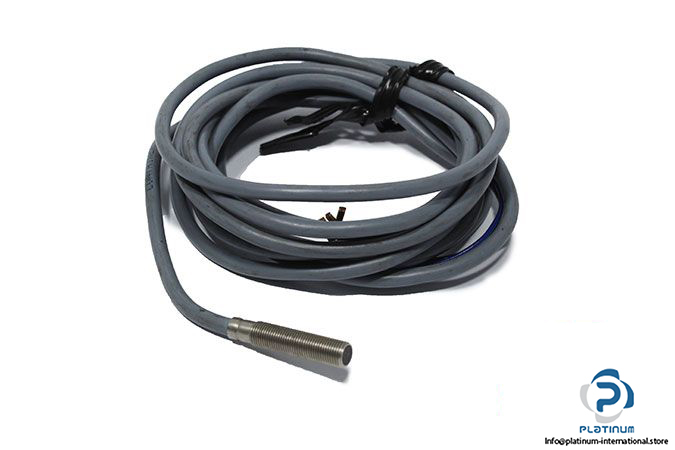

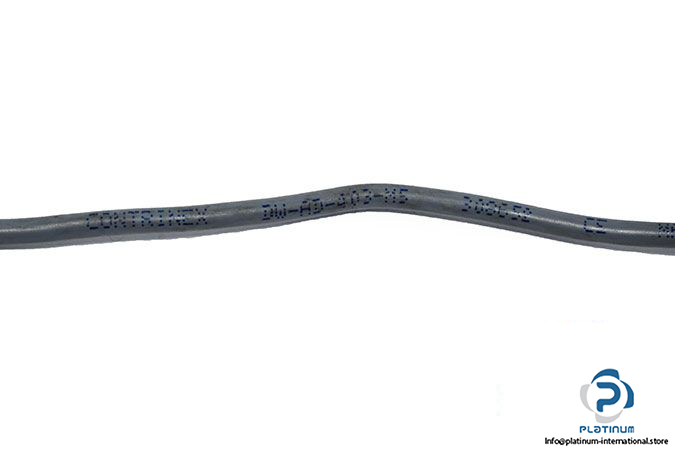

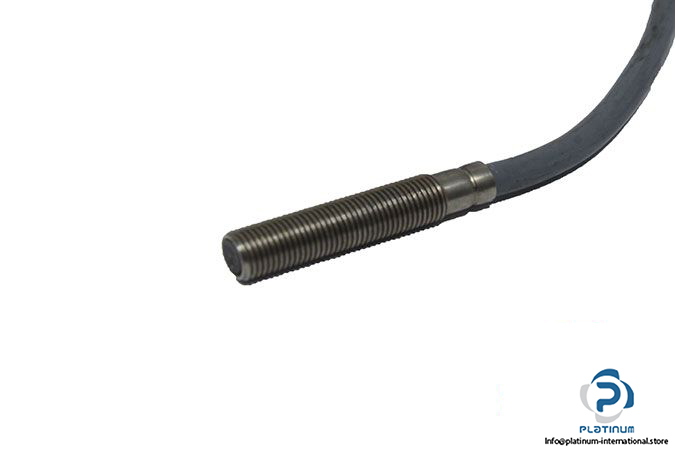

Contrinex DW-AD-403-M5 Inductive Sensor

Manufacturer: CONTRINEX

Type: Inductive Sensor

Model: DW-AD-403-M5

Rated Operating Distance: 0.8 mm

Supply Voltage: 10 … 30 VDC

Output Current: ≤ 200 mA

Switching Frequency: ≤ 5000 Hz

Voltage Drop: ≤ 2 V

Output Sensor: PNP

No-Load Supply Current: ≤ 10 mA

Ambient Temperature: -25 … +70 °C

Degree of Protection: IP 67

Housing Material: Stainless-steel V2A

Connection: Cable

Diameter: 5 mm

Weight: 0.03 Kg
