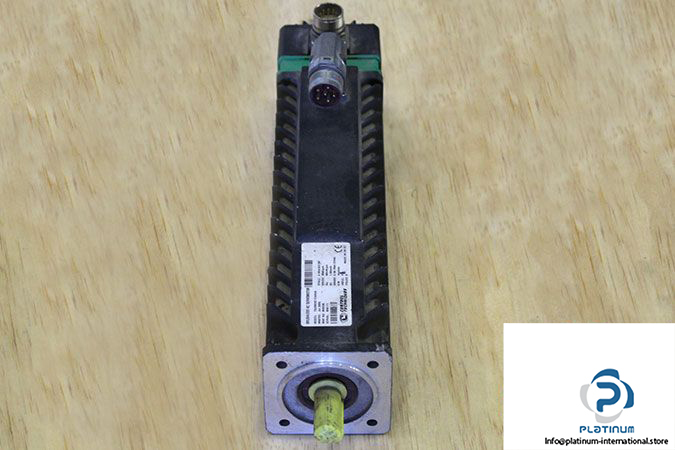

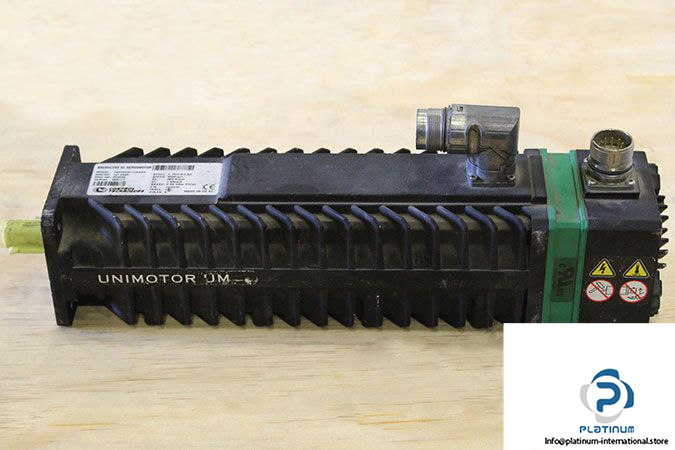

Control Techniques 75UMD301CAAAA Brushless AC Servo Motor
新着
在庫あり1 ユニット即納可能
1 111,11$
大量在庫
グローバル配送
専門的なサポート
品質保証

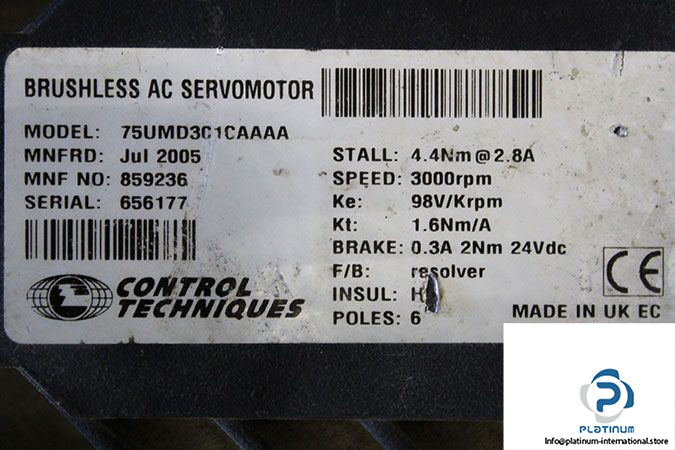

Manufacturer: CONTROL TECHNIQUES / EMERSON
Type: BRUSHLESS AC SERVO MOTOR
Model: 75UMD301CAAAA
MRN: 859236
Frame Size: 75
Motor Type: For Unidrive
Stall Current: 2.8 Arms
Voltage Constant: 98 V/Krpm
Rated Speed: 3000 Revolution Per Minute (rpm)
Stall Torque: 4.4 Nm
Constant Torque: 1.6 Nm/A
Brake Voltage: 24 VDC
Brake Current: 0.3 A
Brake Torque: 2 Nm
Poles: 6
Resolver: F/B

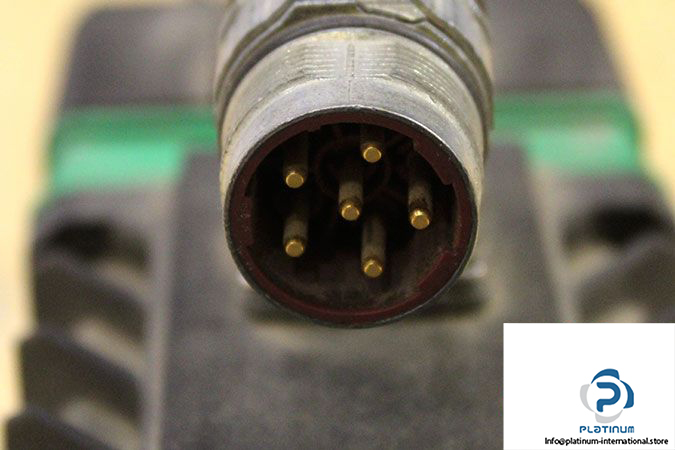

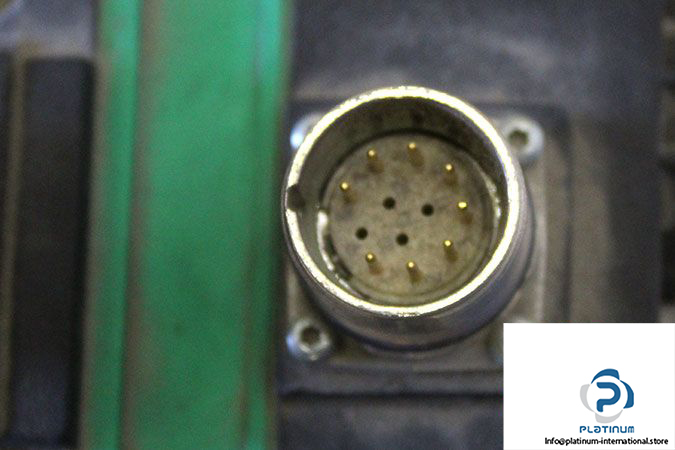

Connection Type: Connector (Std)
Weight: 5.5 kg
