Cooper 01EB 80MGR Split Cylindrical Roller Bearing
Cooper 01EB 80 MGR Split Cylindrical Roller Bearing

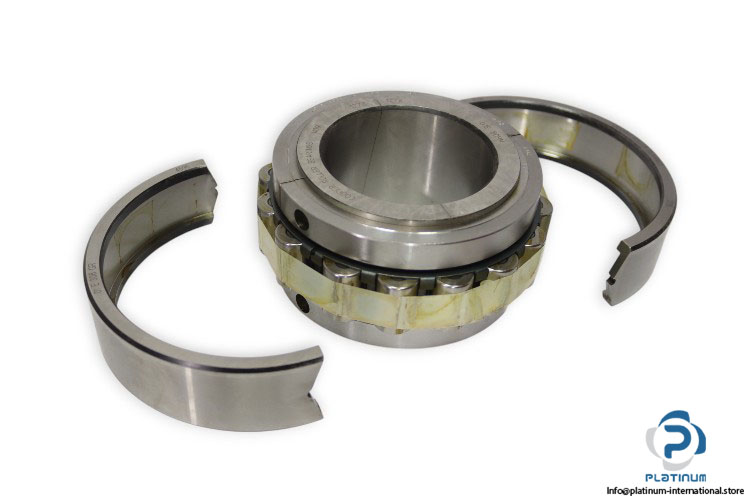

The Cooper 01EB 80 MGR is a precision-engineered split cylindrical roller bearing designed for easy installation and reliable performance in demanding industrial environments. Belonging to the 01E series, it allows quick assembly around the shaft without the need to dismantle other components, minimizing downtime and maintenance costs. Its robust GR fixed design ensures stable operation, high load capacity, and long service life.
Manufacturer: Cooper
Type: Split Cylindrical Roller Bearing

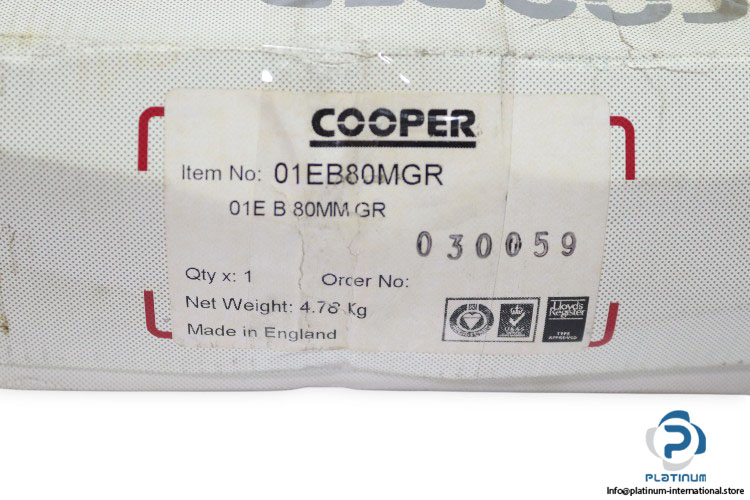

Model: 01EB 80 MGR / 01E B 80M

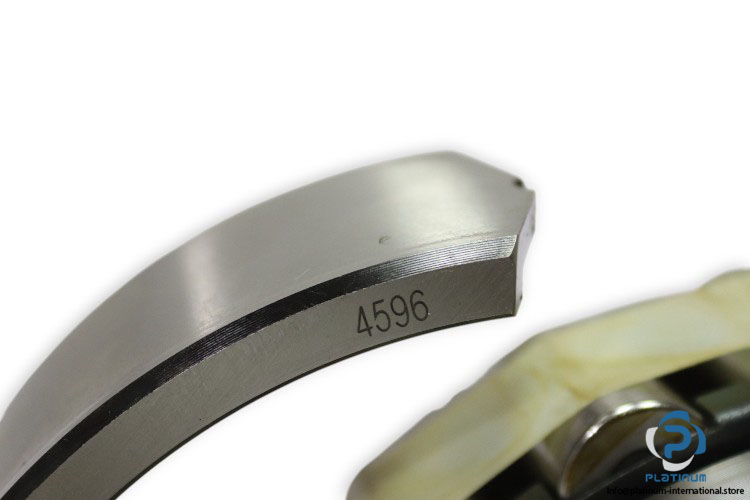

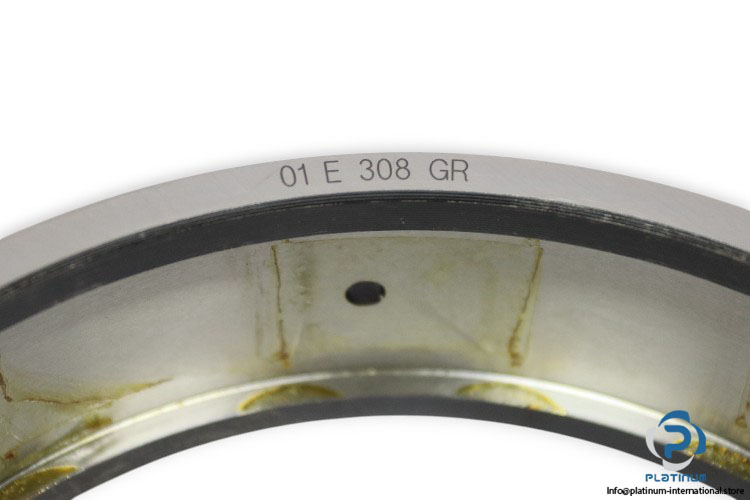

Code: 01 E 308 GR / 4596 / 01E 80MM
Series: 01E
Principal Dimensions:
| Shaft Diameter (d) | 80 mm |
| Outer Diameter (D) | 152.40 mm |
| Width (B) | 38.9 mm |
| G | 177.80 mm |
| J | 50 mm |
| L | 136 mm |
| Basic Dynamic Load Rating (Cr) | 234 kN |
| Basic Static Load Rating (C0r) | 299 kN |
| Speed Max. | 2790 rpm |
| Design | GR, Fixed |
