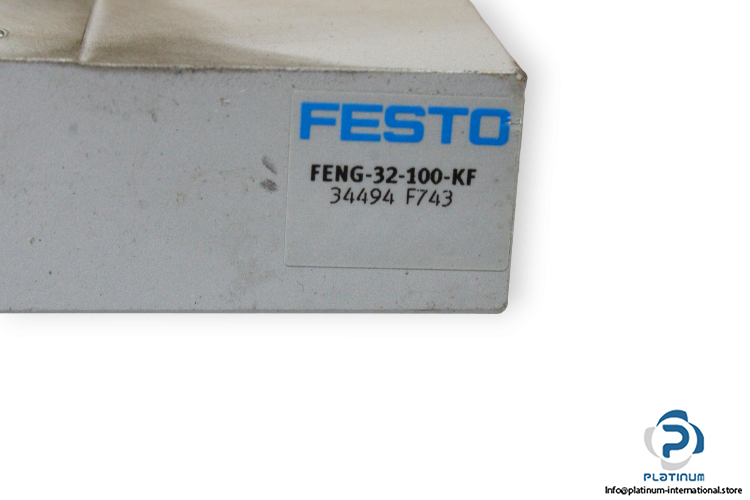

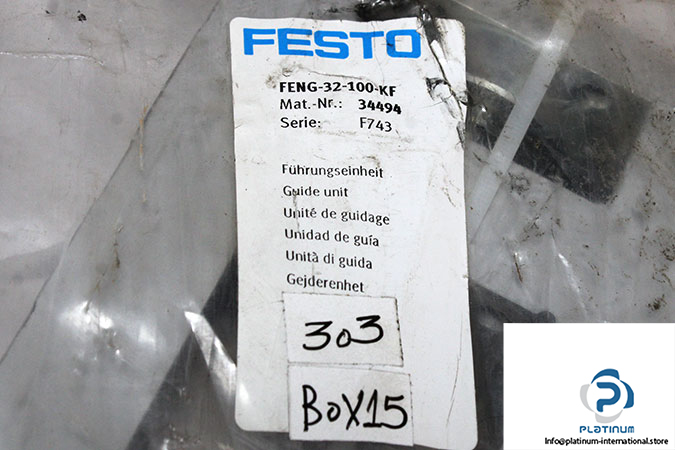

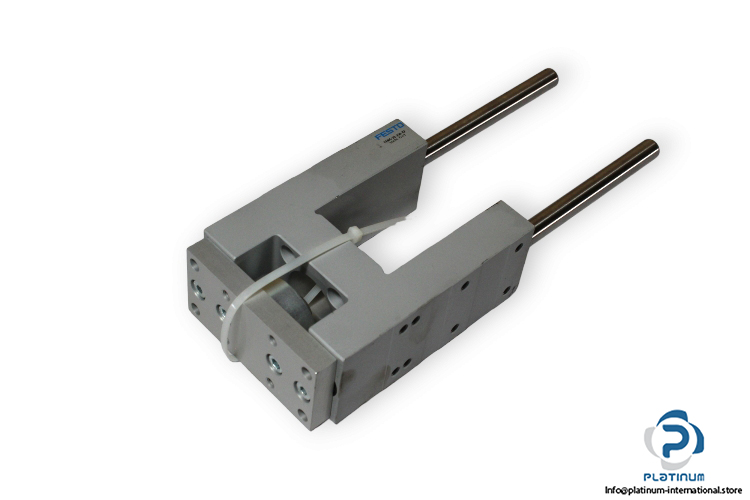

Festo 34494 Guide Unit
Manufacturer: FESTO
Type: Guide unit
Model: FENG-32-100-KF
Part No.: 34494
Size: 32
Stroke: 100 mm
Mounting position: Any
Guide: Recirculating ball bearing guide
Structural design: Guide
Ambient temperature: -20 °C … 80 °C
Max. force Fy: 750 N
Max. force Fy static: 1020 N
Max. force Fz: 750 N
Max. force Fz static: 1020 N
Max. torque Mx: 28 Nm
Max. static moment Mx: 38 Nm
