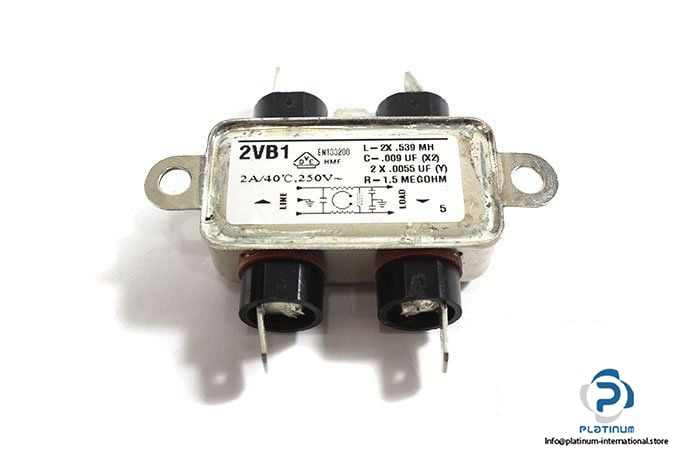

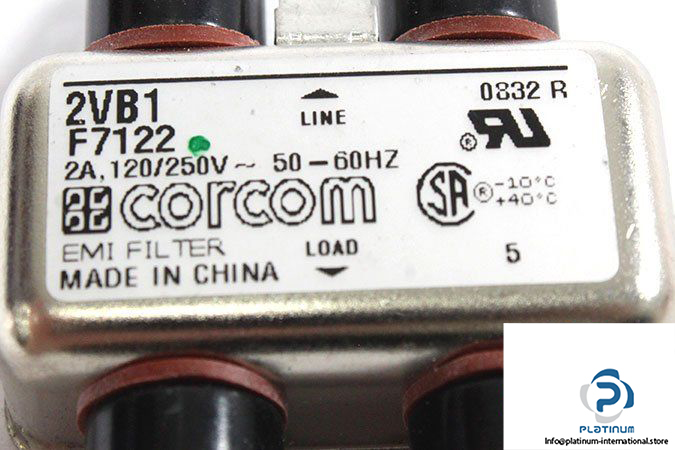

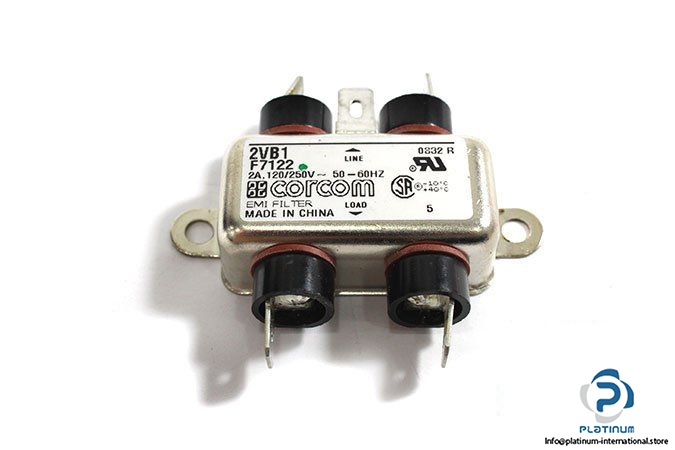

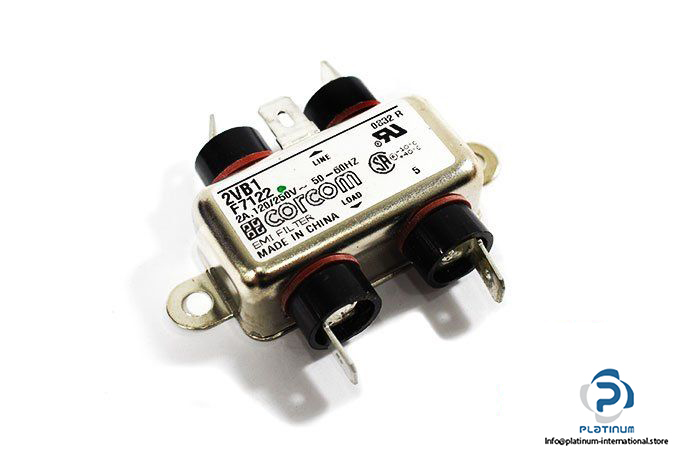

Corcom 2VB1 Power Line Filter

Manufacturer: CORCOM

Type: POWER LINE FILTER

Series: B

Part No.: 2VB1

Used for: VIDEOJET SPARE PARTS

Application:

• RFI Filters for High Impedance Loads at Low Current
• Wide variety of termination options
• Meets low leakage current requirements of VDE portable equipment and non-patient medical equipment

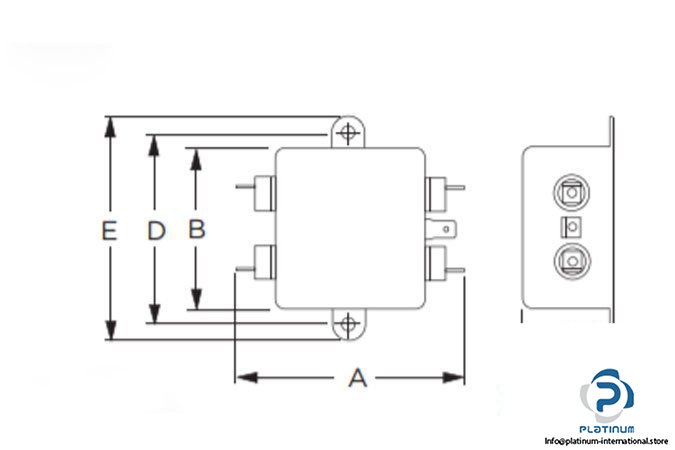

Dimensions:

A: 54.6 mm

B: 44.5 mm

C: 15.7 mm

D: 53.9 mm

E: 64.3 mm

Current Rating: 2 A

Max. Rated Voltage: 250 V AC

Leakage current designation: Standard

Input / Output Style: 0.250 [6.3] spade terminals

Frequency: 50 / 60 Hz

Temperature: -10 … 40 °C

Weight: 0.04 kg
