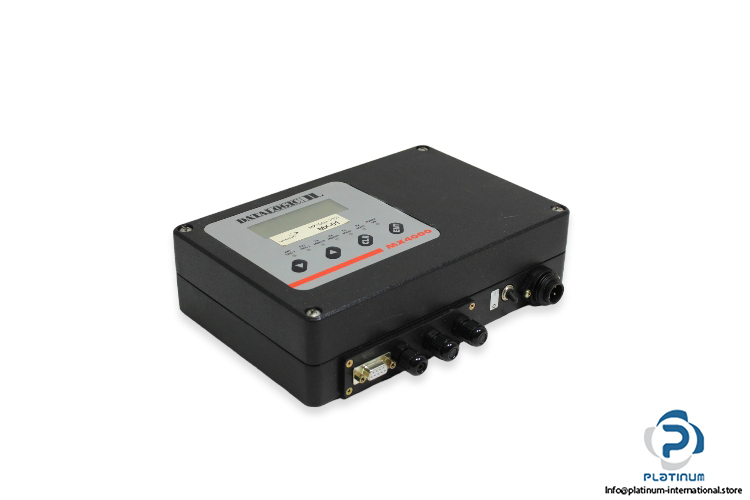

Data Logic MX-01 Data Concentrator Multiplexer Barcode Scanner
中古
在庫あり1 ユニット即納可能
大量在庫
グローバル配送
専門的なサポート
品質保証
Manufacturer: Data Logic
Type: Data Concentrator Multiplexer Barcode Scanner
Model: MX-01
MNR: MX4000-1001
Supply voltage: 10 … 30 V DC
Power consumption (max): 6 W
INTERFACES: RS232
CONTROL INPUTS
IN1: (optocoupled NPN or PNP)
IN2: (optocoupled NPN or PNP)
Voltage: max. 30 V DC (10 … 30 V DC)
Input current: max. 25 mA (0.2 … 0.6 A)
CONTROL OUTPUTS
OUT1, OUT2, OUT3: open emitter, open collector
VCE: max. 40 V DC
Collector current: max. 40 mA continuous; 130 mA pulsed
VCE saturation: 1V at 10 mA
Operating temperature: 0 … 55 °C
Dimensions: 66 x 200 x 240 mm
