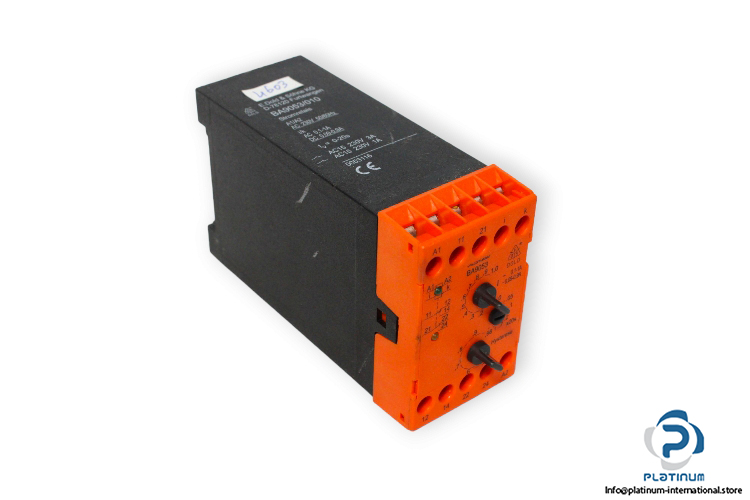

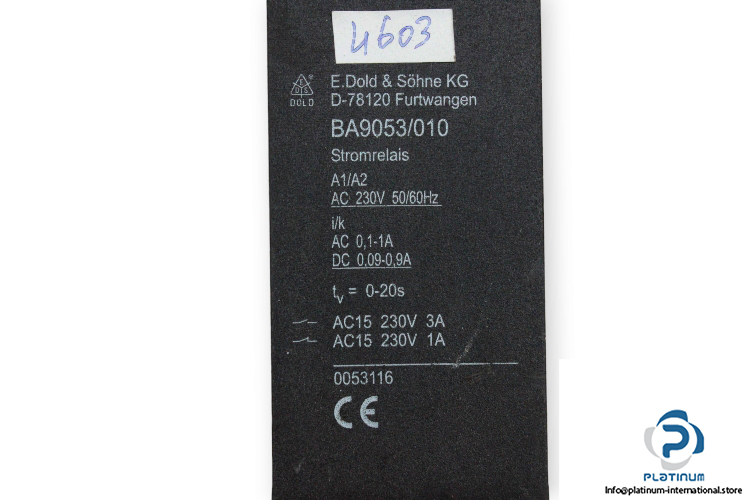

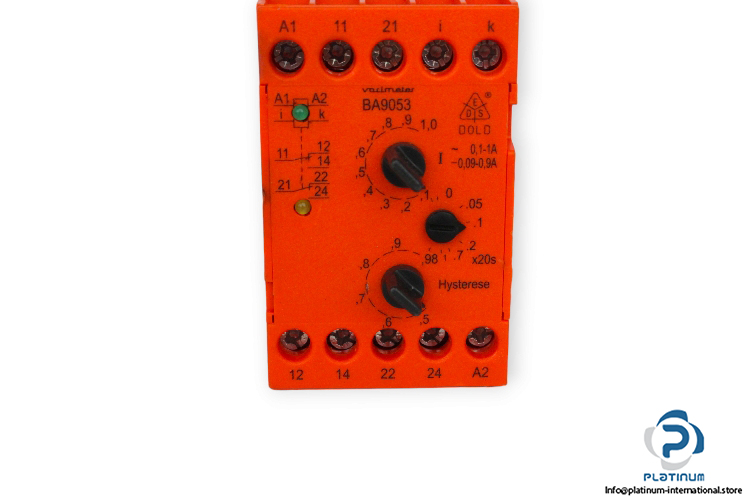

Dold BA9053/010 Current Relay Timer

Manufacturer: Dold
Type: Current Relay Timer
Model: BA9053/010
Part No.: 0053116

Nominal voltage: 230 V AC
Nominal frequency: 50/60 Hz
Output: 2 changeover contacts (SPDT)
Contact rating:
AC-15: 230 V AC,1 A
AC-15: 230 V AC,3 A
Mounting: DIN-rail
Thermal current Ith: 2x 5A
Current Measuring range: 0.1 … 1 A (AC), 0.09 – 0.9 A (DC)
Time delay tv: 0 … 20s
Operating mode: Continuous operation
Degree of protection: Housing: IP 40,Terminals: IP 20
Operation temperature: -40 … 60°C
Dimensions: 45 x 75 x 120 mm
