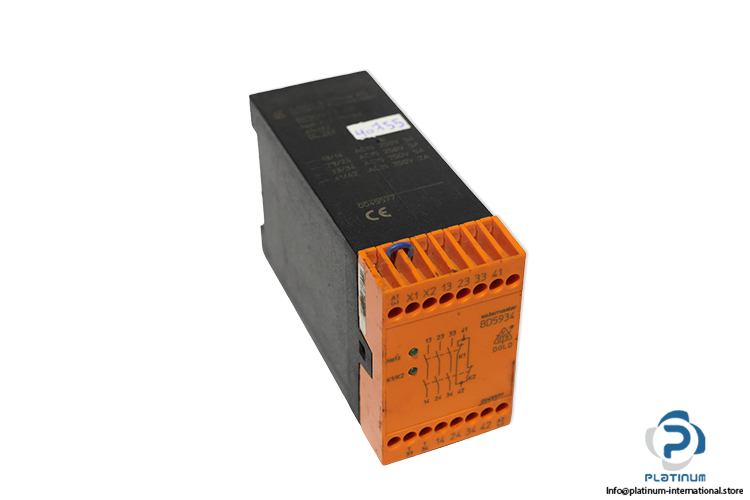

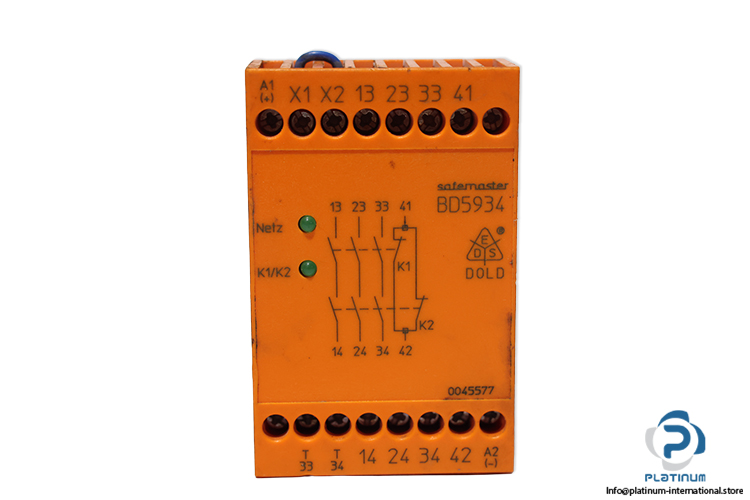

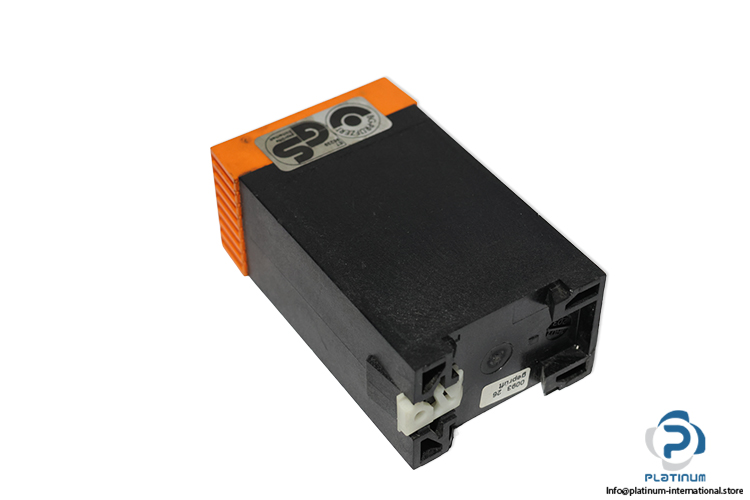

Dold BD 5934.48 Emergency Stop Module
中古
在庫あり1 ユニット即納可能
Emergency Stop Module E. Dold u. Söhne BD5934.48 emergency stop module with 24 V DC supply, 1/2-channel operation, 3 NO and 1 NC output contacts.
大量在庫
グローバル配送
専門的なサポート
品質保証
| Article number | 0045577 |

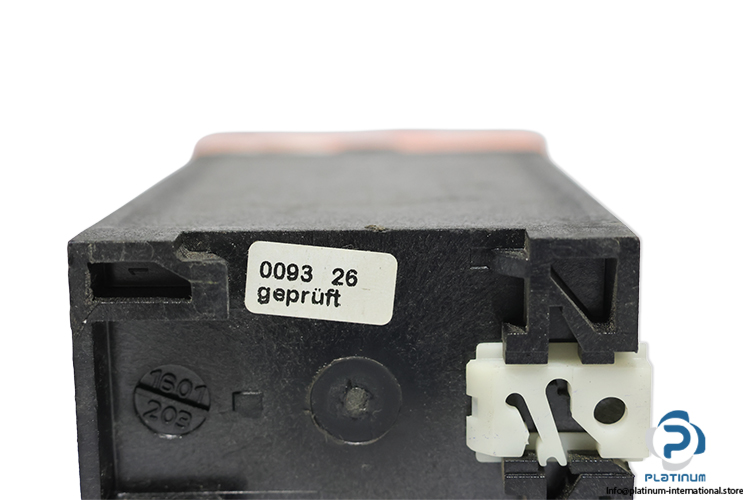

| Code | 0093 26 |
| Nominal Voltage | DC 24 V |
| 1-/ 2-channel | 1, 2 |
| Approvals | UL-Recognized |
| Cat. / PL acc. to EN ISO 13849-1 | 4/e |
| Thermal current Ith max. | 10 |
| Width | 45 mm |
| Output contacts max. | 1 NC contact, 3 NO contacts |
| Connection | Pluggable screw terminals |

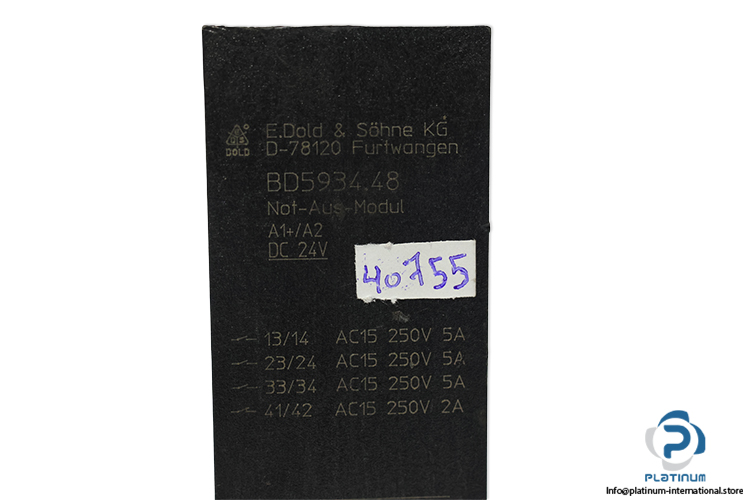

| Contact rating | 13/14 AC15 250V 5A,23/24 AC15 250V 5A,33/34 AC15 250V 5A,41/42 AC15 250V 2A |
| Stock key | JO-004 |
| Condition | Used |
| SKU | 1101367 |
| Weight | 0,35 |
