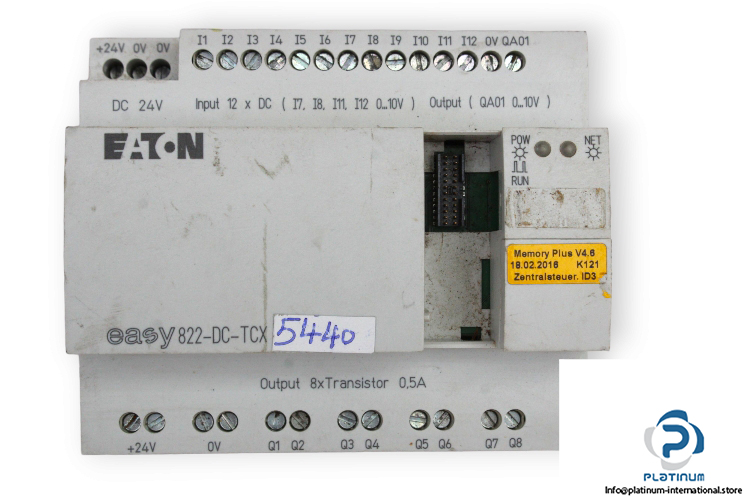

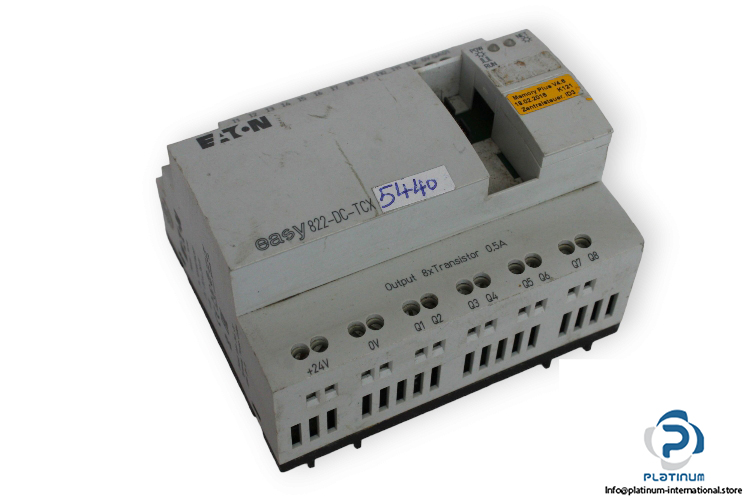

Eaton Easy 822-DC-TCX Programmable Relay
中古
在庫あり1 ユニット即納可能
タイプ：プログラム可能リレー
大量在庫
グローバル配送
専門的なサポート
品質保証
Manufacture: Eaton/ Moeller
Type: Programmable Relay
Model: EASY 822-DC-TCX
Supply voltage: 24 V DC (20.4 … 28.8 V DC)
Heat dissipation power: 4 W
Output rating: 24 V DC / 500 mA
No. of Digital input (DI): 12
Number of analog inputs (AI): 4
Number of analog outputs (AO): 1
Number of transistor outputs: 8
Mounting: for DIN rail mounting
The programming method: PC
Protection degree: IP20
Operating temperature: -25 … 55°C
Electrical connection: screw terminals
Dimensions: 107.5 x 90 x 72 mm
