Embraco NEK6181GK Compressor
999,99$
冷却ユニット Embraco NEK6181GKコンプレッサー、Elcoシェーデッドポールモーター、およびFrigomec RV-77X220吸引アキュムレータを備えた完全なコンプレッサーユニットで、中低温システムにおける安定で効率的な冷却用に設計されています。

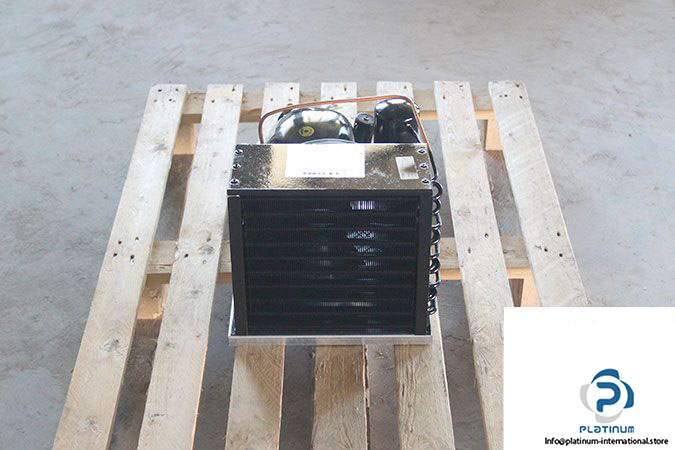

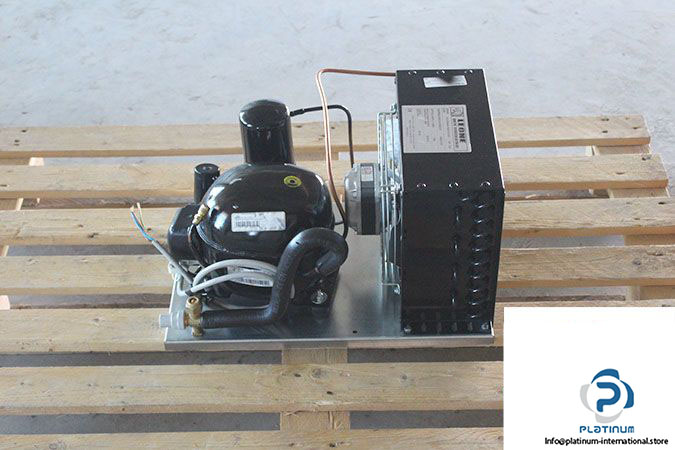

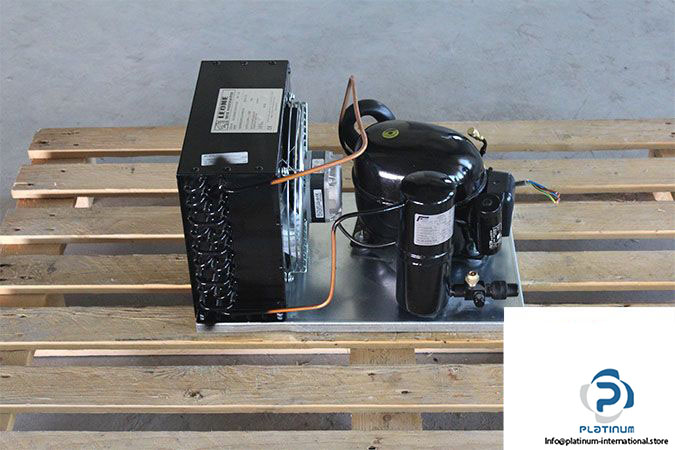

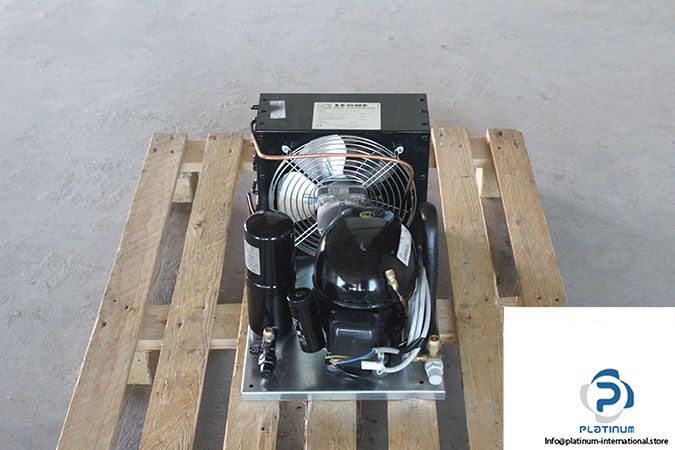

EMBRACO NEK6181GK COMPRESSOR UNIT WITH ELCO MOTOR & FRIGOMEC ACCUMULATOR
This integrated cooling unit includes the high-efficiency Embraco NEK6181GK compressor, Elco shaded pole motor, and Frigomec suction accumulator. Designed for reliability and temperature control in refrigeration systems, this unit is ideal for medium- and low-temperature commercial applications.

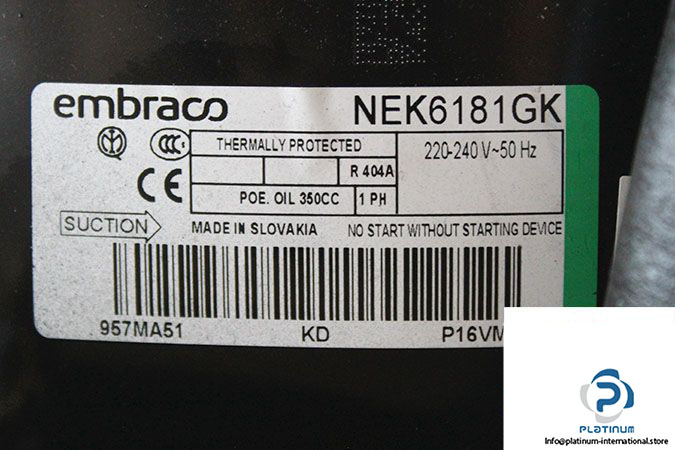

Compressor
Manufacturer: Embraco
Type: Compressor
Model: NEK6181GK

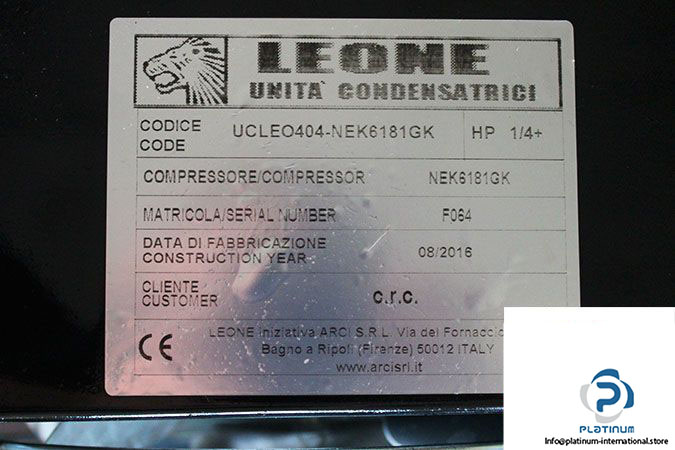

Code: UCLEO404-NEK6181GK
Engineering Nr.: 957MA51
Phase: 1~ Single Phase
Technical Information (Compressor)
- Horsepower: 1/3 + Hp
- Rated Voltage: 220 to 240 V
- Displacement: 7.28 cm³
- Bore: 26.497 mm
- Stroke: 13.2 mm
- Range Temperature: -20 to 10 °C
- Lubricant Type / Viscosity: ESTER / ISO22
- Frequency: 50 Hz
- Refrigerant: R-404A
- Lubricant Charge: 350 ml

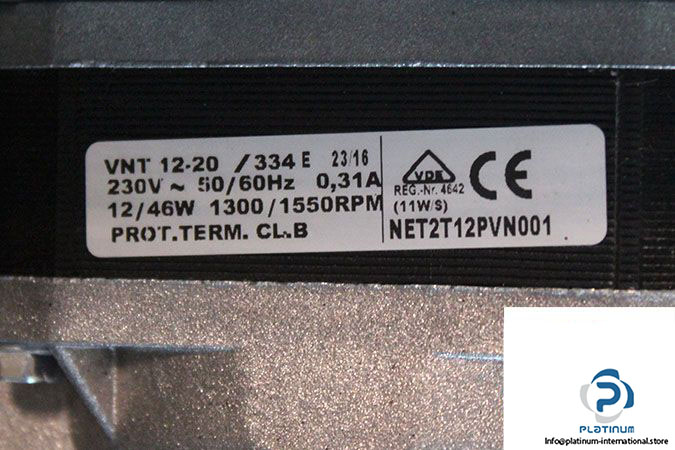

Motor
Manufacturer: Elco
Type: Shaded Pole Motor
Model: NET2T12PVN001
Type Motor: VNT12-20/334
Technical Information (Motor)
- Nominal Voltage: 230 V
- Rated Current: 0.31 A
- Power Input: 46 W
- Power Output: 12 W
- Frequency: 50/60 Hz
- Speed: 1300/1550 rpm
- Degree of Protection: IP44
- Insulation Class: B

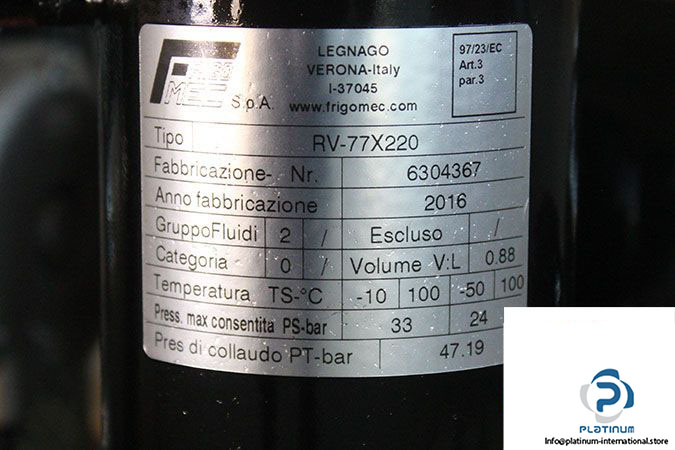

Suction Accumulator
Manufacturer: Frigomec
Type: Suction Accumulator
Model: RV-77X220
Technical Information (Accumulator)
- Fluids Group: 2
- Volume: 0.88 L
- Temperature Range: -10 to 120 / -50 to 100 °C
- Max Pressure: 33 / 24 bar
- Test Pressure: 47.19 bar
