ESA VT60 Operator Panel
ESA VT60 Operator Panel

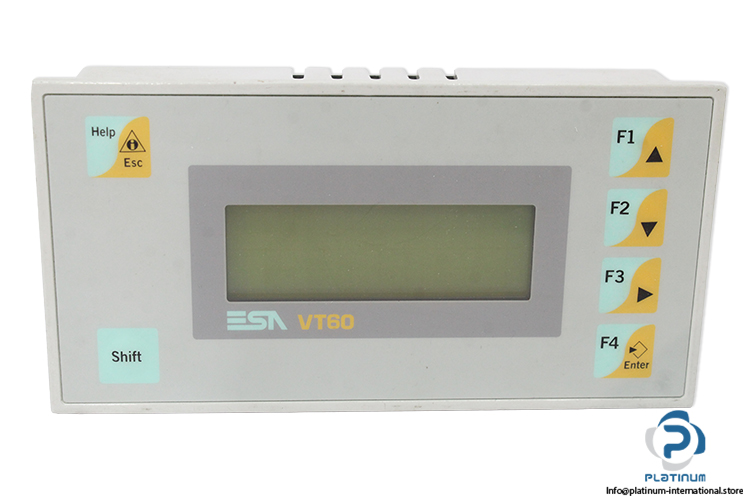

The ESA VT60 is an industrial operator panel designed for machine control and monitoring applications. It features a text LCD display with LED backlighting and multiple communication interfaces, allowing reliable operator interaction in industrial automation environments.
Manufacturer: ESA
Type: Operator Panel
Model: VT60

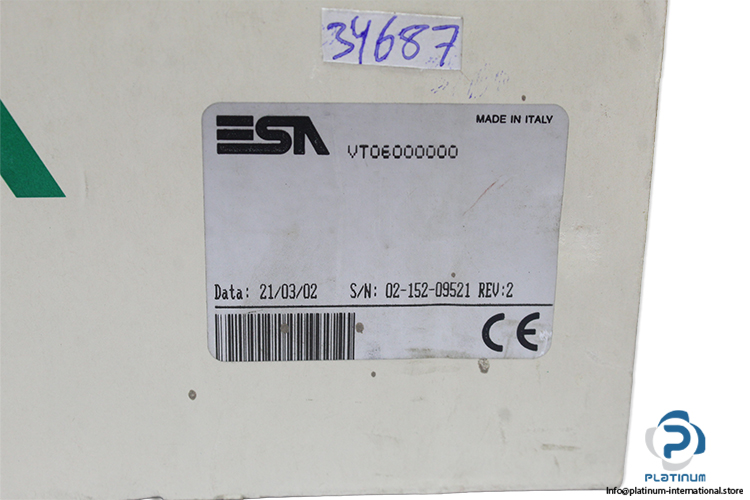

Part No.: VT06000000
Serial No.: 02-152-09521
Revision: 2
| Keys | 6 keys |

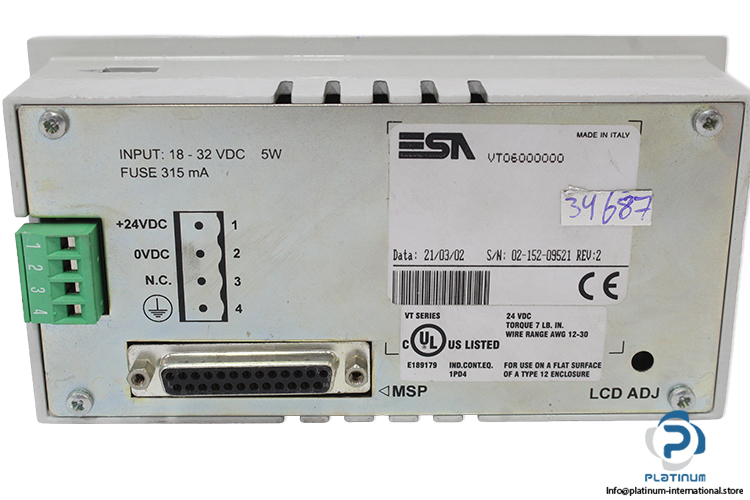

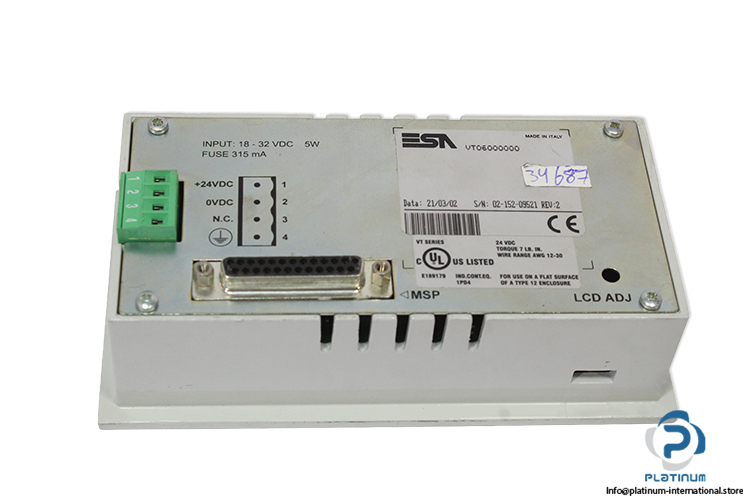

| Power Input | 18 - 32 VDC, 5 W |
| Protection | Requires a 315 mA fuse |
| Display Type | Text LCD |
| Backlighting | LED |
| Columns By Rows (Text) | 20 x 4 |
| Display Area Size (mm h-v) | 70.4 x 20.8 |
| Text Character Matrix (pixels h-v) | 5 x 7 |
| Character Dimensions (mm h-v) | 2.95 x 4.75 |
| Contrast Adjustment | Trimmer |
| User Memory Project (bytes) | 256K |
| Interfaces | MSP Serial Port RS232 / RS422 / RS485 / TTY 20 mA |
| Protection Level | IP66 (Front) |
| Operating Temperature | 0...+50 °C |
