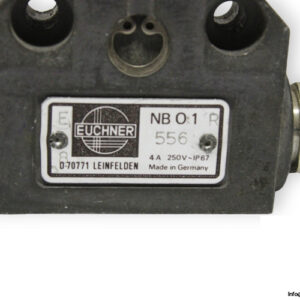

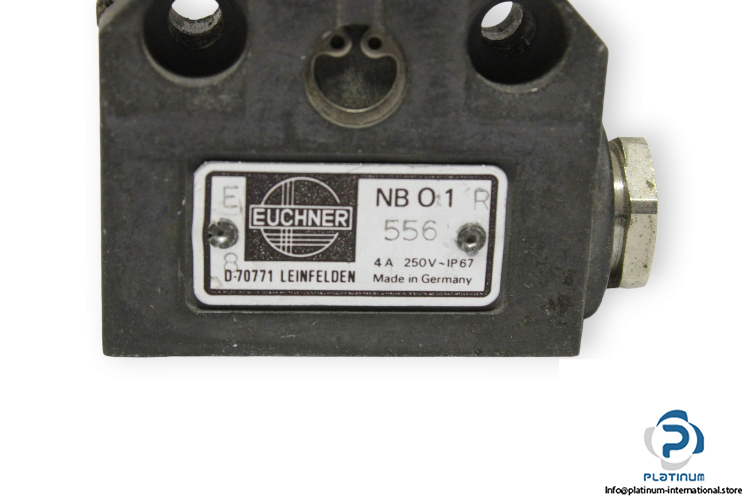

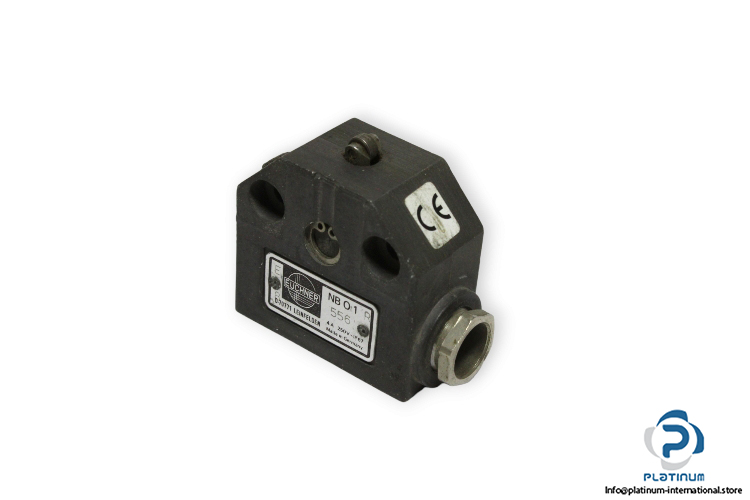

Euchner NB 01 R 556 Limit Switch
Manufacturer: EUCHNER
Type: Precision Single Limit Switch
Model: NB 01 R 556
Actuator Type: roller plunger
Plunger material: stainless steel
Connection cross section: 0.14 … 1 mm²
Rated insulation voltage Ui: 250 V
Short circuit protection according to IEC 60269-1: 6A gG
Switching current: min. at DC 24V 10 mA
thermal rated current Ith: 6 A
Approach speed: 0.01 … 50 m/min
Actuating force: 15 … 20 N
Rated impulse withstand voltage Uimp: 2.5 kV
Connection: Cable entry
Cable entry: M12 x 1.5
Protection class: IP67
Ambient temperature: -5 … 80 °C
