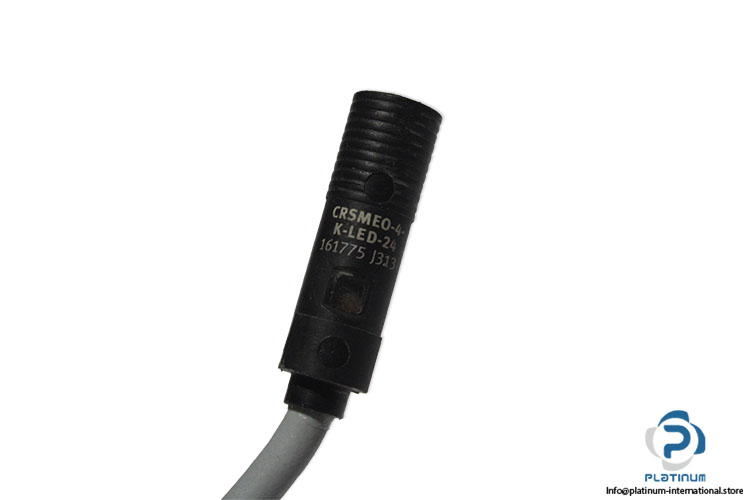

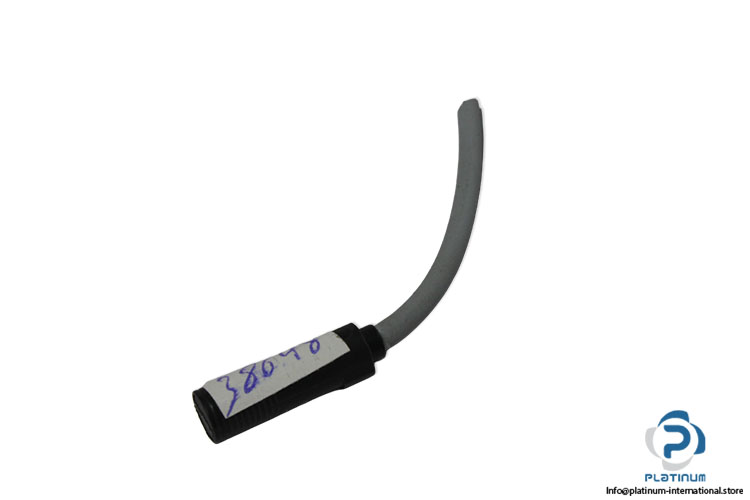

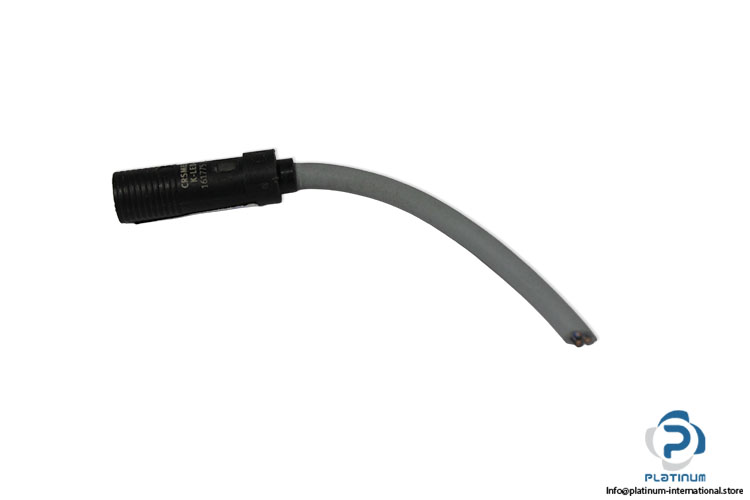

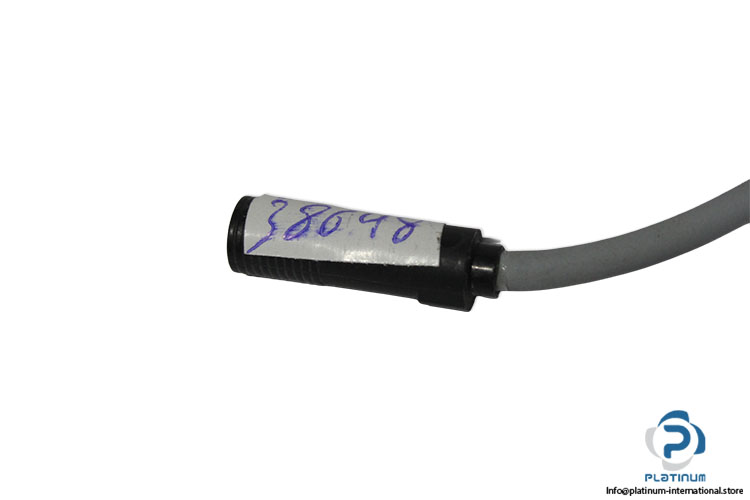

Festo 161775 Proximity Sensor
中古
在庫あり2 単位即納可能
Proximity Sensor The Festo CRSMEO 4-K-LED-24 Proximity Sensor is a magnetic reed position sensor designed for reliable detection in pneumatic cylinders and industrial automation systems. Operating from 12 to 30 VDC with an 800 Hz switching frequency, N/O contact output, and IP67 protection, it delivers accurate and dependable performance in industrial environments.
大量在庫
グローバル配送
専門的なサポート
品質保証
| Part No. | 161775 |
| Code | J313 |
| Rated operating voltage | 24 VDC (12 V ... 30 V) |
| Output current | 500 mA |
| switching frequency | 800 Hz |
| Type of connection | Cable , Open end |
| Output type | N/O contact |
| Repetition accuracy | 0.2 mm |
| Switching output | Contact-based, bipolar |
| Design | Round |
| Measured variable | Position |
| Measuring principle | Magnetic reed |
| Ambient temperature | -20 °C ... 60 °C |
| Housing material | PP |
| Degree of protection | IP67 |
| Condition | Used |
| Stock key | JO-004 |
| SKU | 1093137 |
| Weight | 0,01 |
