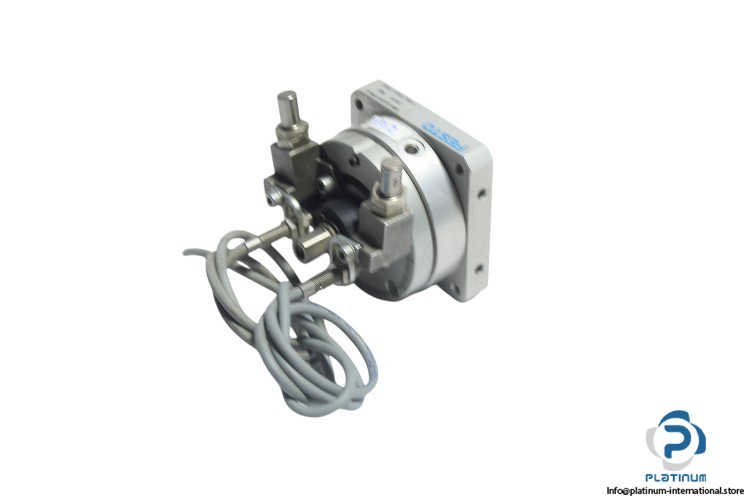

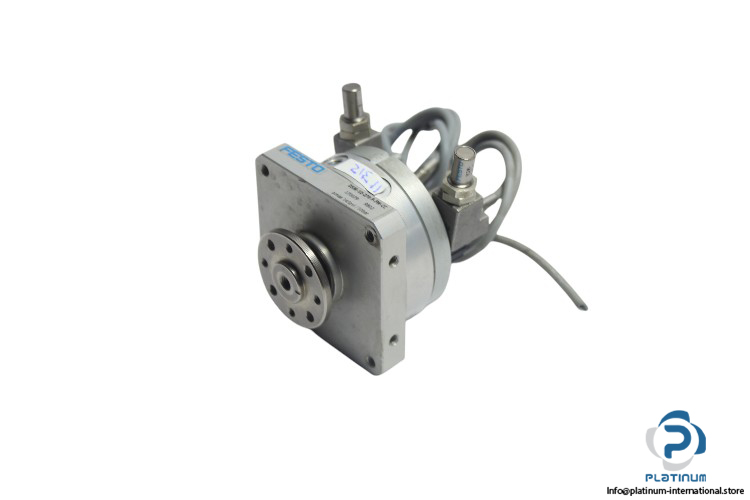

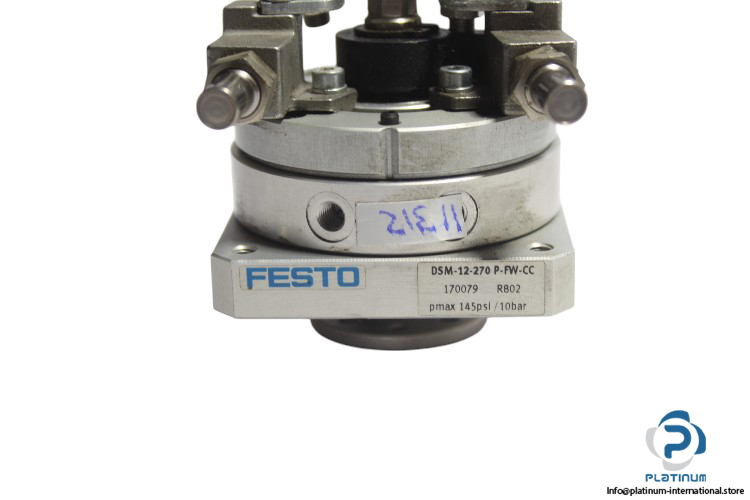

Festo 170079 Swivel Module
中古
在庫あり2 単位即納可能
Swivel Module
FESTO DSM-12-270-P-FW-CC Swivel Module is designed for precise rotational motion in industrial automation. With a rotation angle of 0-238° and a double-acting operation, it ensures smooth and controlled movement. Featuring a 13° cushioning angle and filtered compressed air operation, it provides high efficiency and reliability.0-238°13°2-10ActuatorAirAngleAutomationbarCompressedControlCushioningdouble-actingDSM-12-270-P-FW-CCFestoFilteredIndustrialModuleMotionPneumaticPrecisionPressureRotaryrotationSwivel
大量在庫
グローバル配送
専門的なサポート
品質保証
FESTO DSM-12-270-P-FW-CC Swivel Module
The FESTO DSM-12-270-P-FW-CC Swivel Module is a high-precision rotary actuator designed for applications requiring smooth and controlled rotational movement. With its double-acting operation and adjustable rotation angle, it ensures precise positioning in industrial automation systems.
Manufacturer: FESTO
Type: Swivel Module
Model: DSM-12-270-P-FW-CC
Part No.: 170079
| Size | 12 |
| Operating Medium | Filtered Compressed Air |
| Cushioning Angle | 13° |
| Rotation Angle Adjustment Range | 0 ... 238° |
| Operating Pressure Range | 2 ... 10 bar |
| Operation Mode | Double-Acting |
| Port Size | 5 mm |
| Ambient Temperature | -10 … 60 °C |
