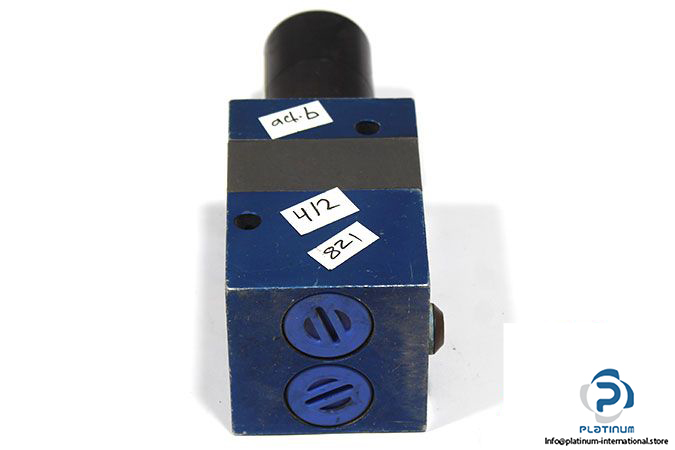

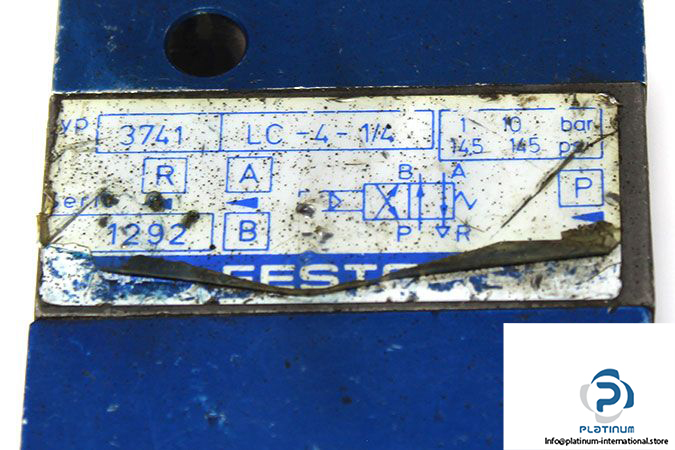

Festo 3741 Basic Valve Body

Manufacturer: Festo

Type: Basic Valve Body

Model: LC-4-1/4

Part No: 3714

Operating Pressure: 1…10 bar

Fluid: Air

Flow Rate: 600 l/min

Design: Poppet Valve, Directly Actuated in One Direction, with Return Spring.

Ambient Temperature: -10…60 °C

Port Size: G1/4

Material: Blue Aluminum

Weight: 0.75 kg

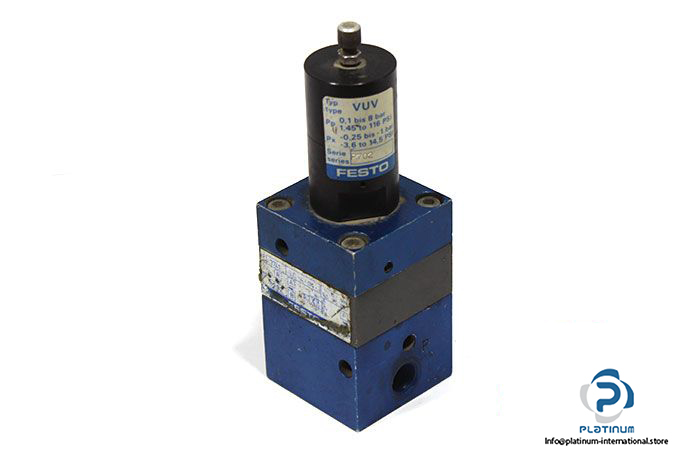

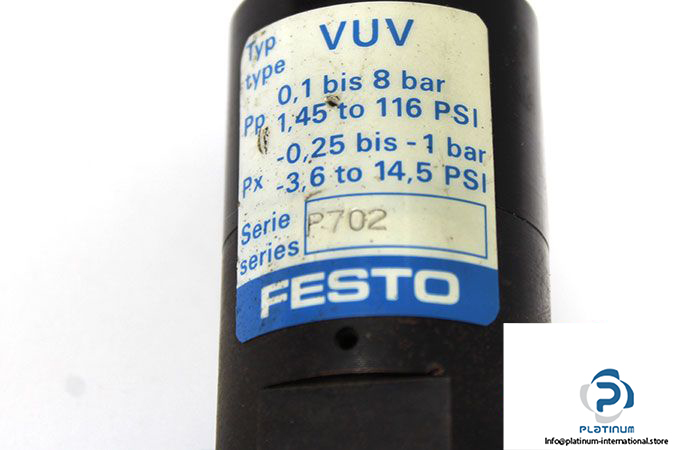

Attachment: FESTO 7654 VACUUM ACTUATOR

Manufacturer: Festo

Type: Vacuum Actuator

Model: VUV

Part No: 7654

Operating Pressure: -0.25…1 bar

Pilot Pressure: 0.1…8 bar
