Festo 563796 Flow Sensor
新着
在庫あり1 ユニット即納可能
Flow Sensor
The FESTO SFAM-62-3000L-TG12-2SA-M12-5A flow sensor offers high-precision measurement with a 15V-30V DC operating range, 16 bar pressure, and a multi-color illuminated LCD for easy monitoring in industrial applications.comasdcDisplayFestoflowhigh-precisionHousingIndustrialLCDM12MeasurementPA-reinforcedPressureSensorSensors
大量在庫
グローバル配送
専門的なサポート
品質保証

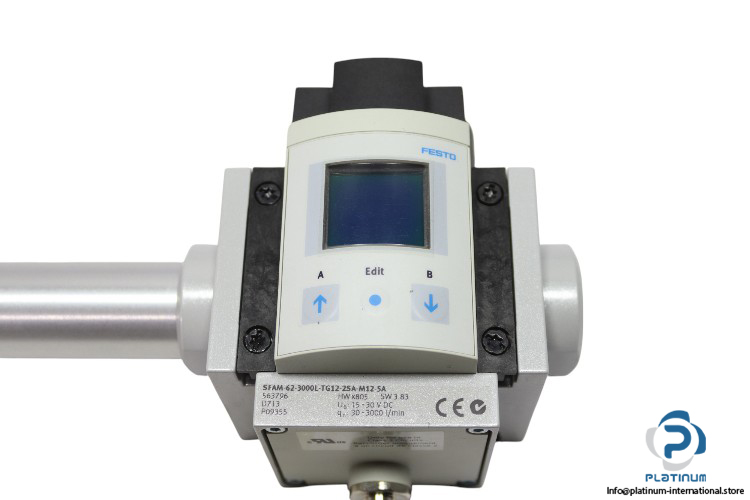

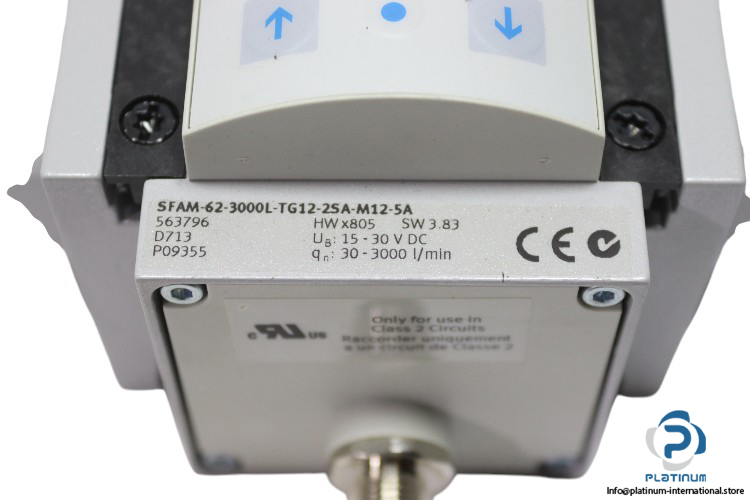

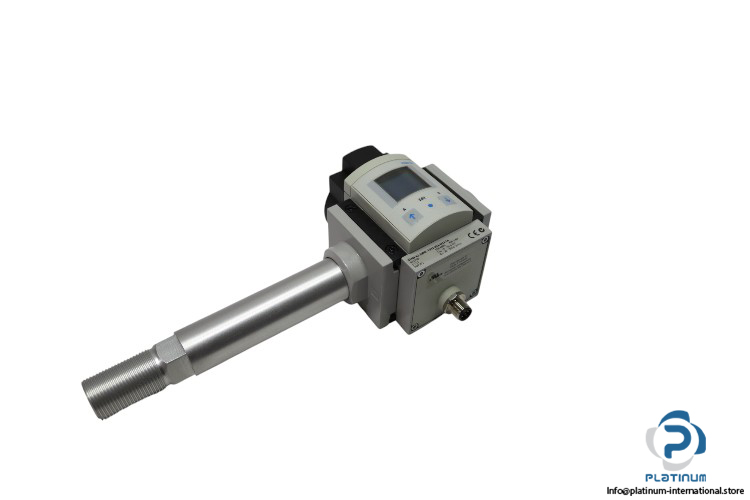

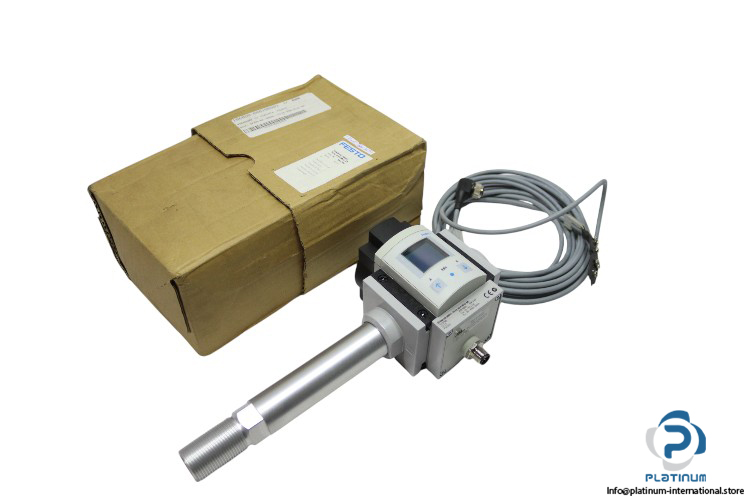

FESTO SFAM-62-3000L-TG12-2SA-M12-5A Flow Sensor
The FESTO SFAM-62-3000L-TG12-2SA-M12-5A flow sensor is designed for high-precision flow measurement in industrial automation systems. With a wide operating voltage range and robust pressure and temperature measurement capabilities, it ensures reliable performance in demanding applications.
Manufacturer: FESTO
Type: Flow Sensor
Model: SFAM-62-3000L-TG12-2SA-M12-5A
MRN: 563796
Comas Part No: i06080-000100009 c/ 6080
Technical Data:
- DC Operating Voltage Range: 15 V … 30 V
- Pressure Measuring Range End Value: 16 bar
- Temperature Measuring Range Start Value: 0 / 50 °C
- Overload Pressure: 20 bar

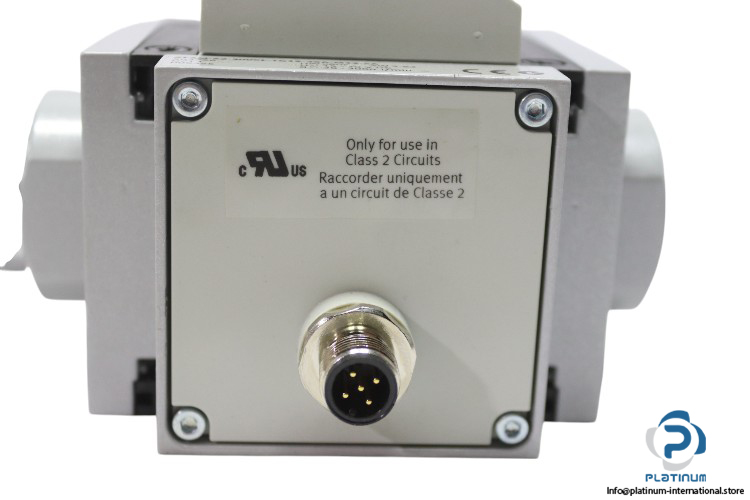

- Electrical Connection 1, Connection Type: Plug
- Electrical Connection 1, Connection Technology: M12x1 A-coded as per EN 61076-2-101
- Electrical Connection 1, Number of Pins/Wires: 5
- Electrical Connection 1, Type of Mounting: Screw-type lock
- Display Type: Illuminated LCD, multi-color
- Pressure Drop: 40 mbar … 200 mbar
- Housing Material: Die-cast aluminum PA-reinforced
- Port Size: G3/4
