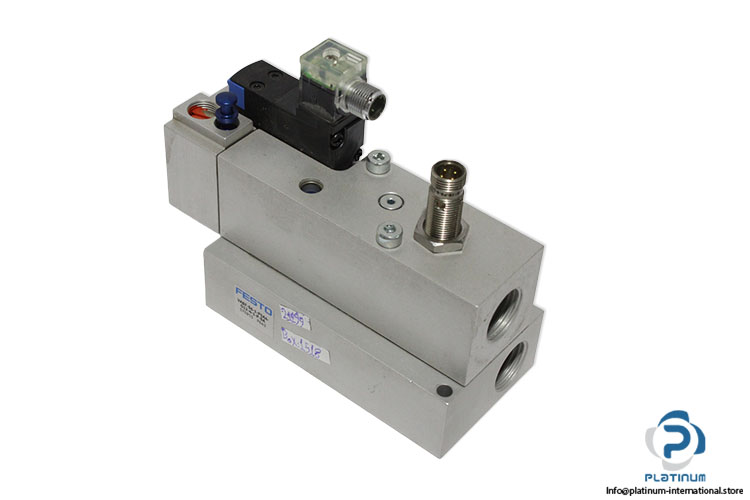

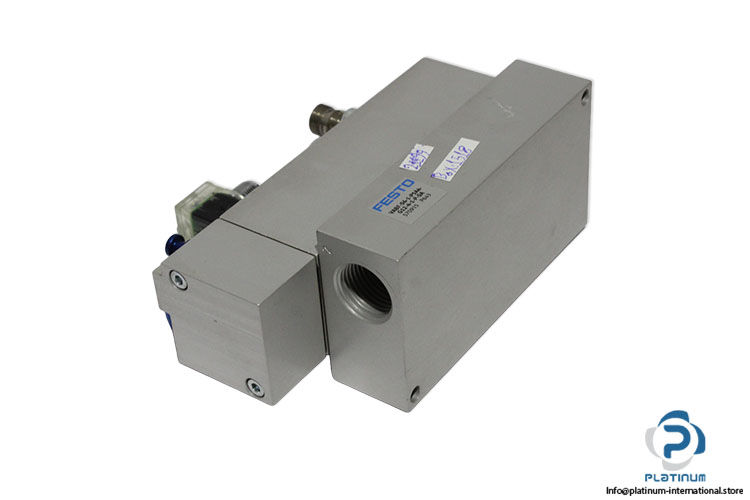

Festo 570915 Soft Start Valve
新着
在庫あり5 単位即納可能
Soft Start Valve Industrial Festo soft start valve with solenoid coil and inductive proximity sensor, designed for controlled pneumatic pressurization, airflow management, and reliable automation performance.
2/2AirAutomationcoilControlControlledFestoInductiveIndustrialPilotPistonPneumaticPneumaticsProximitySensorSoftsolenoidStartVAValveWay
大量在庫
グローバル配送
専門的なサポート
品質保証

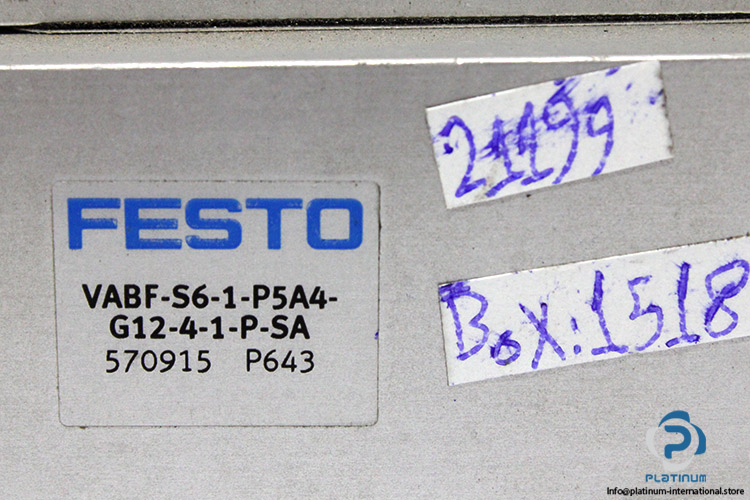

| Part No. | 570915 |
| Fluid | Air |
| Design | Piston Seat |
| Valve Function | 2/2 Way |
| Structural Design | Piston Gate Valve |
| Type of Control | Pilot-Controlled |
| Type of Actuation | Electrically |
| Switching Element Function | N/O Contact |
| Operating Pressure | 2 ... 12 bar / 0.2 ... 1.2 MPa |
| Switchover Pressure Presetting | 4 bar |
| Standard Nominal Flow Rate Pressurization | 3000 l/min |
| Standard Nominal Flow Rate Exhaust Air | 3300 l/min |
| Pilot Air Port 12/14 | Sub-Base, Size 1 |
| Pneumatic Connection 1/2/3 | Sub-Base, Size 1 |
| Pneumatic Connection 4 | G1/2 |
| Electrical Connection | Form C Plug |
| Material | Die-Cast Aluminum |
| Protection Class | IP65 |
| Ambient Temperature | -5 … 50 °C |

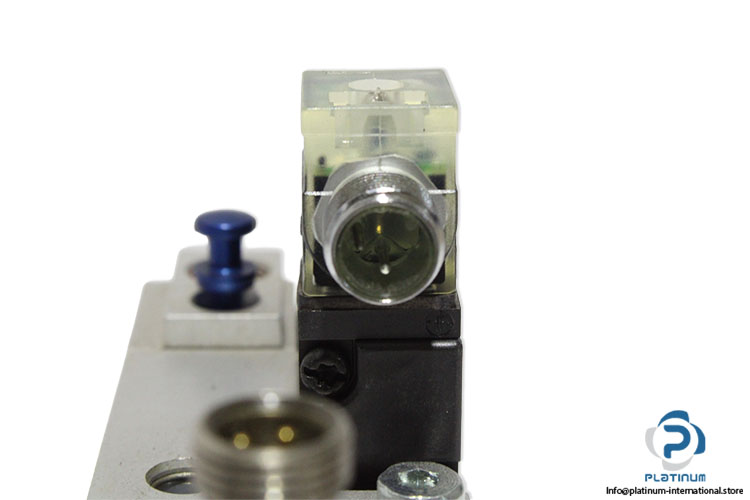

| Attachment 1 | FESTO 8081524 SOLENOID COIL |
| Solenoid Coil Manufacturer | FESTO |
| Attachment 1 Type | Solenoid Coil |

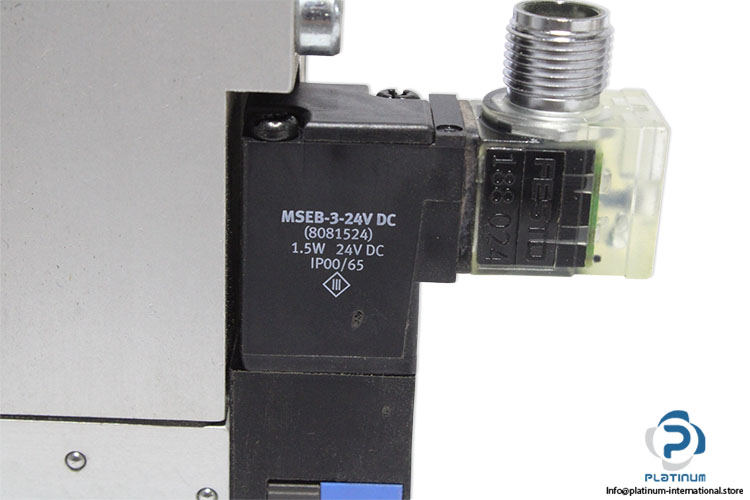

| Solenoid Coil Model | MSEB-3-24V DC |
| Solenoid Coil Part No. | 8081524 |
| Solenoid Coil Supply Voltage | 24 V DC |
| Solenoid Coil Power Consumption | 1.5 W |
| Solenoid Coil Protection Class | IP00/65 |

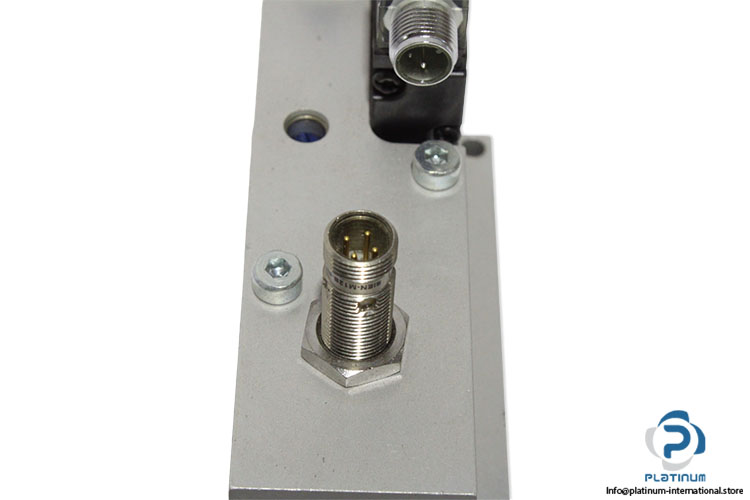

| Attachment 2 | FESTO 150403 INDUCTIVE PROXIMITY SENSOR |
| Inductive Proximity Sensor Manufacturer | FESTO |
| Attachment 2 Type | Inductive Proximity Sensor |

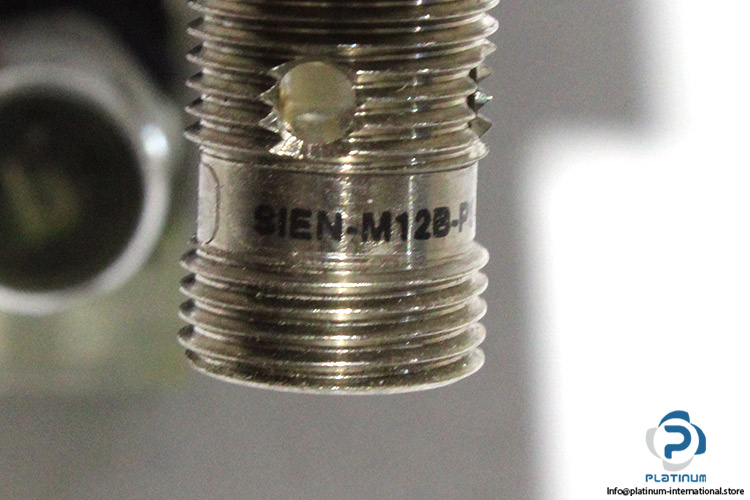

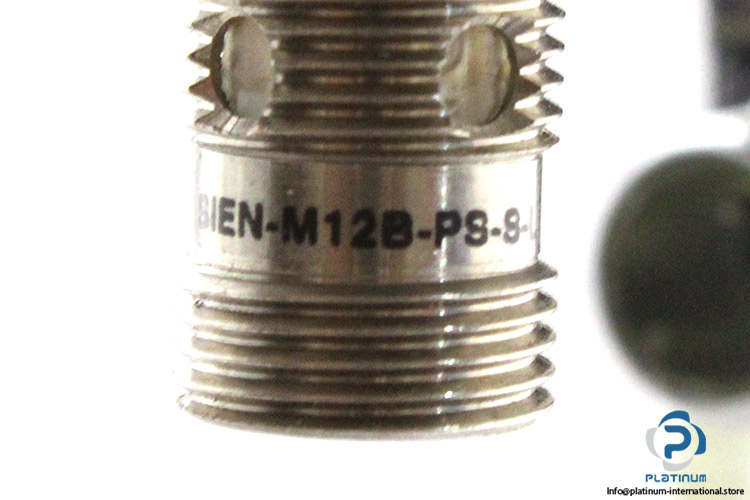

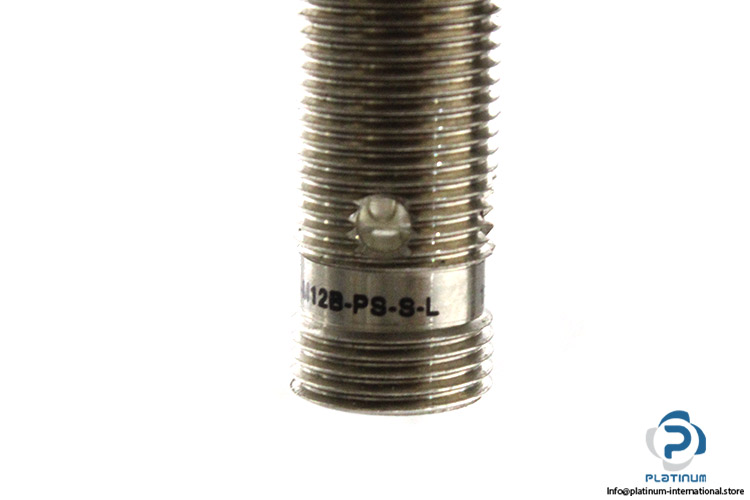

| Inductive Proximity Sensor Model | SIEN-M12B-PS-S-L |
| Inductive Proximity Sensor Part No. | 150403 |
| Inductive Sensor Rated Operating Distance | 2 mm |
| Inductive Sensor Operating Voltage | 10 … 30 V DC |
| Inductive Sensor Output Current | 200 mA |
| Inductive Sensor Switching Frequency | 3000 Hz |
| Inductive Sensor Electrical Design | PNP |
| Inductive Sensor Switching Output | Normally Open |
| Inductive Sensor Connector Type | M12 Connector, 3-Pin |
| Inductive Sensor Protection Class | IP65, IP67 |
| Inductive Sensor Ambient Temperature | -5 … 70 °C |
| Inductive Sensor Diameter, Length | 12 mm, 45 mm |
| Inductive Sensor Material | Brass, PBTP, Nickel Plated |
| Inductive Sensor Mounting | Flush Mountable |
| Inductive Sensor Supplied Items | 2 Lock Nuts |
| Stock Key | JO-004 |
| Condition | New |
| SKU | 1092958 |
| Weight | 1,08 |
