FOX K4 Adjustable Pressure Switch
中古
在庫あり6 単位即納可能
49,99$
ADJUSTABLE PRESSURE SWITCH
FOX K4C NC-type adjustable pressure switch with ¼ inch connection, rated for 48 V AC. Offers long mechanical life, compact design, and 200 cycles/min switching frequency for industrial use.¼48VACAdjustableBodyCarbonconnectionControlFOXFrequencyHighinchIndustrialK4CNCPressureSteelSwitchSwitchingTropicalized
大量在庫
グローバル配送
専門的なサポート
品質保証

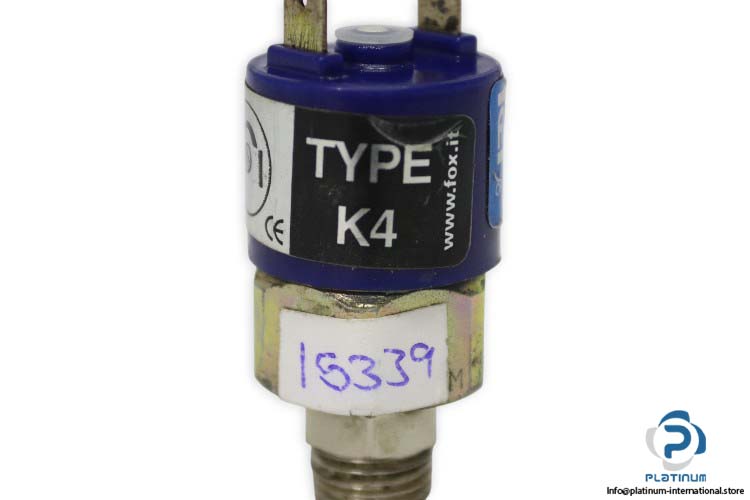

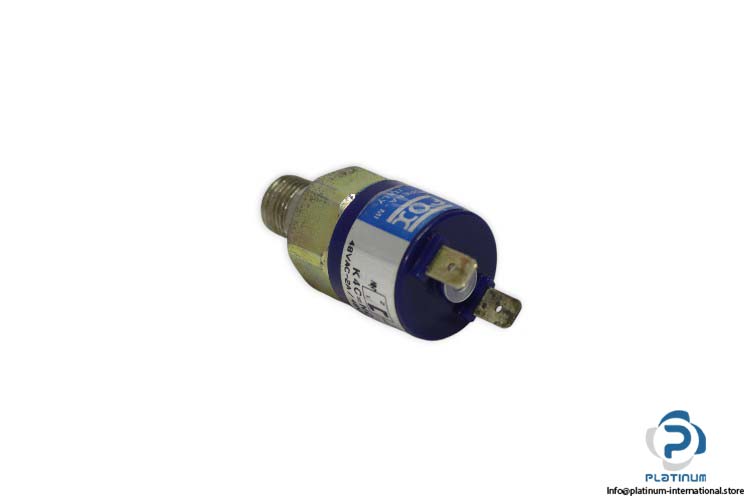

FOX K4C ADJUSTABLE PRESSURE SWITCH
The FOX K4C is a compact and durable adjustable pressure switch designed for industrial pressure monitoring and control. With high switching frequency and excellent mechanical life, this NC-type switch is ideal for demanding environments.
Manufacturer: FOX
Type: Adjustable Pressure Switch
Series: K4

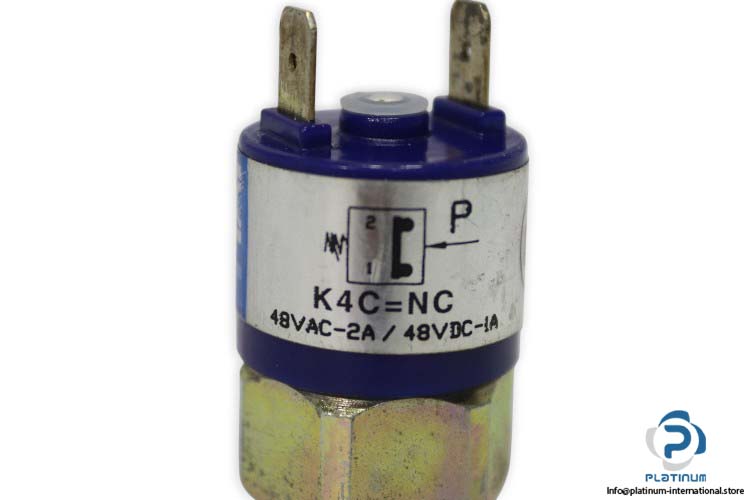

Model: K4C = NC
| Connection | ¼ inch |
| Voltage | 48 V AC, 2A / 48 V AC, 1A |
| Working Temperature | -20°C to +80°C |
| Switching Frequency | 200 cycles/min |
| Maximum Dimensions | NC execution, L 26 mm x H 55 mm |
| Body | 24 mm hexagonal, tropicalized carbon steel |
| Mechanical Life | 10 million cycles at 70 bar (1000 psi) at 20°C |
| Type of Electric Contact | NC |
