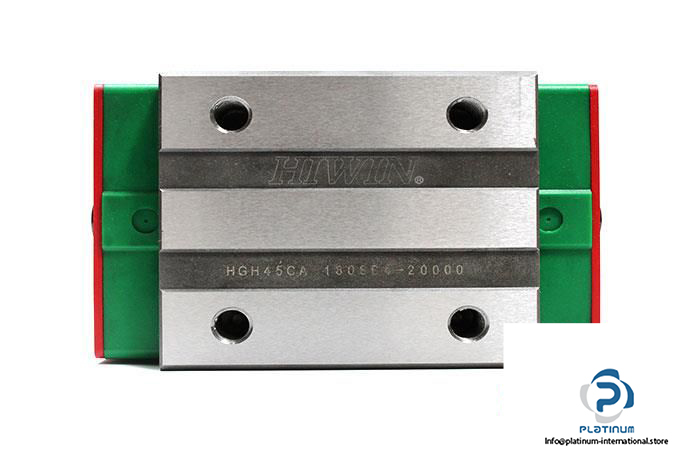

Hiwin HGH45CA Linear Guideway Block
HIWIN HGH45CA 1806E4-20000 LINEAR GUIDEWAY BLOCK
This heavy-load linear guideway block from Hiwin is built for precision, rigidity, and durability. Designed with a square block type and top-mount configuration, it supports high dynamic and static loads, making it suitable for demanding motion systems in industrial automation and machinery.
Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: HGH45CA 1806E4-20000
| Size | 45 mm |
| Block Height | 60.5 mm |
| System Height | 70 mm |
| Block Width (W) | 86 mm |
| Block Length (L) | 139.4 mm |
| Thread Size | M12 × 35 |
| Distances Between Holes | 60, 60 mm |
| Rail Width | 45 mm |
| Rail Height | 38 mm |
| Block Type | Square |
| Load Type | Heavy Load |
| Block Mounting Type | From Top |
| Basic Dynamic Load Rating | 103.8 kN |
| Basic Static Load Rating | 146.7 kN |
