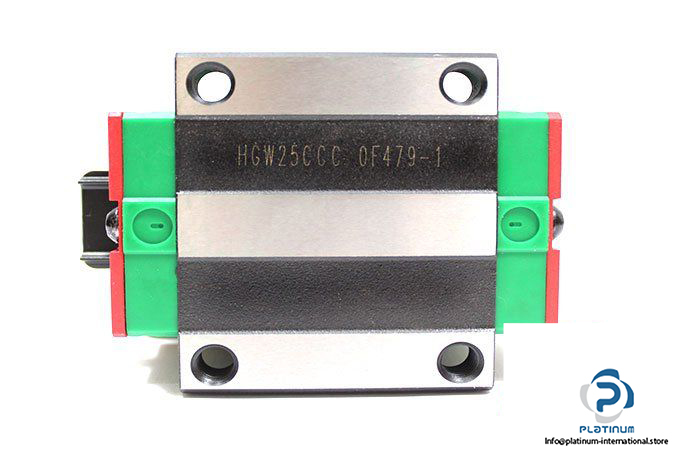

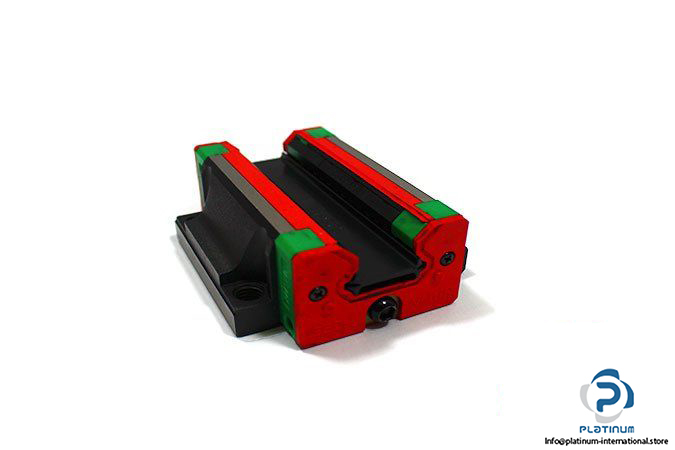

Hiwin HGW25CC Linear Guideway Block
HIWIN HGW 25 CC LINEAR GUIDEWAY BLOCK
The Hiwin HGW 25 CC is a heavy-load flange-type linear guideway block engineered for high-precision linear motion systems. With flexible mounting options and robust load ratings, it ensures superior performance in demanding industrial environments.
Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: HGW 25 CC
Size: 25 mm
| Total Height H | 36 mm |
| Block Width W | 70 mm |
| Block Length L | 84 mm |
| Block Height | 30.5 mm |
| Distances Between Holes | 57, 45 mm |
| Rail Width | 23 mm |
| Rail Height | 22 mm |
| Thread Size | M8 |
| Basic Dynamic Load Rating C | 34.9 kN |
| Basic Static Load Rating C‚ | 52.82 kN |
| Block Type | Flange |
| Load Type | Heavy Load |
| Block Mounting Type | Top or Bottom |
