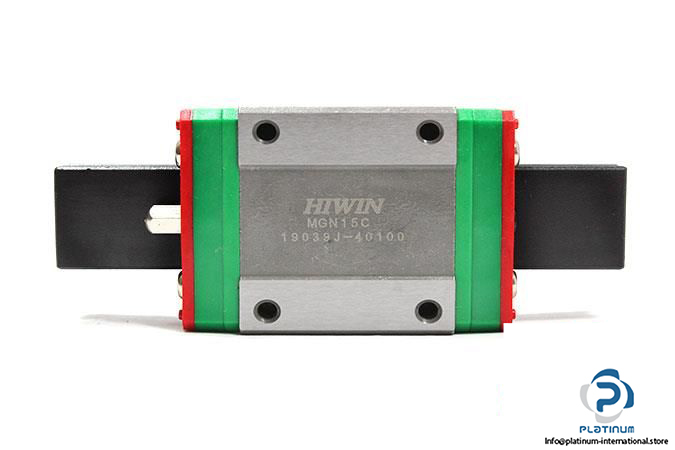

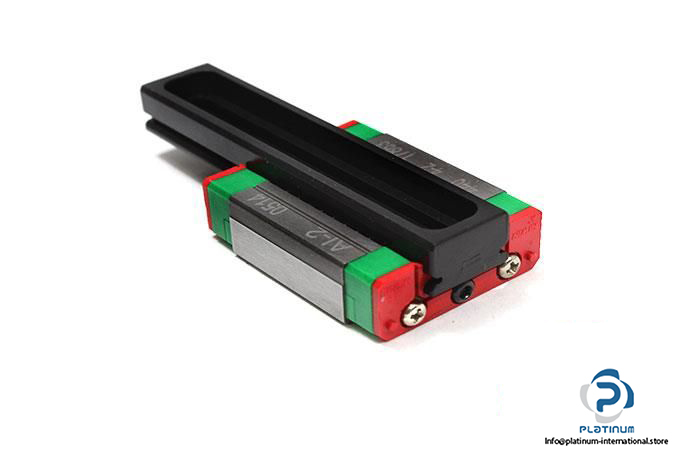

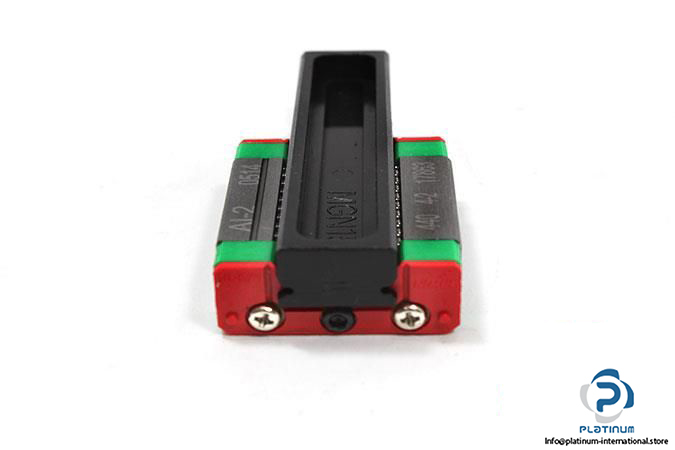

Hiwin MGN15C Linear Guideway Block
HIWIN MGN 15C LINEAR GUIDEWAY BLOCK
This compact and high-precision linear guideway block by Hiwin is engineered for smooth linear motion in automation, CNC, and industrial machinery. With a 15 mm rail width and high load ratings, it ensures reliable performance in tight spaces and demanding conditions.
Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: MGN 15C 19039J-40100
Size: 15 mm
| Block Height | 12 mm |
| System Height | 16 mm |
| Block Width (W) | 32 mm |
| Block Length (L) | 42.1 mm |
| Distance Between Holes | 25 mm, 20 mm |
| Thread Size | M3 x 10 |
| Rail Width | 15 mm |
| Rail Height | 10 mm |
| Block Type | Standard |
| Basic Dynamic Load Rating | 4.61 kN |
| Basic Static Load Rating | 5.59 kN |
