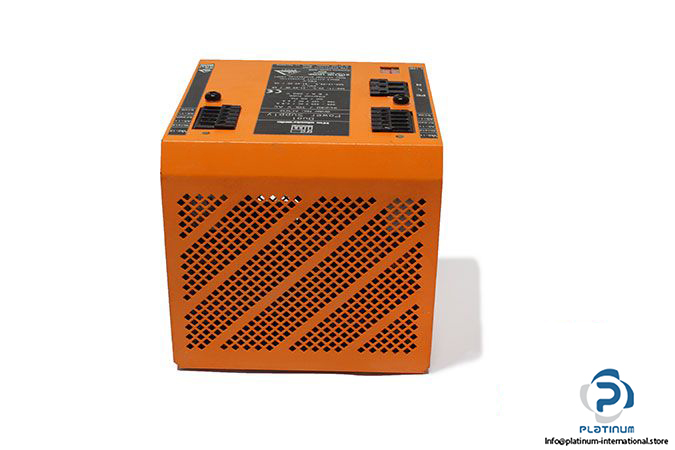

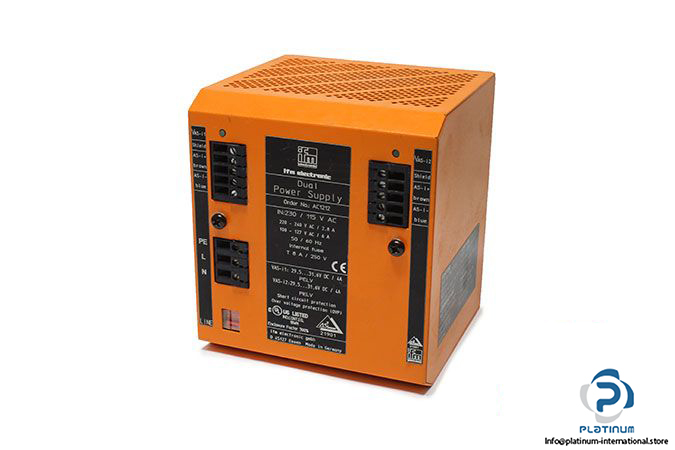

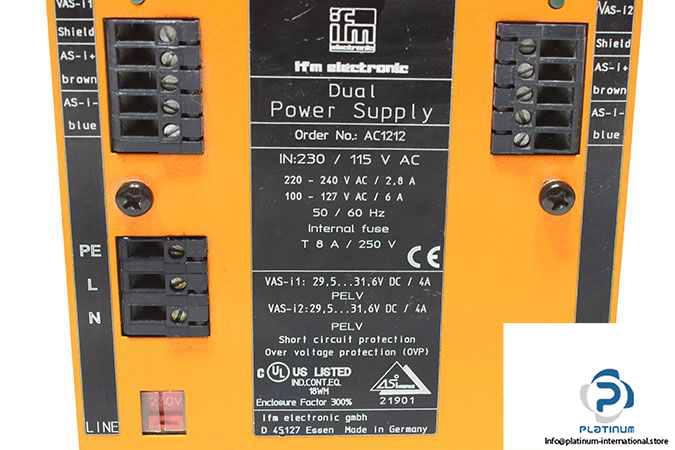

IFM AC1212 AS-Interface Power Supply
新着
ご依頼に応じて対応可能
175,00$
大量在庫
グローバル配送
専門的なサポート
品質保証
Manufacturer: ifm
Type: AS-Interface Power Supply
Model: AC1212
Nominal Voltage: 110 / 230 VAC
Nominal Frequency: 47 … 63 Hz
Input Voltage Range: 88 … 132 / 184 … 264 VAC
Max. Power-on Delay Time: 500 ms
Output Voltage: 29.5 … 31.6 V
Number of Output Circuits: 2
Output Current: 4 A
Max. Residual Ripple: 50 mV
External Input Protection: > 10 A
Fuse: 8 A
Power Loss (Nominal Voltage 230 VAC / 50 Hz): 30 W
Power Loss in Open-Circuit Operation: 4 W
Ambient Temperature: -10…60°C
Protection Class: IP 20
Dimensions: 120 X 135 X 114 mm
Weight: 1.1 kg
