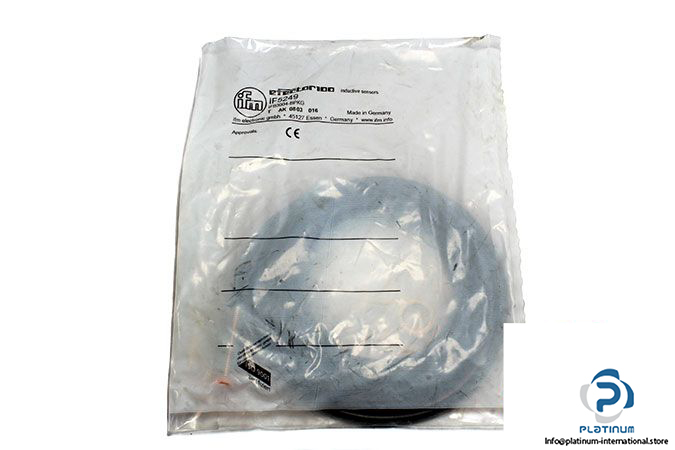

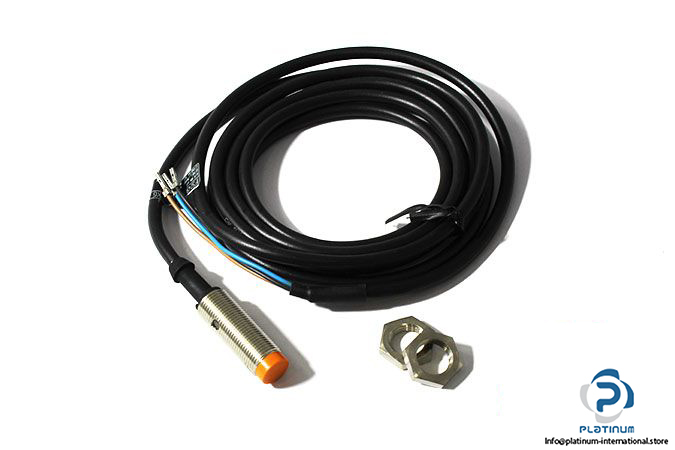

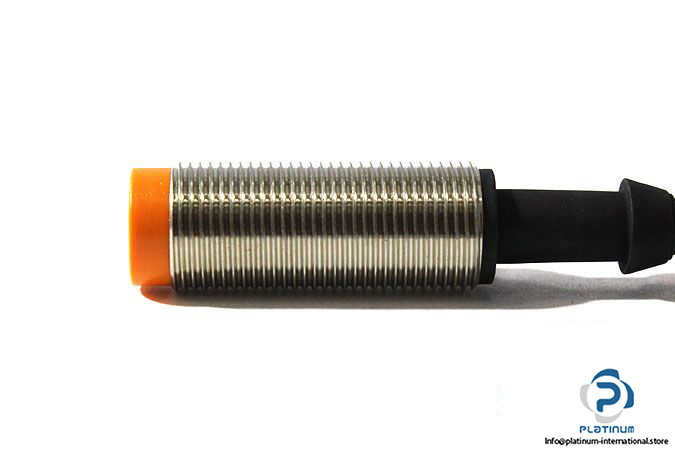

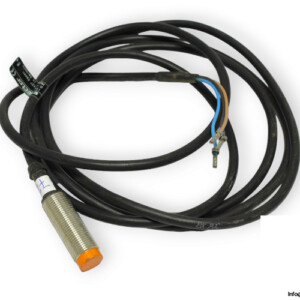

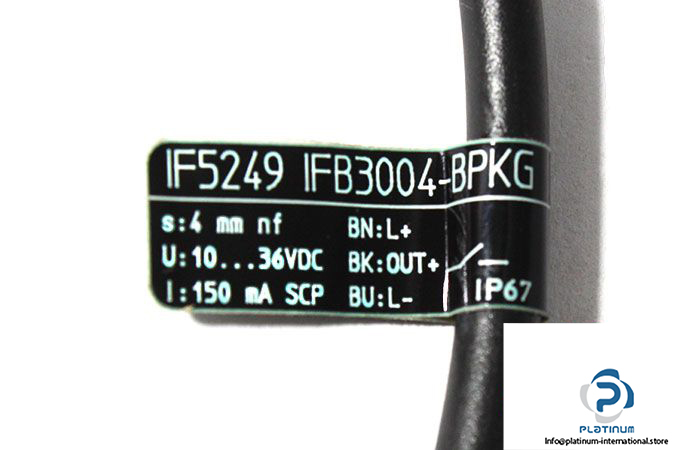

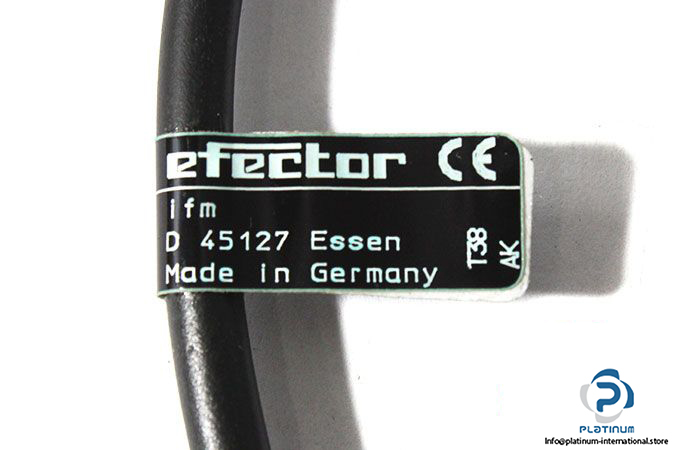

IFM IF5249 Inductive Sensor
Manufacturer: IFM
Type: Inductive Sensor
Model: IF5249
MNR: IFB3004-BPKG
Sensing Range: 4 mm
Operating Distance: 0 … 3.25 mm
Operating Voltage: 10 … 36 V DC
Electrical Design: PNP
Switching Output: Normally open
Current Rating: 150 mA
Switching Frequency: 1500 Hz
Connector type: Cable,3-wires
Dimensions: M12,35 mm
Housing Material: brass white bronze coated; sensing face: PC
Protection Class: IP67
