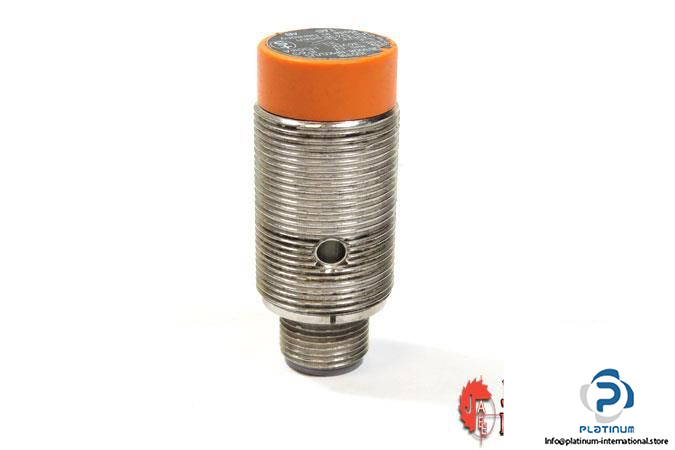

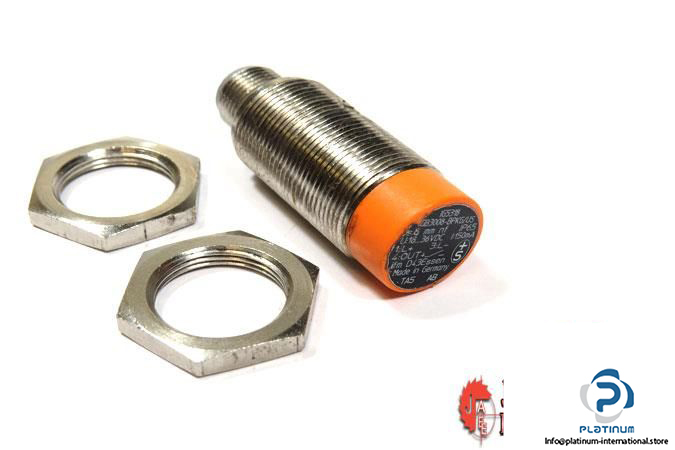

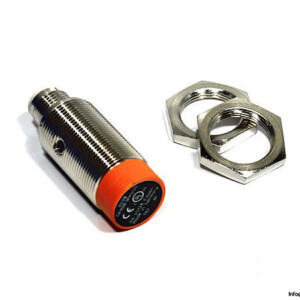

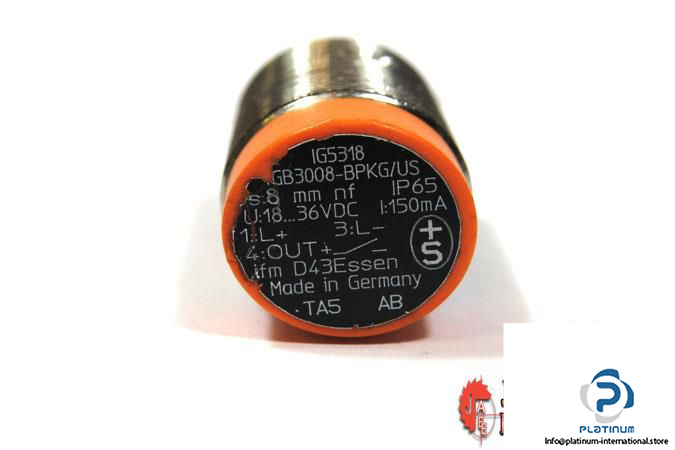

IFM IG5318 Inductive Sensor
中古
Manufacturer: IFM
Type: INDUCTIVE SENSOR
Part No.: IG5318
MRN: IGB3008-BPKG/US
Sensing Range: 8 mm
Real Sensing Range: 8 ± 10 % mm
Operating Distance: 0 … 6.48 mm
Operating Voltage: 10 … 30 V DC
Voltage Drop: 2.5 V DC
Switching output current: 100 mA DC
Current consumption: 10 mA
Switching frequency: 200 Hz DC
Electrical Design: PNP
Output: Normally open

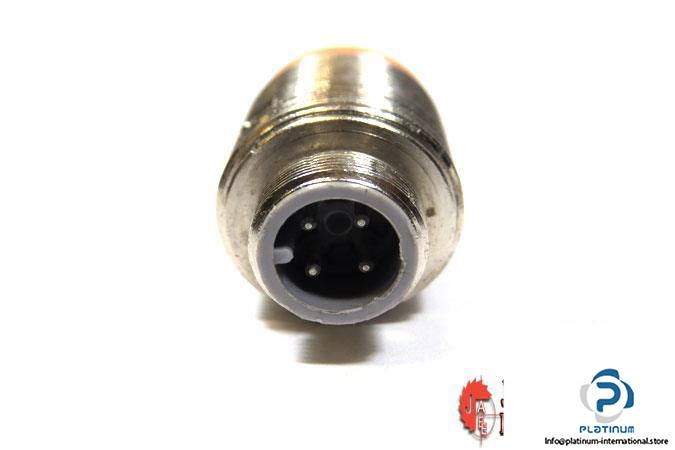

Connector type: M12 Connector, (gold-plated contacts)
Protection Class: II
Enclosure rating: IP67
Housing: Threaded type
Ambient Operating temperature: -25 … 80 °C
Diameter, Housing length: 18, 50 mm
Material: brass white bronze coated; sensing face: PBT orange
Mounting: Non-flush mountable
Weight: 41.7 g
Condition: Used
