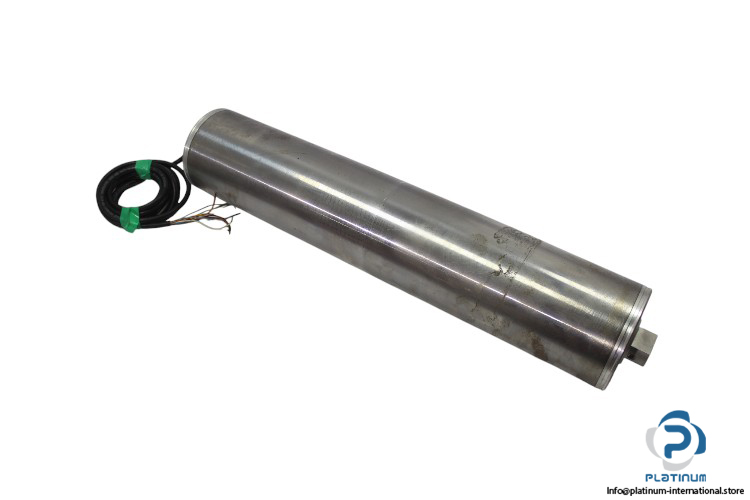

Interroll 63X96 Drum Motor
新着
在庫あり1 ユニット即納可能
1 099,99$
Drum Motor
Interroll 63X96 Drum Motor offers a reliable performance with 0.37 kW power, 0.62/0.74 m/s drum speed, and a 562 mm roller length. It is designed for industrial systems with 230/400 V and 230/460 V voltage options.
大量在庫
グローバル配送
専門的なサポート
品質保証

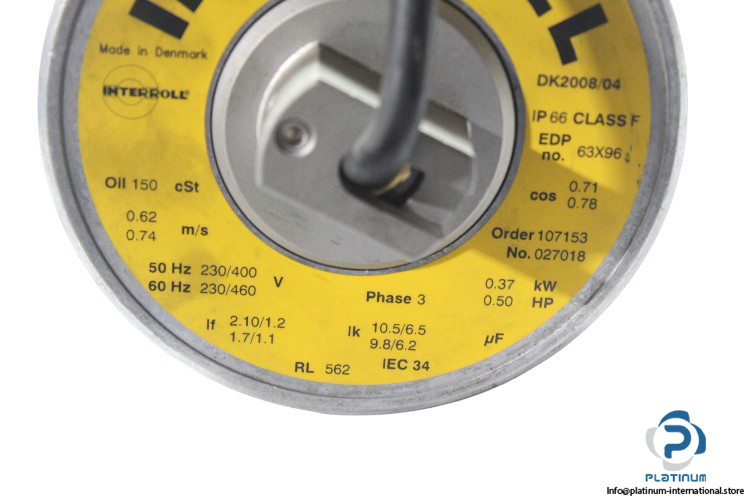

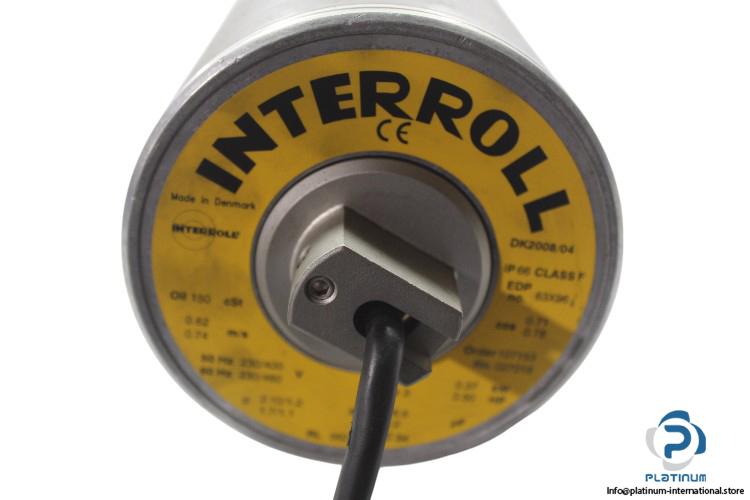

Interroll Drum Motor 63X96
The Interroll Drum Motor 63X96 is designed to provide efficient and reliable performance in conveyor systems. With a range of voltage and current options, this motor offers excellent versatility for various industrial applications.
Manufacturer: Interroll
Type: Drum Motor
Article No.: 63X96
Reference No.: 107153
| Phase | 3 |
| Drum Speed [m/s] | 0.62/0.74 |
| Rated Current [A] | 2.10/1.2, 1.7/1.1 |
| Roller or Tube Length | 562 mm |
| Rated Power [kW/hp] | 0.37/0.50 |
| Frequency [Hz] | 50/60 |
| Rated Voltage at 50Hz [V] | 230/400 |
| Rated Voltage at 60Hz [V] | 230/460 |
| Current Consumption with Blocked Motor [A] | 10.5/6.5, 9.8/6.2 |
| Power Factor | 0.71/0.79 |
| Oil Type | 150 cSt |
| Protection Class [IP] | 66 |
| Insulation Class | F |
