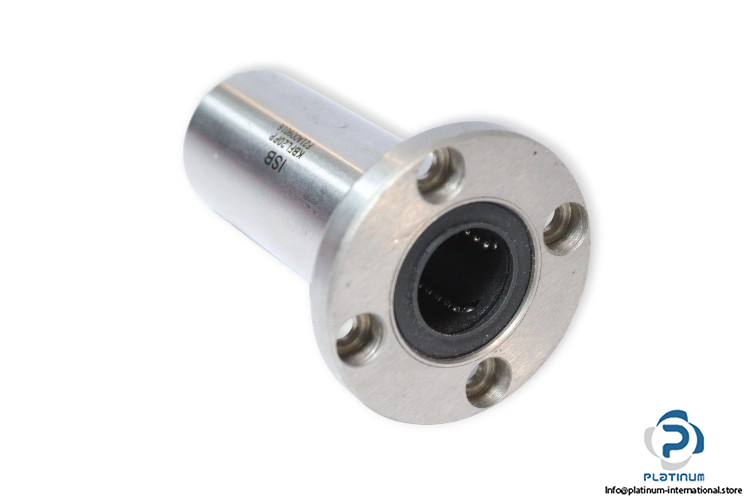

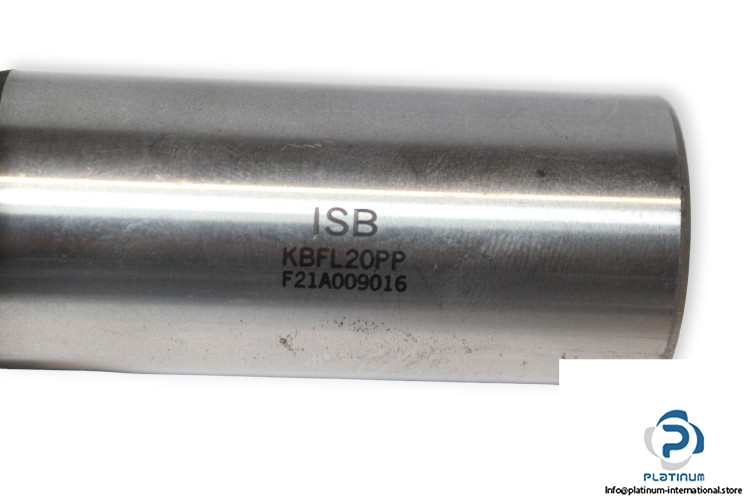

ISB KBFL20PP Linear Ball Bushing
Manufacturer: ISB
Type: Slide bushes, heavy series round flanged – greater length
Model: KBFL20PP
Number of Ball Rows: 5

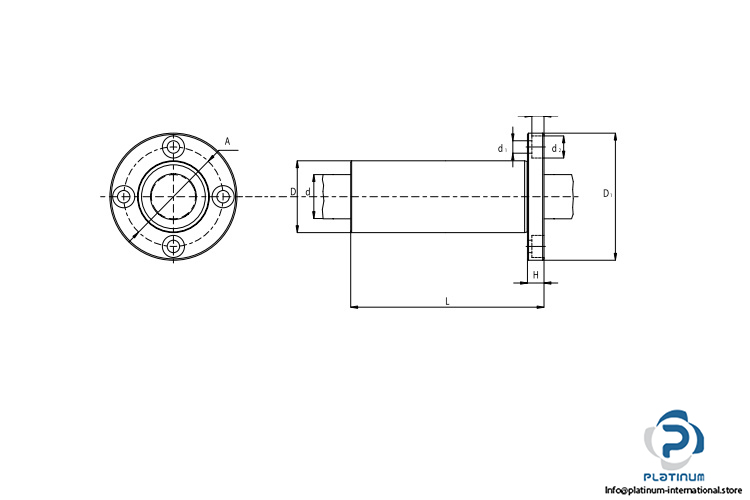

Dimensions
Bore Diameter d: 20 mm
Outer Diameter D: 32 mm
D1: 54 mm
H: 8 mm
A: 43 mm
Length: 80 mm
d1xd2xh: 5.5 x 9.5 x 5.4 mm
basic load rating:
Dynamic Load Rating: 1400 N
Static Load Rating: 2750 N
Sealing: PP, Seals on Both Sides
Cage: Polyamide cage
