Lenze MDSKSRS071-33 Servomotor With Gear
中古
在庫あり1 ユニット即納可能

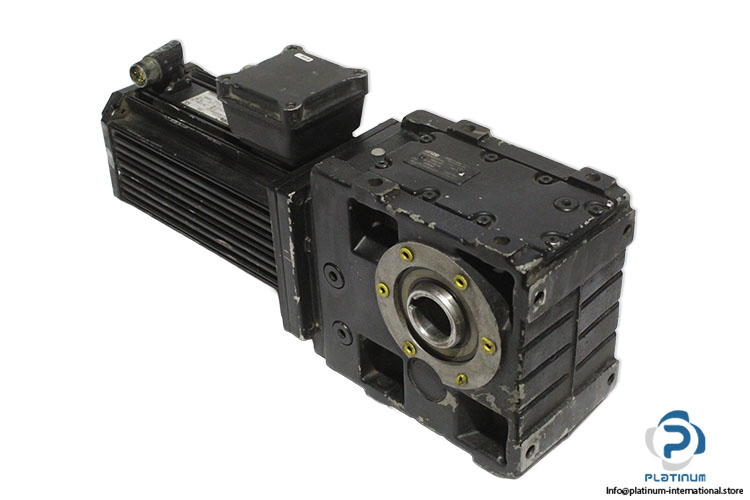

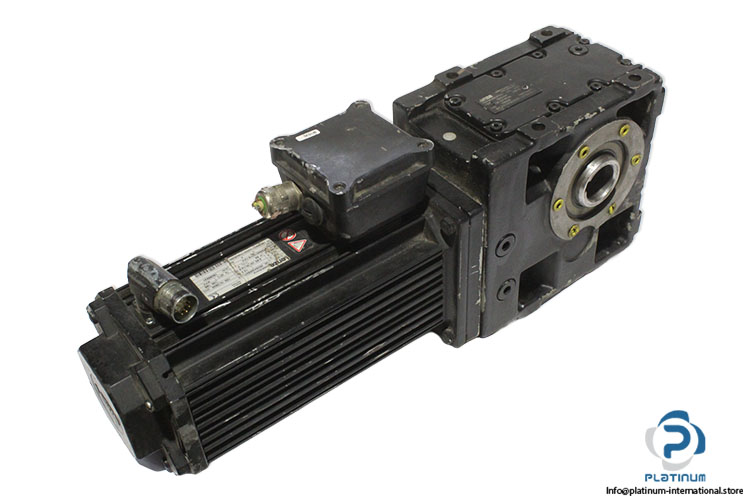

Servomotor with Gear The Lenze MDSKSRS071-33 is a 4.6 kW servomotor with a helical-bevel gearbox, designed for precise motion control and reliable power transmission in industrial automation applications.
大量在庫
グローバル配送
専門的なサポート
品質保証

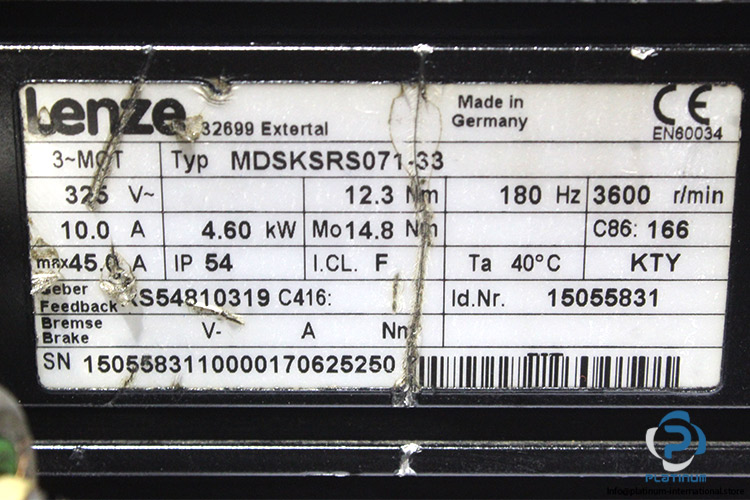

| ID. | 15055831 |
| SN | 1505583110000170625250 |
| Rated Torque [Nm] | 12.3 |
| Stall Torque [Nm] | 14.8 |
| Rated Current [A] | 10 |
| Max. Current [A] | 45.0 |
| Rated Power [kW] | 4.6 |
| Supply Voltage [V] | 325 |
| Frequency [Hz] | 180 |
| Nominal Speed [rpm] | 3600 |
| Ambient Temperature [°C] | 40 |
| Insulation Class | F |
| Protection Class [IP] | 54 |

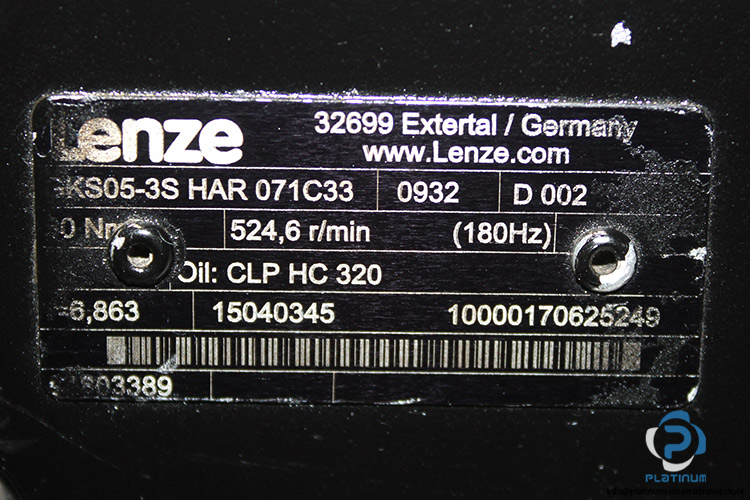

| Attached with | Lenze GKS05-3S HAR 071C33 Helical-Bevel Gearbox |
| Size | 05 |
| Number of Stage | 3 |
| Ratio | 6,863 |
| Motor Speed | 524.6 r/min |
| Rated Frequency | 180 Hz |
| Lubrication | CLP HC 320 |

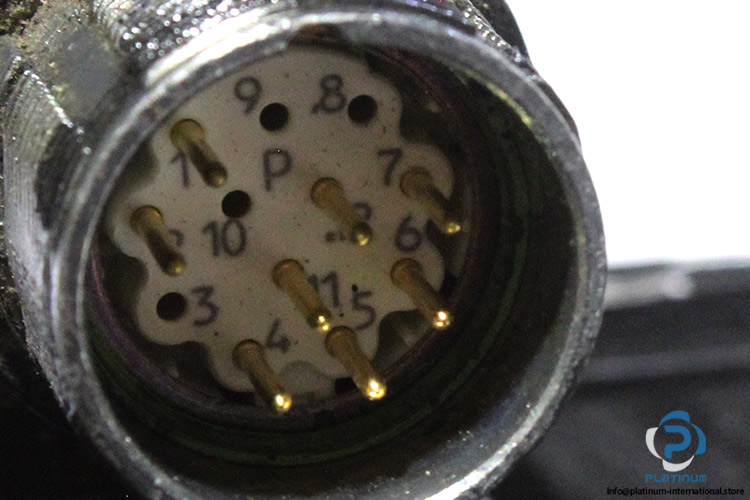

| Connection | Terminal box |
| Stock key | JO-004 |
| Condition | Used |
| SKU | 1100840 |
| Weight | 31,95 |
