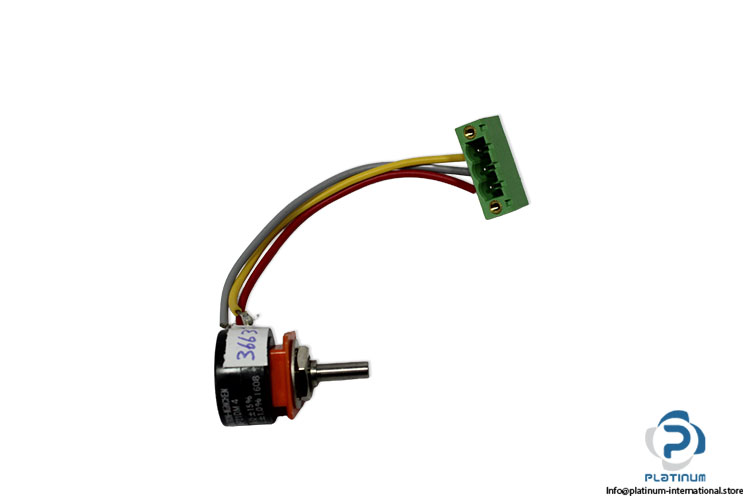

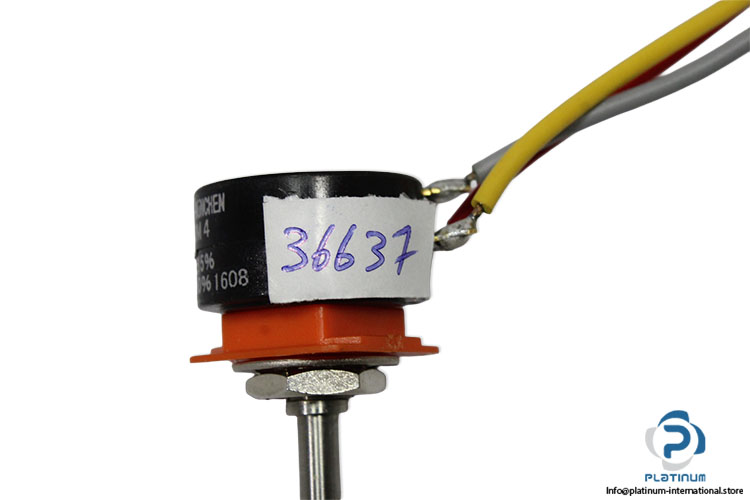

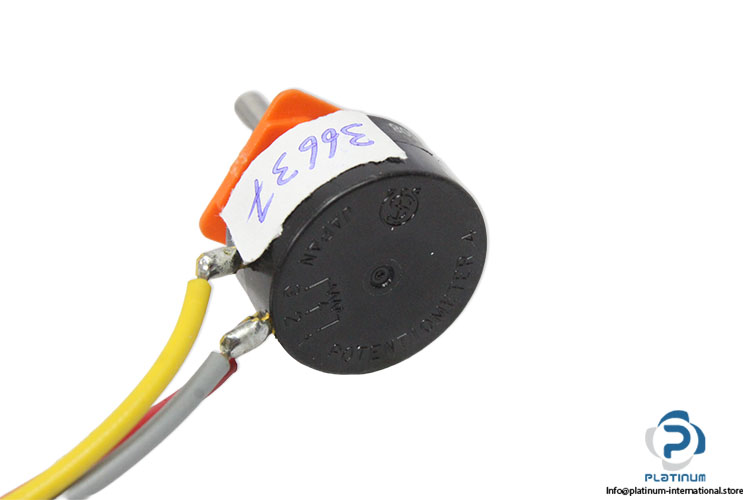

Megatron MP21DM4 Potentiometer
新着
在庫あり1 ユニット即納可能
99,99$

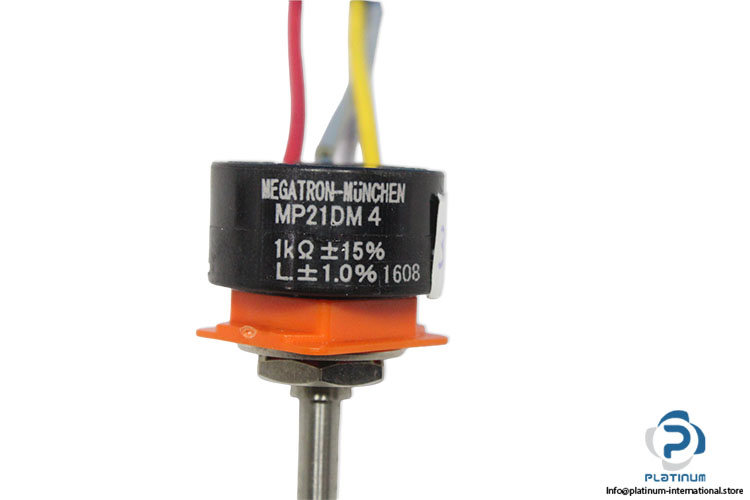

Rotary Potentiometer MEGATRON-MUNCHEN MP21DM 4 rotary potentiometer featuring 1 kOhm resistance, 320° electrical rotation angle, ±1% linearity, and nearly infinite resolution for precise position sensing and control applications.
大量在庫
グローバル配送
専門的なサポート
品質保証
| Series | MP21 |
| Shaft diameter | 6.00 mm |
| Housing diameter | 22 mm |
| Housing depth | min. 12 mm |
| Effective electrical angle of rotation | 320° ±5° |
| Total resistance | 1 kOhm |
| Resistance tolerance | ±15% (±10%) |
| Independent linearity (best straight line) | ±1% |
| Theoretical resolution | Nearly infinite |
| Backlash (Hysteresis) | 0.5° |
| Max. / recommended wiper current 1.) | 10 µA / 2 µA |
| Power rating @ 70°C (0W @ 105°C) | 1 W |
| Insulation Voltage | 500 VAC, 1 min |
| Insulation Resistance | 1000 MOhm @ 500 VDC |
| Max. operational speed | 400 rev. / min. |
| Bearing | Sleeve bearing |
| Operational torque @ ambient temperature | 5 Nmm |
| End stop torque | 60 Ncm |
| Operating temperature range | -55 °C up to +105 °C |
| Stock Key | CON-003 |
| Condition | New |
| SKU | 1099350 |
| Weight | 0,02 |
