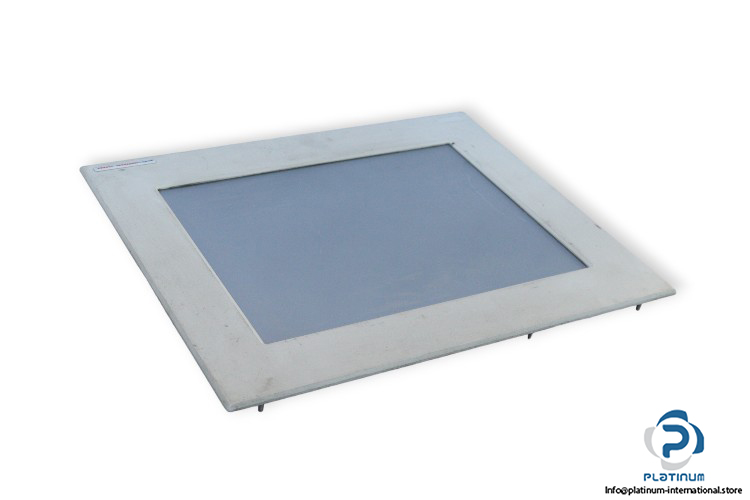

MS-9A61 HMI Panel PC
Type: HMI Panel PC
Model: MS-9A61

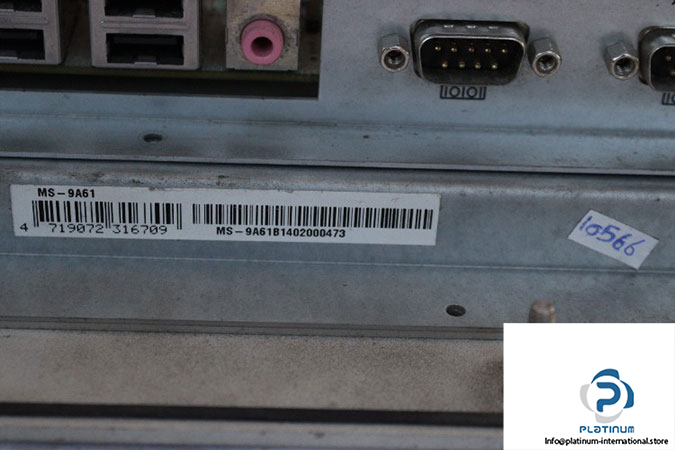

Art No: MS-9A61B1402000473
Power Consumption: 12 V DC

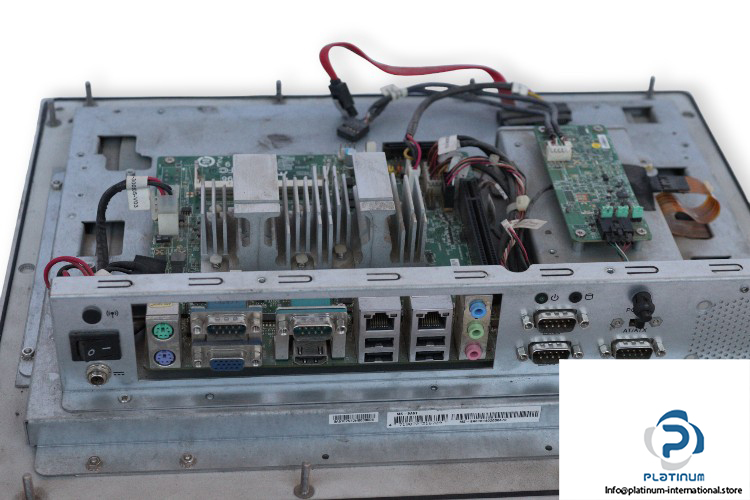

Connection: 2 X RJ-45/ 4 X USB/ 1 X RS-232,422,485/ 3 X RS-232 (0V/5V/12V)/ 1DVI-I
LCD Size: 15
Resolution: 1024 X 768
Brightness: 250
Contrast Ratio: 700:1
Pixel Pitch: (H/V mm): 0.297 X 0.297
CPU Type: Onboard
Chipset: Intel NM10
Max. Capacity: 4 GB
Operating Temperature: 0 … 45 °C (HDD)/ 0 … 50 °C (SSD or mSATA)
Dimension: 366.5 X 74.7 X 229.10 mm
