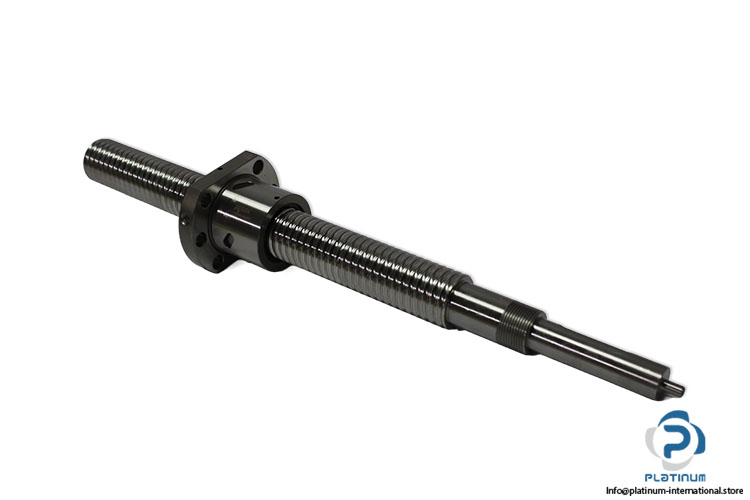

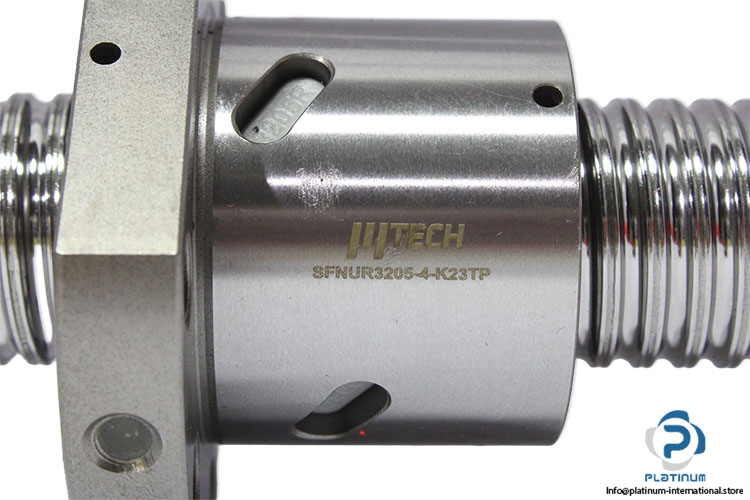

Mtech SFNUR3205-4-K23TP Ball Screw
新着
在庫あり22 単位即納可能
Ball Screw MTECH precision ball screw with a 32 mm nominal diameter, 5 mm lead, and right-hand thread, designed for accurate linear motion in CNC machines, automation equipment, and industrial motion control applications.
大量在庫
グローバル配送
専門的なサポート
品質保証
| Size | 32 x 5R |
| Nominal Diameter dN | 32 mm |
| Lead P | 5 |
| Ball Diameter | 3.17 mm |
| Number of thread starts | 1 |
| Direction of Lead | Right-Hand Thread |

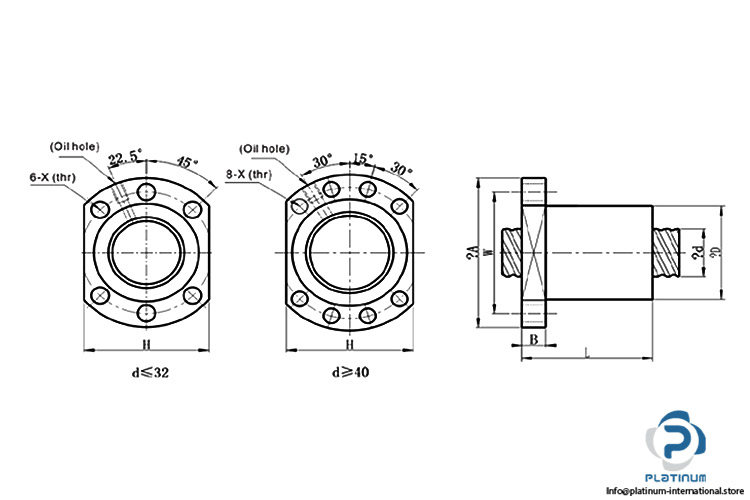

| Flange diameter | 80 mm |
| Nut outer diameter | 50 mm |
| Nut length | 52 mm |
| Flange thickness | 12 mm |
| Cutting flange width | 62 mm |
| Threaded length | 300 mm |
| Total screw length | 420 mm |
| Load rating Dynamic | 1313 N |
| Load rating Static | 3861 N |
| Stock key | JO-004 |
| Condition | New |
| SKU | 1099709 |
| Weight | 2,7 |
