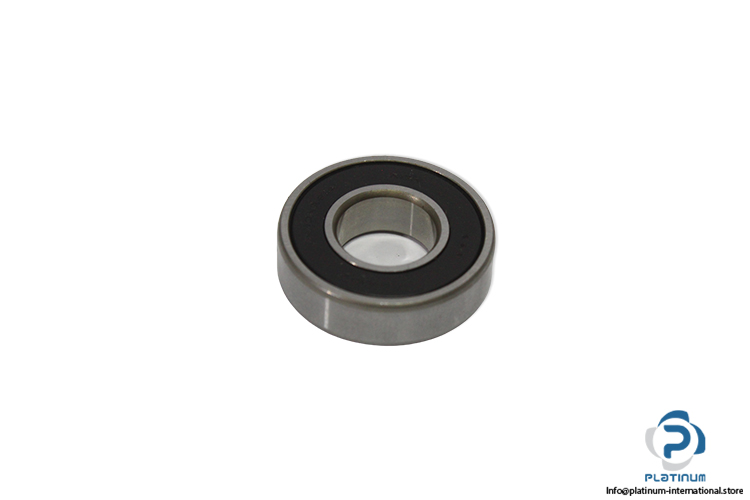

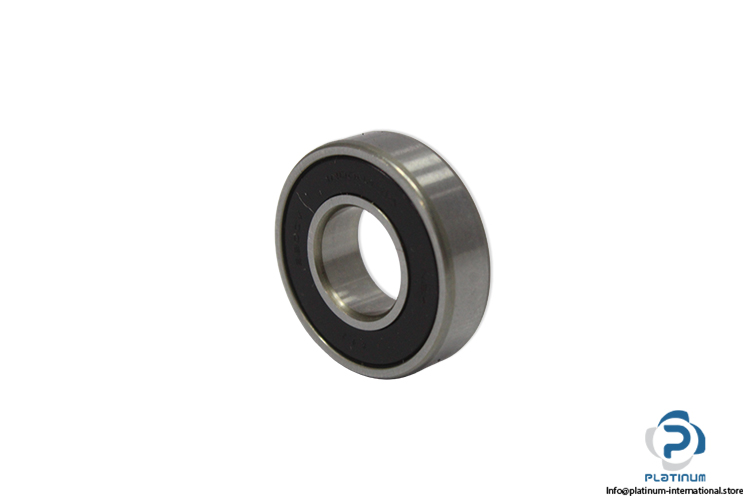

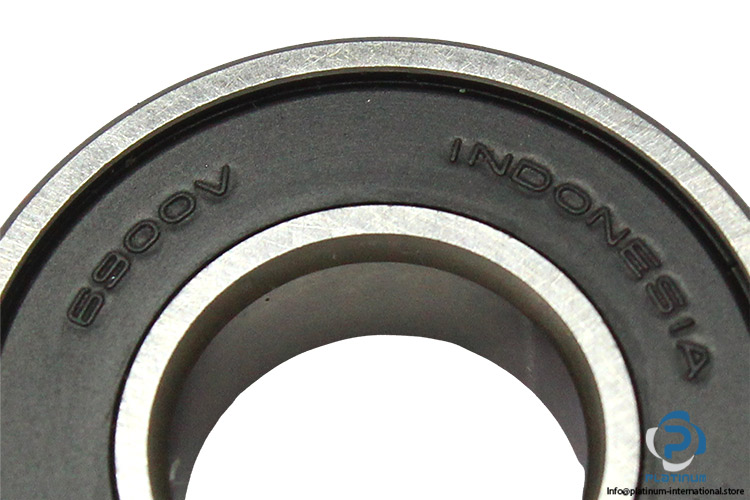

NSK 6900VV Single-ROW Deep Groove Ball Bearing
新着
在庫あり40 単位即納可能
Deep Groove Ball Bearing The NSK 6900VV is a compact single-row deep groove ball bearing designed for smooth, high-speed operation and reliable performance in industrial machinery and precision equipment.
大量在庫
グローバル配送
専門的なサポート
品質保証
| Bore diameter d | 10 mm |
| Outer diameter D | 22 mm |
| Width B | 6 mm |
| Chamfer dimension | 0.3 mm |
| Dynamic Load Capacity C | 2970 N |
| Static Load Capacity C0 | 1270 N |
| Grease lubrication | 32000 min-1 |
| Number of Balls | 9 |
| Ball Diameter | Dw 3.175 mm |
| Diameter of shaft abutment | 12 mm |
| Diameter of shaft abutment, da (max.) | 12.5 mm |
| Diameter of housing abutment | Da (max.) 20 mm |
| Factor | 14 |
| Stock key | CON003 |
| Condition | New |
| SKU | 1101152 |
| Weight | 0,01 |
