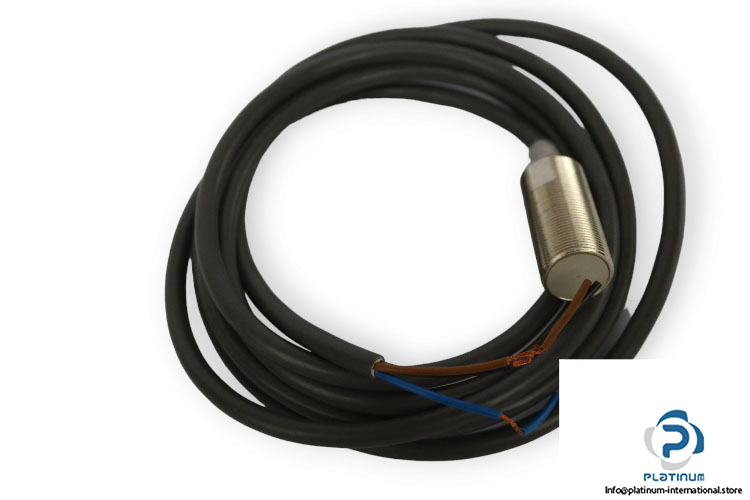

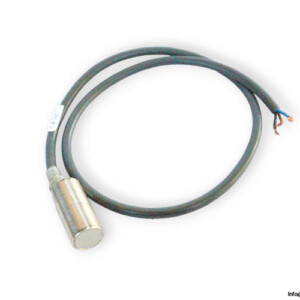

Omron E2EG-X5B2 Cylindrical Proximity Sensor
新着
Manufacture: Omron
Type: Cylindrical Proximity Sensor
Model: E2EGX5B2
Supply voltage range: 12 … 24 V DC
Current consumption: 13 mA max
Sensing Distance: 5 mm
Sensing object: Magnetic metals
Output Configuration: NC
Connection: Connector M18
Shield type: Shielded
Response frequency: 0.4 kHz
Control output (switching capacity): 200 mA max. (300 mA max. at 55″C or less), NPN or PNP open collector
Sensor Material: Case: brass, Sensing surface: PBT
Housing: cylindrical
Output wires: 3 Wires
Operation temperature range: -40 … 70°C
Degree of protection: IEC IP67
Cable Length: 2 m
