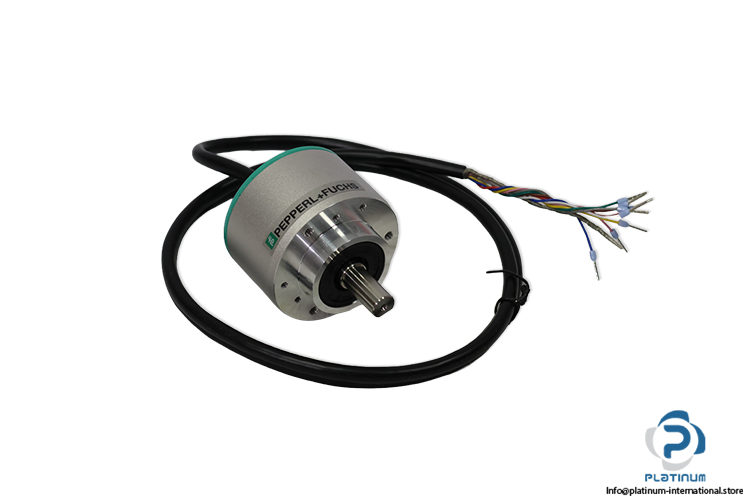

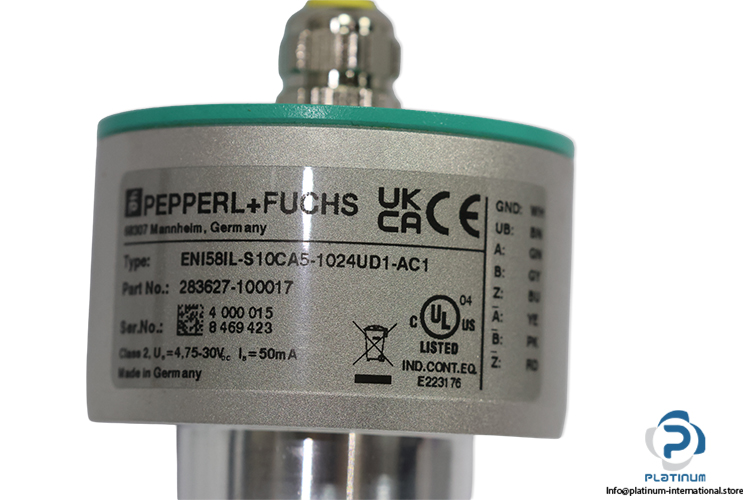

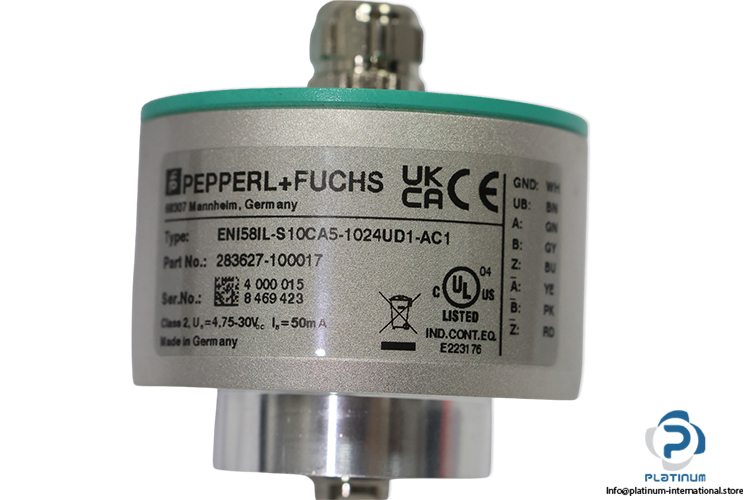

Pepperl+Fuchs ENI58IL-S10CA5-1024UD1-AC1 Incremental Rotary Encoder
新着
在庫あり1 ユニット即納可能
Incremental Rotary Encoder Pepperl+Fuchs ENI58IL-S10CA5-1024UD1-AC1 incremental rotary encoder with 1024 PPR, 10 mm solid shaft, 4.75 … 30 V DC operation, M12 8-pin connection, and push-pull or RS422 output. Features IP65/IP67 protection for reliable industrial position and speed feedback.
大量在庫
グローバル配送
専門的なサポート
品質保証

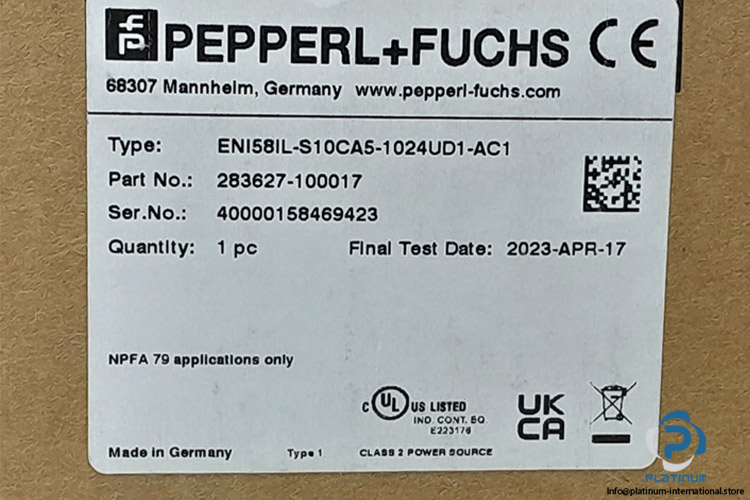

| Part No. | 283627-100017 |
| Ref no | 4 000 015,2 8 469 423 |
| shaft diameter | 10 mm, Solid shaft. |
| pulses per revolution | 1024 (PPR) |

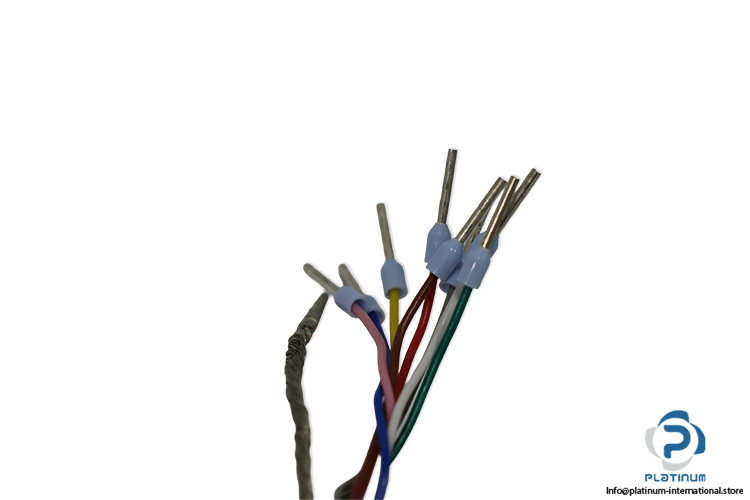

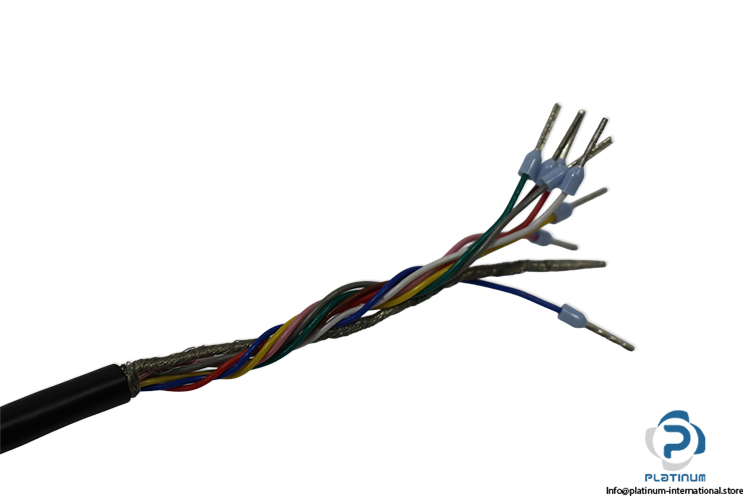

| connection | M12 connector (8-pin) |
| Housing diameter | 58 mm |
| Operating Voltage | 4.75 ... 30 V DC |
| Operating Temperature | -40 °C to +85 °C |
| Protection Degree | IP65 / IP67 |
| Housing Material | Powder-coated aluminum |
| Shaft Material | Stainless steel |
| Stock key | CH001 |
| Condition | New |
| SKU | 1101402 |
| Weight | 0,38 |
