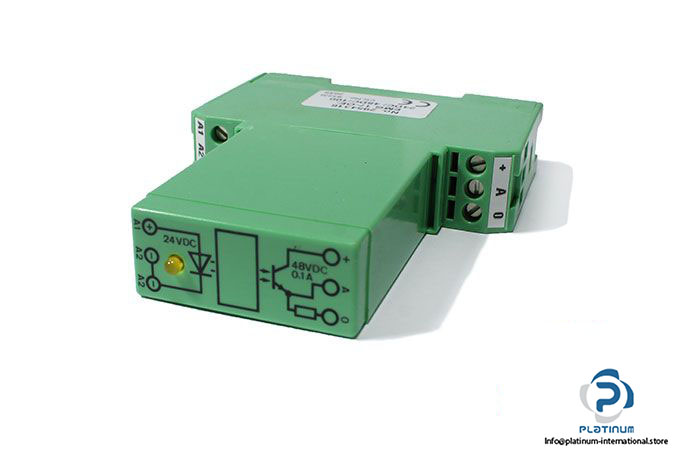

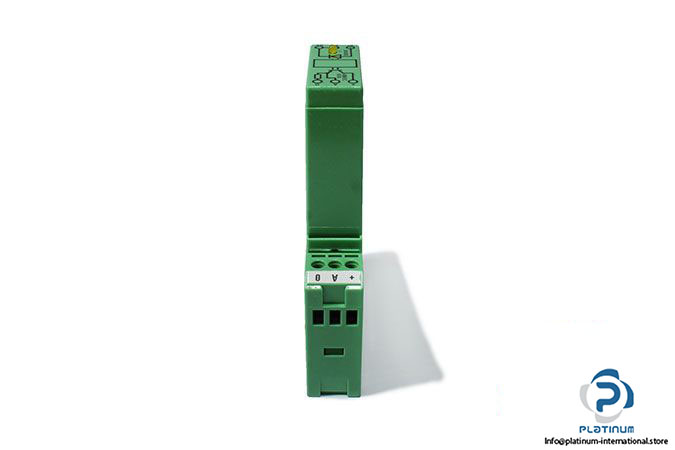

Phoenix Contact EMG 17-OE- 24DC/ 48DC/100 – 2954316 Solid-State Relay Module
新着
在庫あり2 単位即納可能
29,99$
SOLID-STATE RELAY MODULE
Phoenix Contact EMG 17-OE-24DC/48DC/100 solid-state relay module with 24 VDC input, 48 VDC output, 100 mA current, surge and reverse polarity protection, and compact 75 × 17.5 × 102 mm design.10017-OE-24DC/48DC/10024v295431648VAutomationCompactContactEMGIndustrialInputmAModuleOutputPhoenixRelaysolid-state
大量在庫
グローバル配送
専門的なサポート
品質保証
Phoenix Contact EMG 17-OE-24DC/48DC/100 Solid-State Relay Module
The Phoenix Contact EMG 17-OE-24DC/48DC/100 is a compact and reliable solid-state relay module designed for industrial automation systems. With robust input and output ranges, reverse polarity and surge protection, and a slim modular design, it ensures dependable performance in demanding environments.
Manufacturer: Phoenix Contact
Type: Solid-State Relay Module

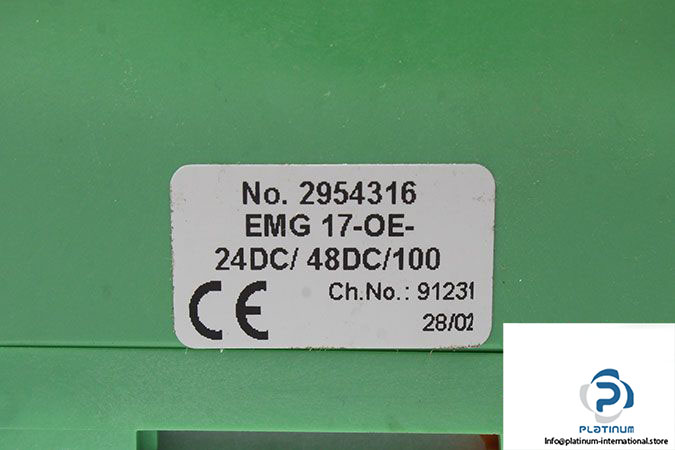

Model: EMG 17-OE-24DC/48DC/100 “ 2954316
Part No.: 2954316
Input
Output
General
| Nominal Input Voltage | 24 VDC |
| Typical Input Current | 8 mA |
| Input Voltage Range | 21.6 / 26.4 VDC |
| Connection Method | Screw connection |
| Stripping Length | 8 mm |
| Output Nominal Voltage | 48 VDC |
| Output Voltage Range | 4 / 48 VDC |
| Limiting Continuous Current | 100 mA |
| Voltage Drop at Max Current | 1.5 V |
| Type of Protection | Reverse polarity protection, Surge protection |
| Screw Thread | M3 |
| Pollution Degree | 2 |
| Ambient Temperature (Operation) | -20 / 60 °C |
| Dimensions | 75 x 17.5 x 102 mm |
