Pizzato FR 569 Adjustable Glass- Fiber ROD Lever Position Switch
中古
在庫あり1 ユニット即納可能
Position Switch
PIZZATO FR series position switch with snap-action contacts and adjustable glass-fiber rod lever actuator, suitable for industrial automation and control applications.
大量在庫
グローバル配送
専門的なサポート
品質保証

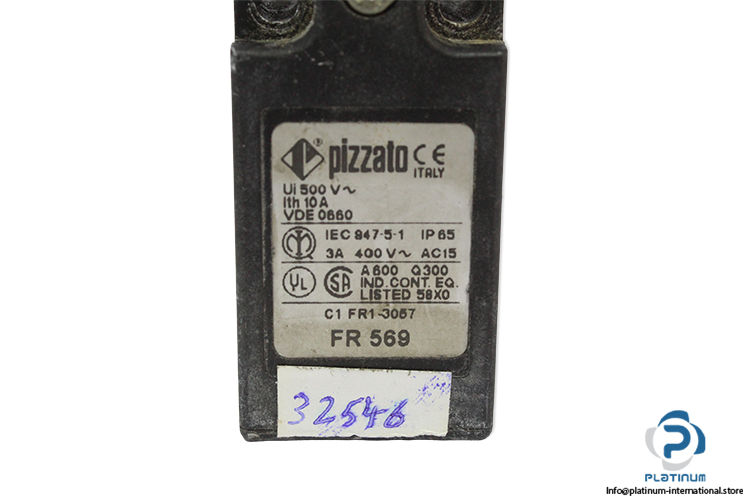

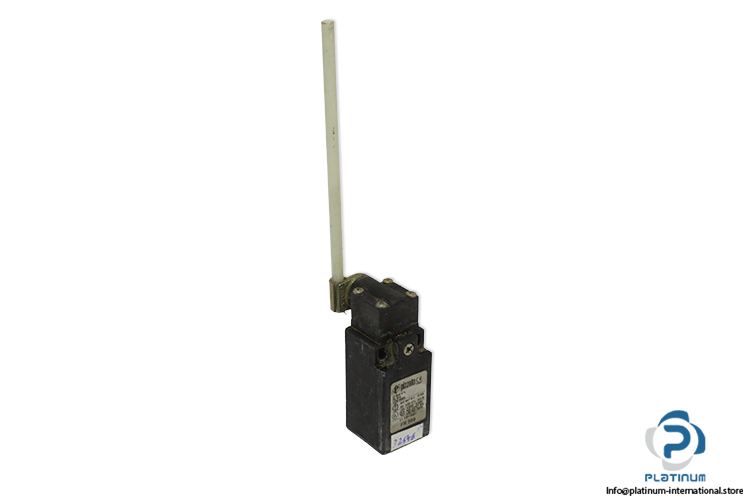

PIZZATO FR 569 Position Switch
The PIZZATO FR569 position switch from the FR series is designed for precise position detection in industrial automation and control applications. It features a snap-action contact system and an adjustable glass-fiber rod lever actuator, ensuring reliable switching performance and long operational life.
Manufacturer: PIZZATO
Type: Position Switch
Model: FR 569
Alternative Model: C1 FR1-3057
Series: FR
| Rated Voltage | 400 V AC |
| Rated Current | 3 A |
| Rated Insulation Voltage (Ui) | 500 V AC |
| Rated Thermal Current (Ith) | 10 A |
| Frequency | 50 / 60 Hz |
| Contact Configuration | 1 NO + 1 NC, Snap Action (B5) |
| Housing Material | Technopolymer |
| Actuator Type | Adjustable Glass-Fiber Rod Lever |
| Rod Diameter | 6 mm |
| Rod Length | 200 mm |
| Protection Class | IP65 |
| Operating Temperature | -25 / 80 °C |
| Dimensions | 259.5 x 30.8 x 30.8 mm |
