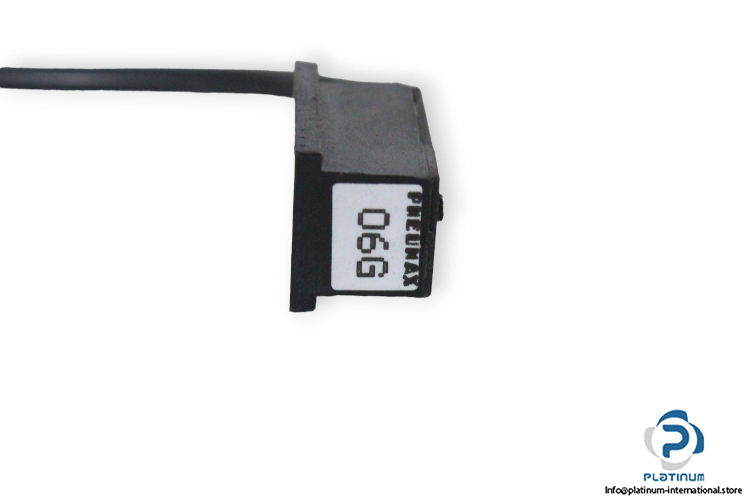

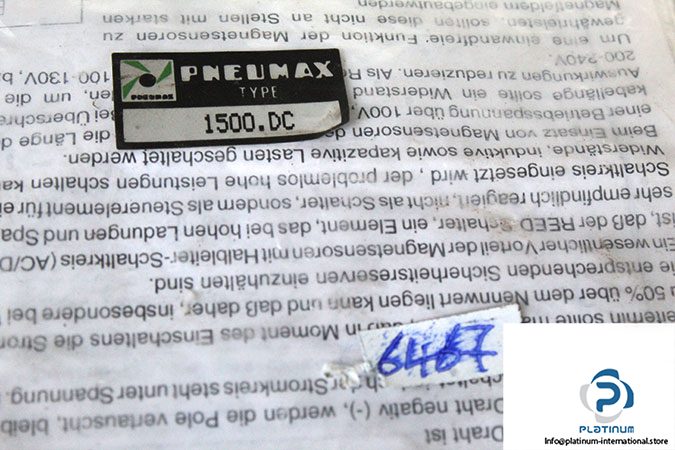

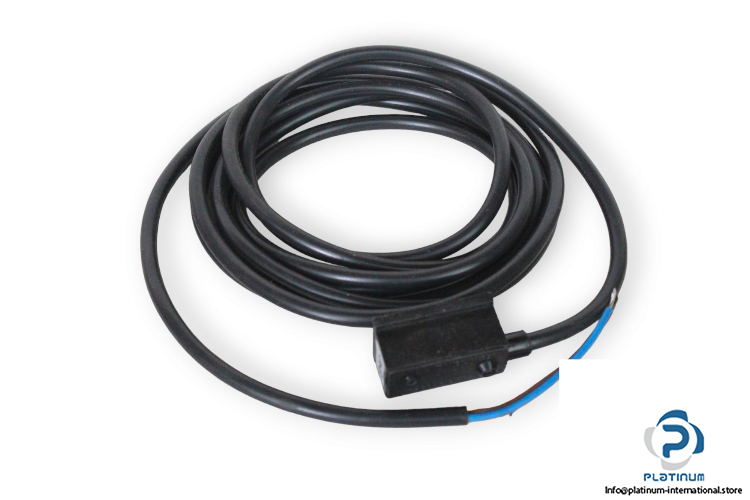

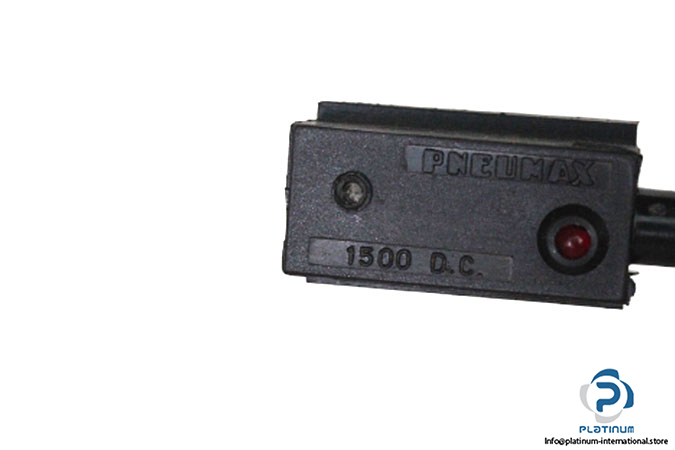

Pneumax 1500 D.C Magnetic Sensor
Manufacturer: PNEUMAX
Type: Magnetic Sensor
Model: 1500 D.C
Part No.: 06G
Uses: for Cylinders and Microcylinders
Voltage Range: 12…30 VDC
Maximum Current: 1.5 A
Maximum Permanent Power: 32 W
Connecting Time: 2 ms
Disconnecting Time: 1 ms
Repetition of Intervention Point: ± 0,1 mm
Cable Section: 2×0,35 mm²
Protection Class: IP65
Working Temperature: -20 … 50°C
Connection: Cable 2 Wire
Housing: PBT
