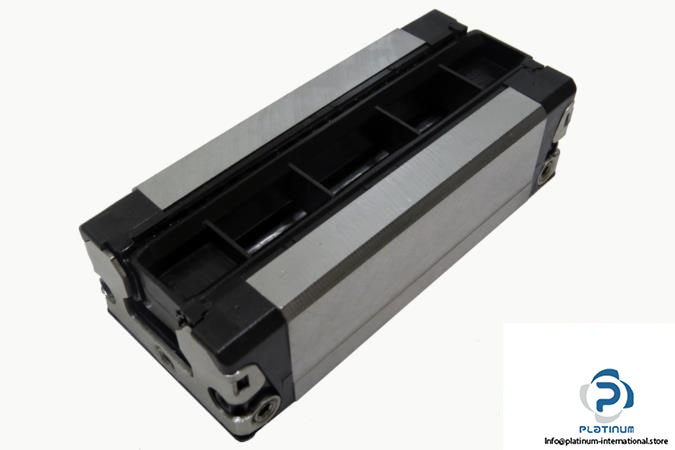

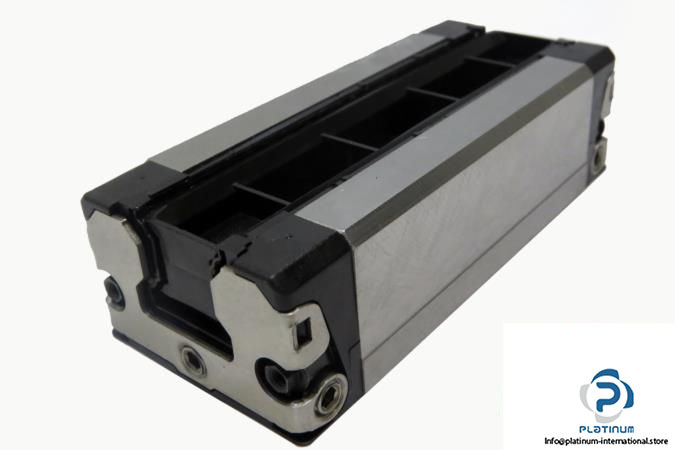

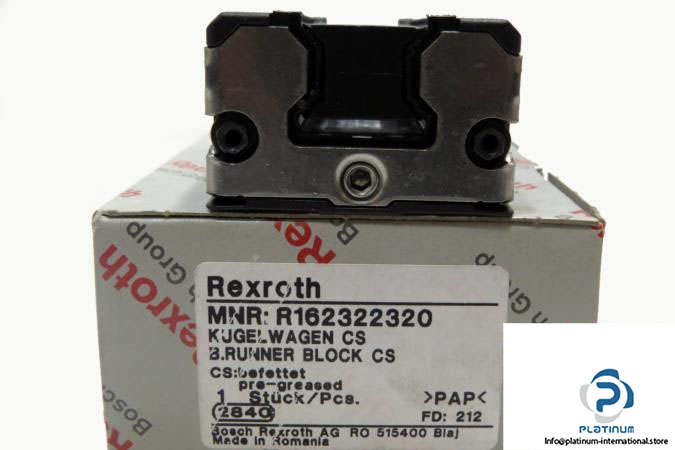

Rexroth R162322320 Runner Block

Manufacturer: REXROTH
Type: Ball Runner Block SLS
MNR:  R1623 223 20

Size: 25 mm
Format: SLS – slimline, long, standard height
Material (profiled rail systems): Carbon steel
Maximum Acceleration Travel a_max: 500 m/s²
Maximum Permissible Speed v_max: 5 m/s
Dynamic Load Capacity C: 37300 N
Static Load Capacity C₀ : 52500 N
Dynamic Torsional Moment Load Capacity M_t: 530 Nm
Mt0: 750 Nm
Dynamic longitudinal moment load capacity ML: 530 Nm
Static longitudinal moment load capacity ML0: 740 Nm
Accuracy Class: H – Highly accurate
Preload Class: C2 – Average preload
Dimensions
Width (A): 48 mm
Length (B): 107.9 mm
Height of system(H): 36 mm
Height of block (H₁): 29.9 mm
E1: 35 mm
E2: 50 mm
Admissible Operating Temperature: -10 °C … +80 °C
