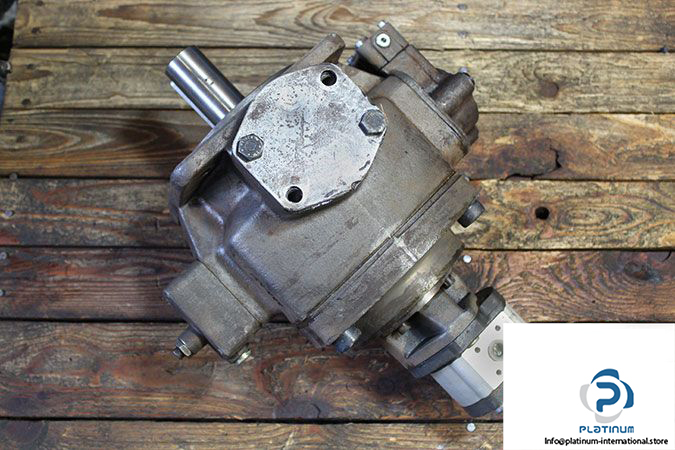

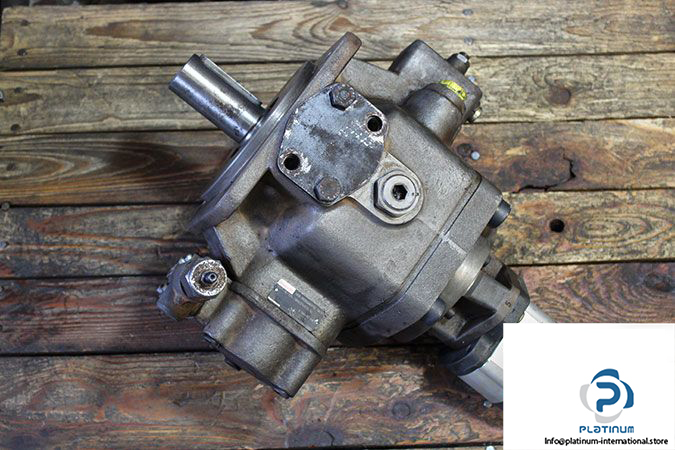

Rexroth R900506809 Variable Vane Pump

Manufacturer: Rexroth

Type: Variable vane pump

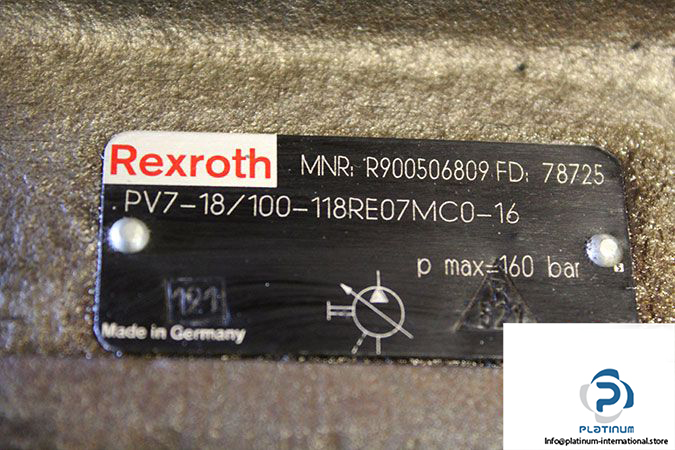

Model: PV7-18/100-118RE07MC0-16

MNR: R900506809

Size: 118

Displacement: 118 cm³

Direction of Rotation: Clockwise

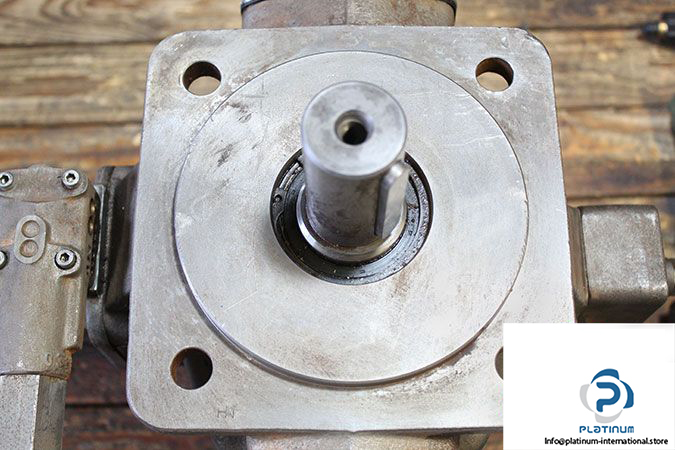

Shaft Diameter:  40 mm

Input power: 51.5 KW

Operating pressure: 160 bar

Speed Range: 900 …. 1800 min^–1

Flow Rate at 1450 rpm: 171 l/min

Torque: 680 N.m

Viscosity Range: 16 ….  1600 mm²/s

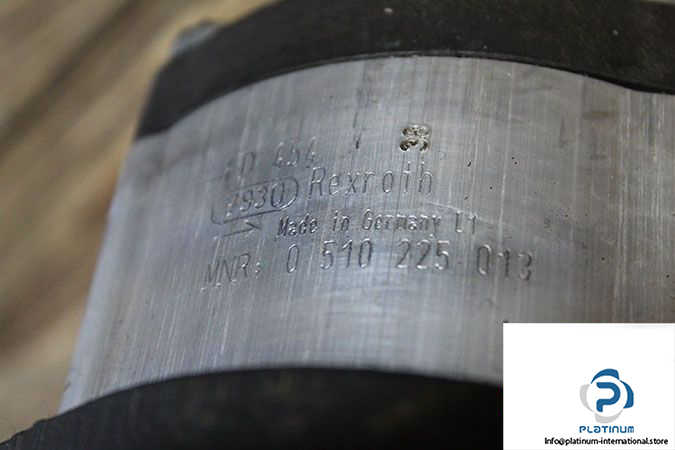

Attachment: REXROTH 0 510 225 013 EXTERNAL GEAR PUMP

Manufacturer: Rexroth

Type: External Gear Pump

Model: 0510225013



size: 4

Displacement: 4 cm³

Direction of Rotation: Clockwise

Max Continuous pressure: 280 bar

Max Speed: 400 min^–1

Flow Rate at 1450 rpm: 5.78 l/m

Weight: 62.8 Kg
