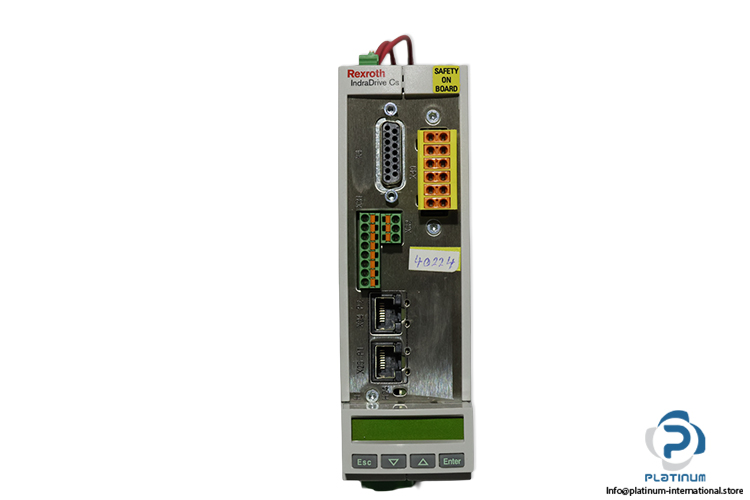

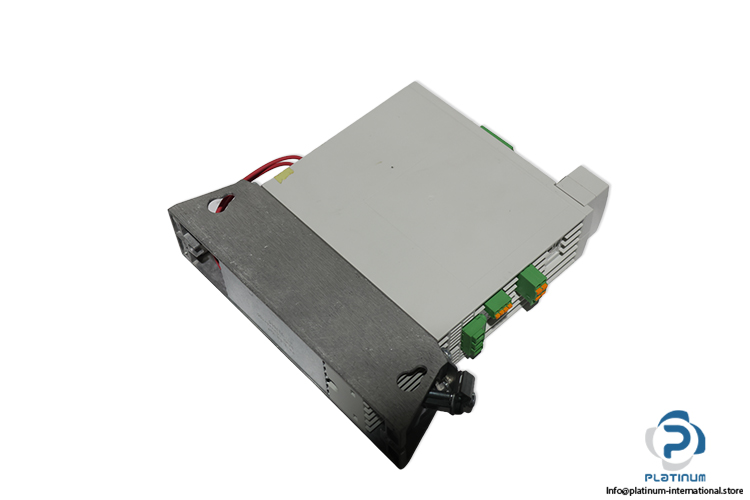

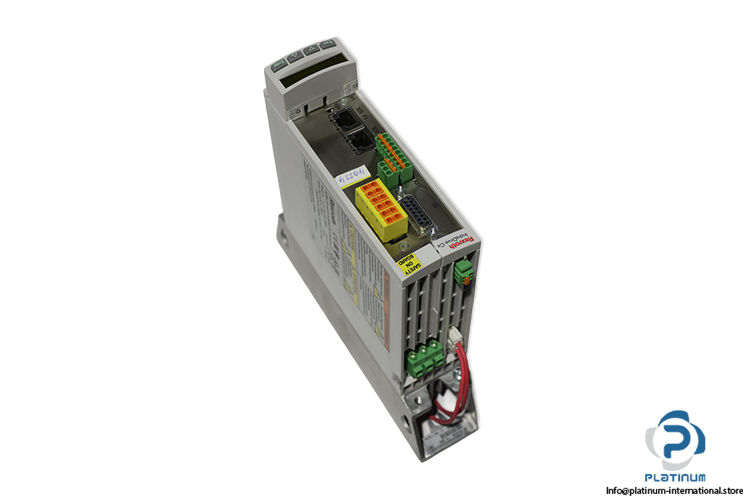

Rexroth R911331624 Servo Drive With Control Panel(Fd 20W06)
新着
在庫あり1 ユニット即納可能
Servo Drive with Control Panel REXROTH IndraDrive Cs servo drive with control panel, multi-encoder interface, 110-230 V AC input, and IP20 protection for industrial automation and motion control applications.
大量在庫
グローバル配送
専門的なサポート
品質保証

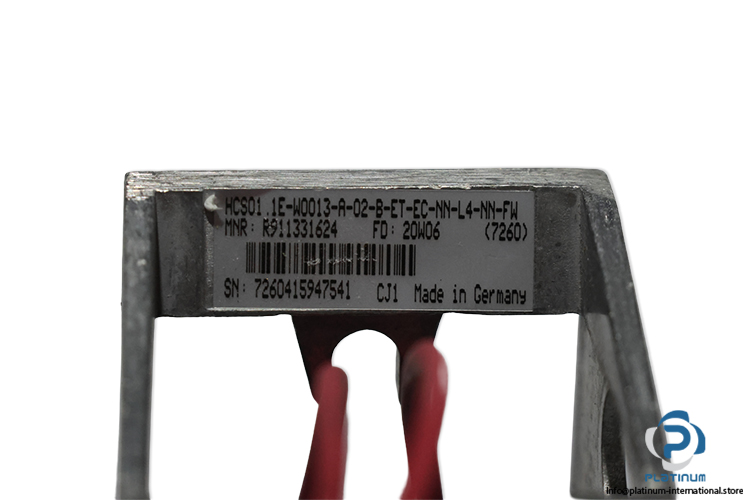

| MNR | R911331624 |
| Serial No. | 7260415947541 |
| FD | 20W06 |

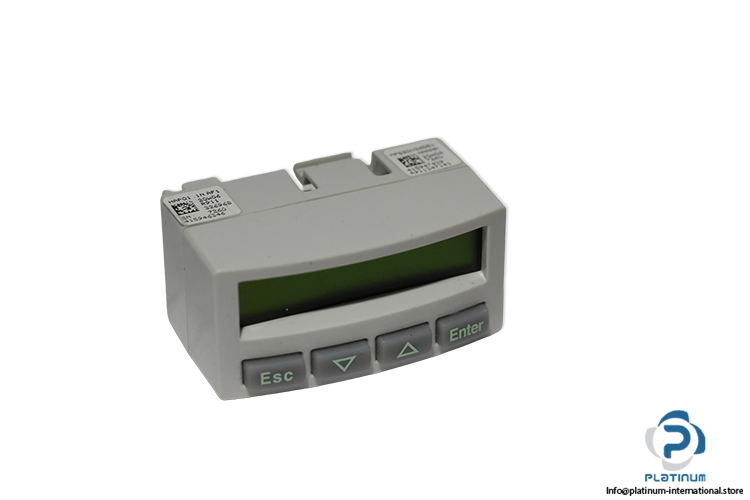

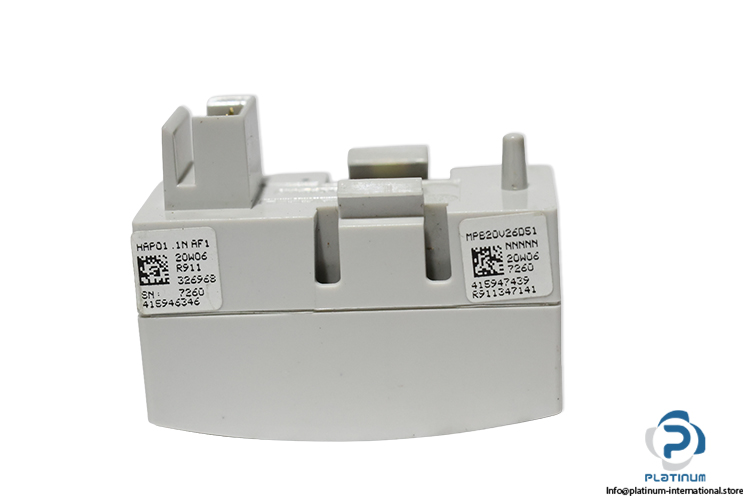

| Control Panel No. | HAP01 .1N AF 1/ R911 326968 / MPB20V26D51 / 415947439 / R911347141 |
| Series | IndraDrive Cs |

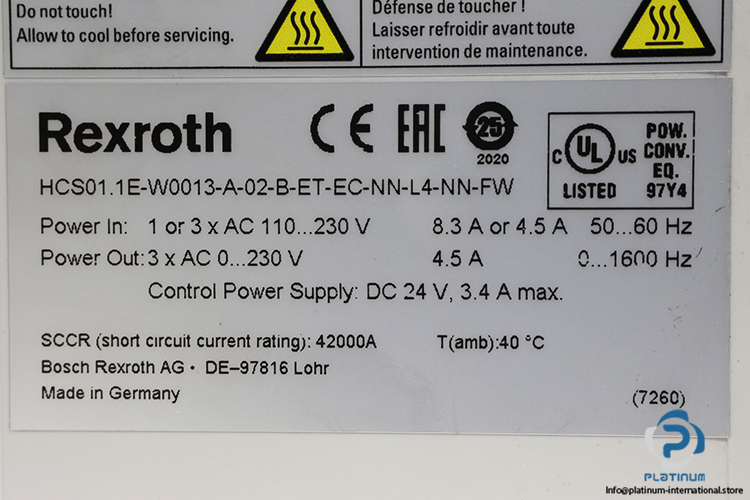

| Input Voltage | 110 ... 230 V AC/1 or 3-phase |
| Input frequency | 50/60 Hz |
| Input Current | 8.3 A or 4.5 A |
| Control voltage | 24 V DC |
| Control current | max. 3.4 A |
| Output Voltage | 0-230 V AC/3-phase |
| Output frequency | 0-1600 Hz |
| Output Current | 4.5 A |
| Short Circuit Current | 42000 A |
| Compliance | cULus,CE, EAC Certified |
| Interface encoder | Multi-encoder interface |
| Ambient Temperature | 0-40°C |
| Cooling type | internal air cooling |
| International protection code | IP20 |
| Stock key | CON003 |
| Condition | New |
| SKU | 1101414 |
| Weight | 1,24 |
