Ropex RES-407/230VAC Temperature Controller
中古
ご依頼に応じて対応可能
588,88$
調節可能な温度範囲（200°Cから500°C）、0から10 V DCのアナログ入力および出力、IP20保護を備えたRopex温度コントローラーRES407/230VAC。産業用に設計されています。
200°C24500°CAnalogAuxiliaryControlControllerdcHousingIndustrialInputIP20OutputPolycarbonateProtectionRopexTemperaturetoVvoltage
大量在庫
グローバル配送
専門的なサポート
品質保証

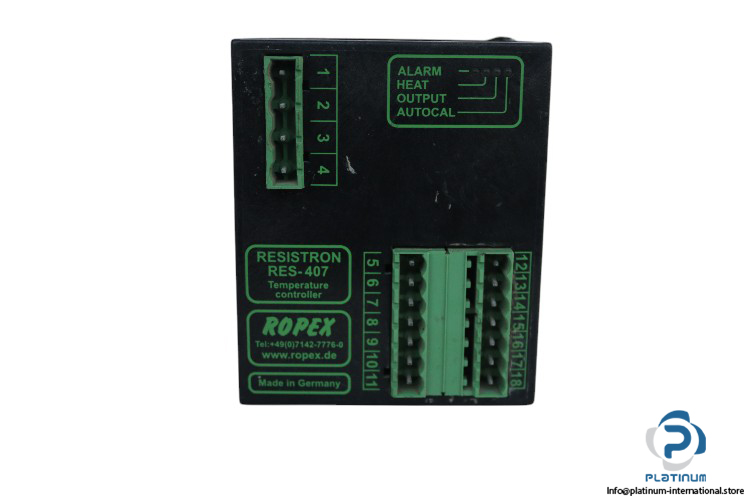

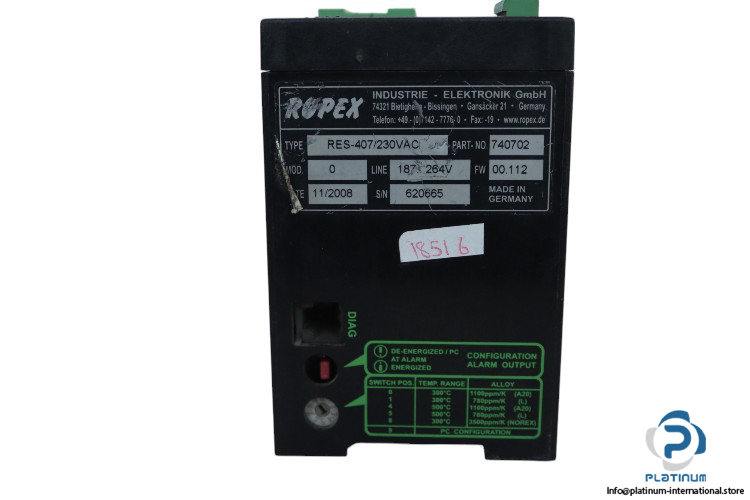

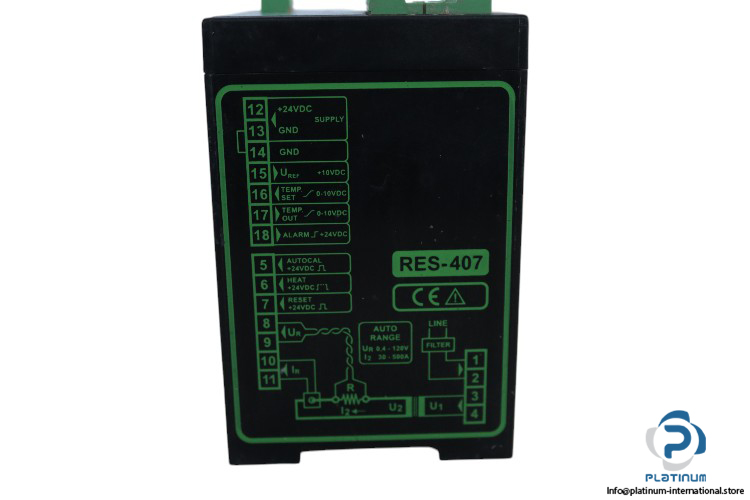

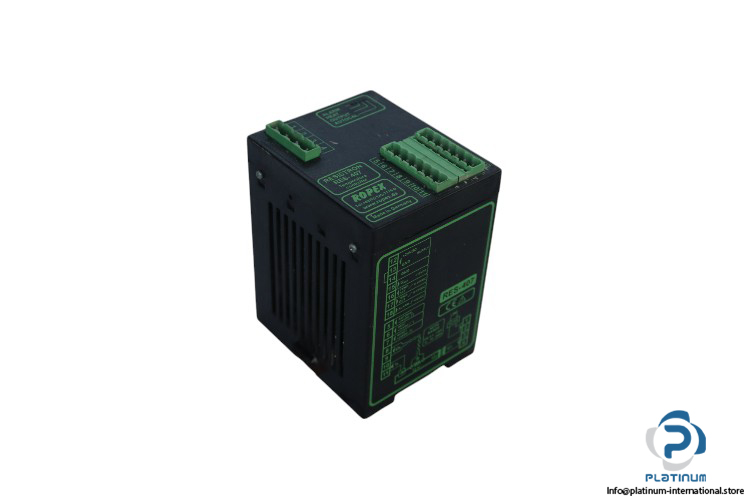

Ropex Temperature Controller RES407/230VAC
Ropex Temperature Controller RES407/230VAC is a reliable and precise temperature controller designed to operate within a wide range of temperatures. Ideal for various industrial applications, it offers flexible input and output options and operates with a high degree of protection.
- Manufacturer: Ropex
- Type: Temperature Controller
- Model: RES407/230VAC
- Part No.: 740702
- Series: RESISTRON
Technical Data:
- Line Voltage: 230 V AC (187 to 264 V AC)
- Power Dissipation: max. 20 W
- Line Frequency: 47 to 63 Hz
- Auxiliary Voltage: 24 V DC
- Temperature Range: 200°C, 300°C, 400°C or 500°C
- Temperature Coefficient: 400 to 4000 ppm
- Analog Input:
- Voltage: 0 to 10 V DC
- Current max: 5 mA
- Analog Output:
- Voltage: 0 to 10 V DC
- Current max: 5 mA
- Digital Logic Levels:
- Low Voltage: 0 to 2 V DC
- High Voltage: 12 to 30 VDC (max. current input 6 mA)
- Alarm Output:
- Voltage max: 3 V
- Current max: 40 mA, 200 mA
- Ambient Temperature: 5 to 45°C
- Degree of Protection: IP20
- Housing Material: Plastic, polycarbonate
- Dimensions: 90 x 75 x 135 mm
