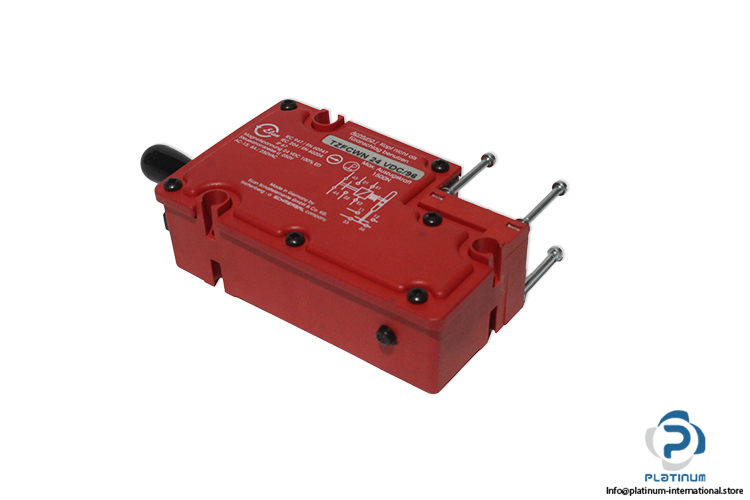

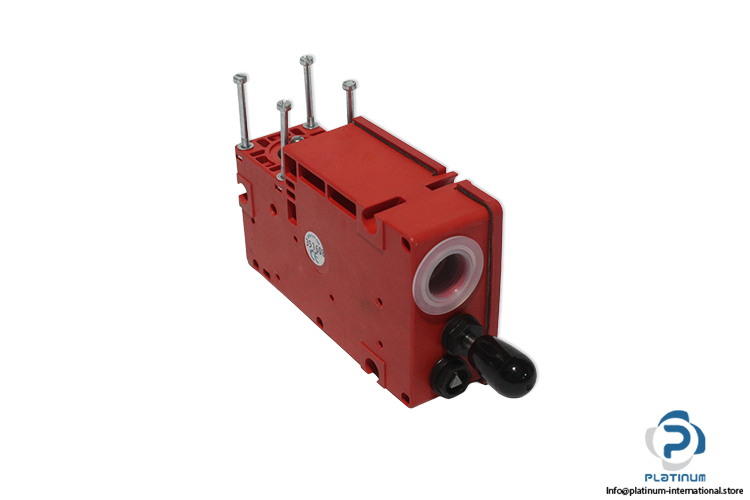

Schmersal TZFCWN24VDC/96 Solenoid Interlock Switch
新着
在庫あり1 ユニット即納可能
259,99$
Solenoid-Latching Interlock Switch SCHMERSAL TZFCWN24VDC/96 solenoid-latching interlock switch with 24 V DC operation, 1500 N hold force, and IP65/67 protection for industrial safety applications.
大量在庫
グローバル配送
専門的なサポート
品質保証
| Rated Control Voltage | 24 V DC |
| Rated Operating Voltage | 24 V DC |
| Rated Insulation Voltage Ui | 250 V AC |
| Rated Impulse Voltage Uimp | 2.5 KV |
| Power Consumption Max. | 8 W |
| Contact | Normally Open (NO) / Normally Closed (NC) |
| Contact Rating | 230 V AC / 24 V DC / 4 A |
| Hold Force | 1500 N |
| Connection | 1 Cable Entry M20 x 1.5 |
| Material | Glass-Fibre, Reinforced Thermoplastic |
| Protection Class | IP65/67 |
| Ambient Temperature | 0 … 50 °C |
| Dimensions | 129 x 41 x 92.5 mm |
| Stock Key | CON003 |
| Condition | New |
| SKU | 1103959 |
| Weight | 0,49 |
