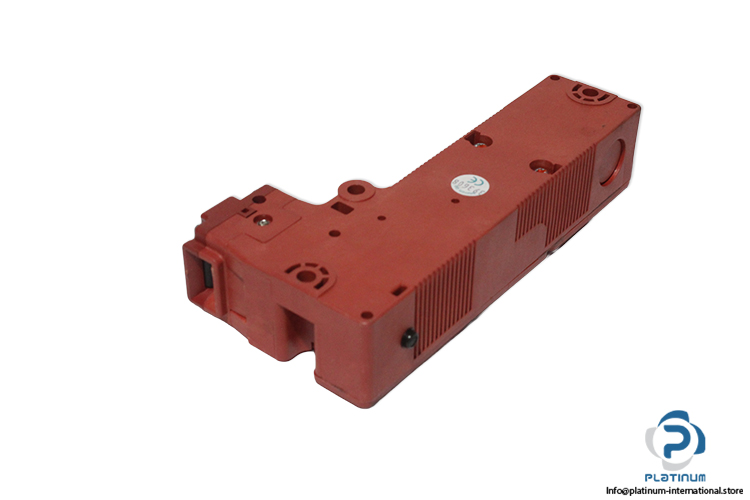

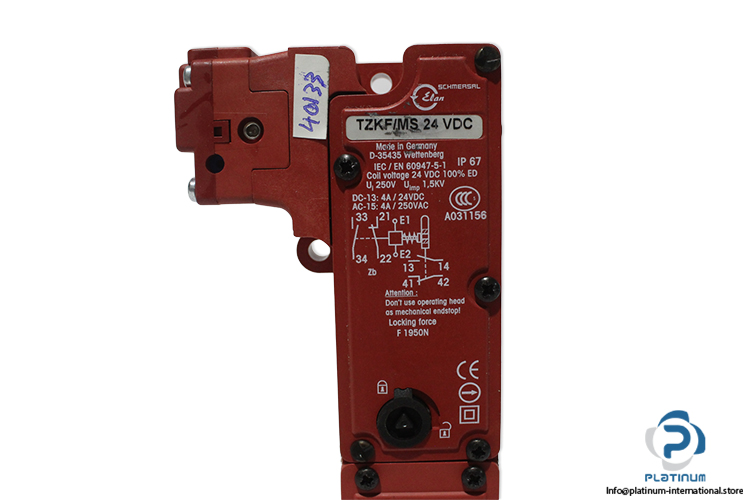

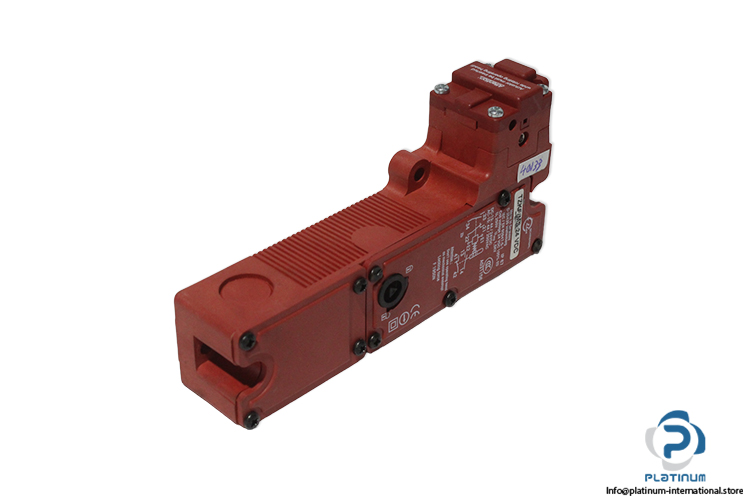

Schmersal Tzkf/Ms 24 VDC Solenoid Interlock Switch
新着
在庫あり1 ユニット即納可能
79,99$
Solenoid-Latching Interlock Switch SCHMERSAL TZKF/MS 24 VDC interlock switch with power-to-unlock operation, 2000 N locking force, and IP67 protection for industrial safety applications.
大量在庫
グローバル配送
専門的なサポート
品質保証
| Rated Operating Voltage | 24 V DC |
| Rated Insulation Voltage Ui | 250 V AC |
| Rated Impulse Voltage Uimp | 1.5 KV |
| Interlocking Principle | "Power to Unlock" (Electromechanical Unlocking System) |
| Contact | Normally Open (NO) / Normally Closed (NC) |
| Contact Rating | 250 V AC / 24 V DC / 4 A |
| Solenoid Locking Force | 2000 N |
| Actuating Directions | 4 |
| Connection | 1 Cable Entry M20 x 1.5 |
| Material | Glass-Fibre, Self-Extinguishing Thermoplastic |
| Protection Class | IP67 |
| Ambient Temperature | 0 … 50 °C |
| Dimensions | 52 x 178 x 92.5 mm |
| Stock Key | CON003 |
| Condition | New |
| SKU | 1103950 |
| Weight | 0,48 |
