Schneider Electric TSX P57103M Processor
Schneider Electric Single-Format PL7プロセッサ（モデル: TSXP57103M）は、512の個別I/O、24のアナログI/O、および8つのアプリケーション固有チャネルを備えています。動作温度は0〜60°Cで、ネットワーク、AS-Interface、CANopenなどの通信モジュールをサポートします。

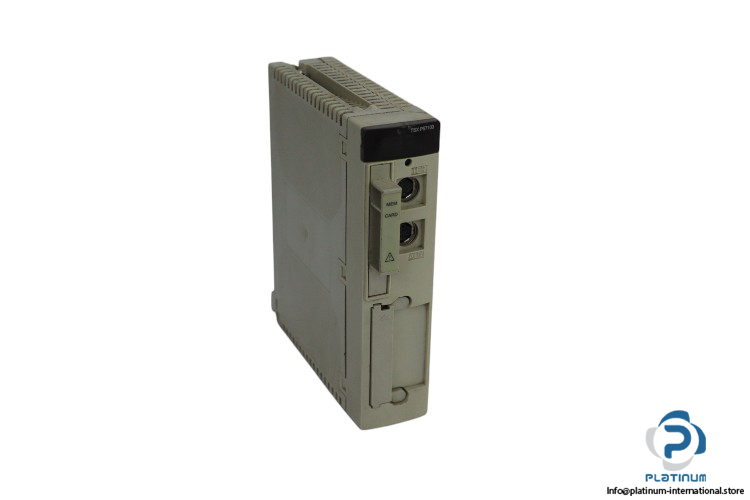

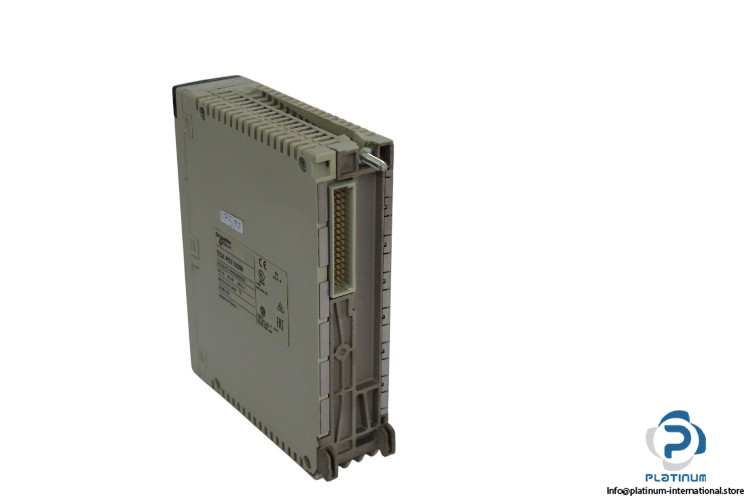

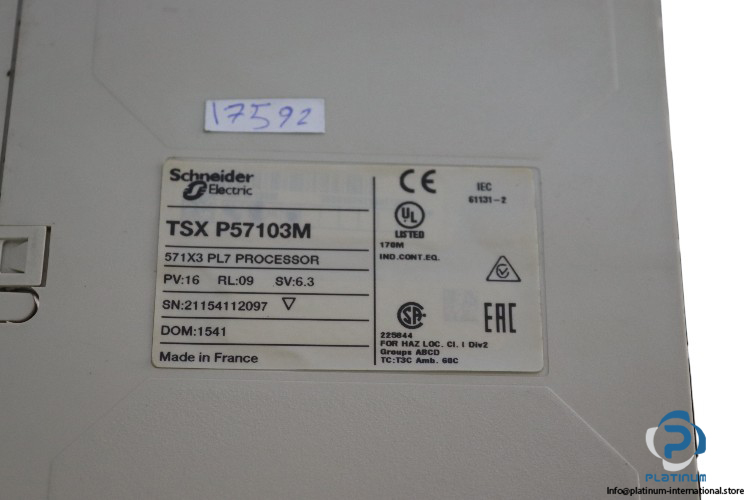

Schneider Electric Single-Format PL7 Processor (Model: TSXP57103M)
The Schneider Electric Single-Format PL7 Processor (Model: TSXP57103M) is part of the Modicon Premium Automation platform. It is designed for high-performance industrial applications and offers a flexible and scalable solution. The processor supports a discrete I/O capacity of up to 512 I/O, 24 analogue I/O, and can handle up to 8 application-specific channels. It can be expanded with communication modules such as 1 network module, 2 AS-Interface bus modules, and 1 CANopen, allowing seamless integration into complex automation systems. This processor operates at a current consumption of 440 mA at 5 V DC and has a wide temperature operating range of 0 to 60°C.
🔧 Technical Specifications:
- Manufacturer: Schneider Electric
- Type: Single-Format PL7 Processor
- Model Number: TSXP57103M
- Part Number: 571X3
- Range: Modicon Premium Automation Platform
- Software Designation: PL7 Junior/Pro
- Current Consumption: 440 mA at 5 V DC
- Discrete I/O Processor Capacity: 512 I/O
- Analogue I/O Processor Capacity: 24 I/O
- Number of Application-Specific Channels: 8
- Communication Module Processor Capacity: 1 network module, 2 AS-Interface bus modules, 1 CANopen
- Operating Temperature: 0 to 60°C
- Standard: IEC 61131-2
- Protection Degree: IP20
