Selet SEL1500/24 06012043 Sensor Interface Unit
新着
在庫あり1 ユニット即納可能
SENSOR INTERFACE UNIT
Versatile 11-pin sensor controller with 0“24V power supply and ON/OFF switching. Supports sender/receiver mode with built-in delay timing for industrial applications.0“24V060120431:1AutomationControllerDelayIndustrialInterfaceModelModuleNumberOffOnpartpinReceiverSEL1500/24SeletSenderSensorSignalSwitchSwitchingtechnologyUnit
大量在庫
グローバル配送
専門的なサポート
品質保証

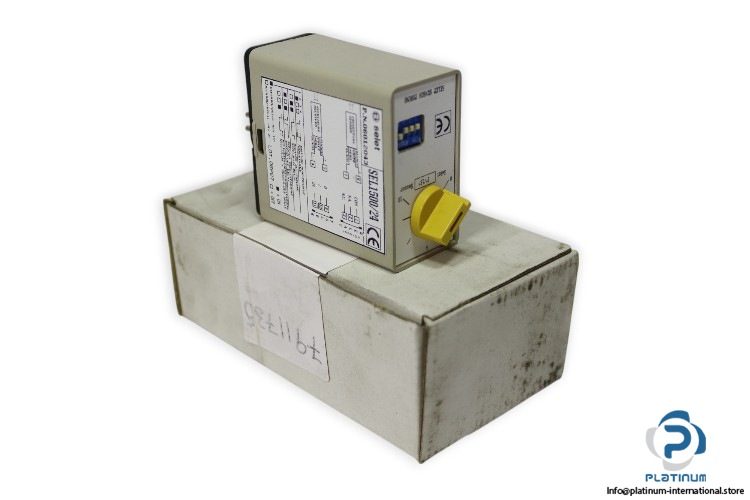

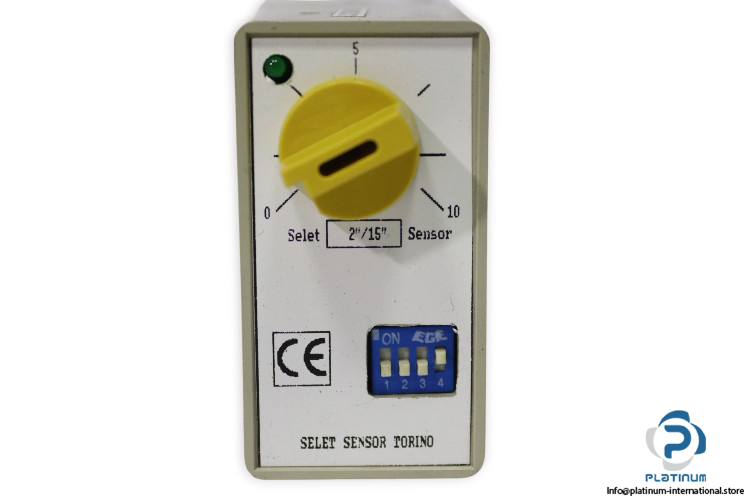

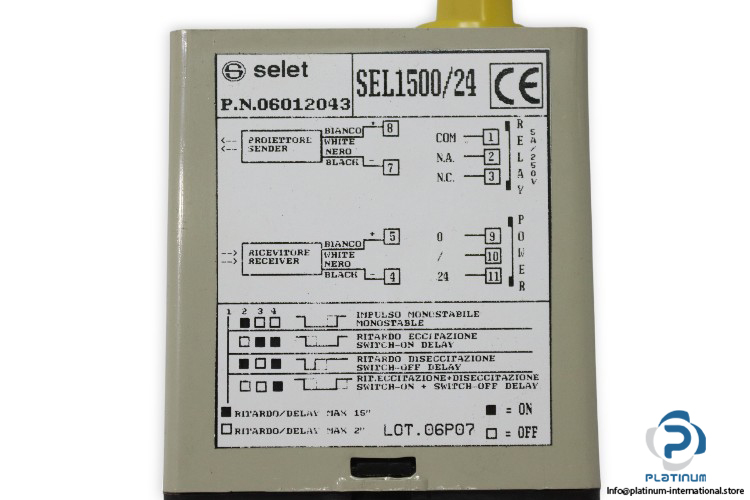

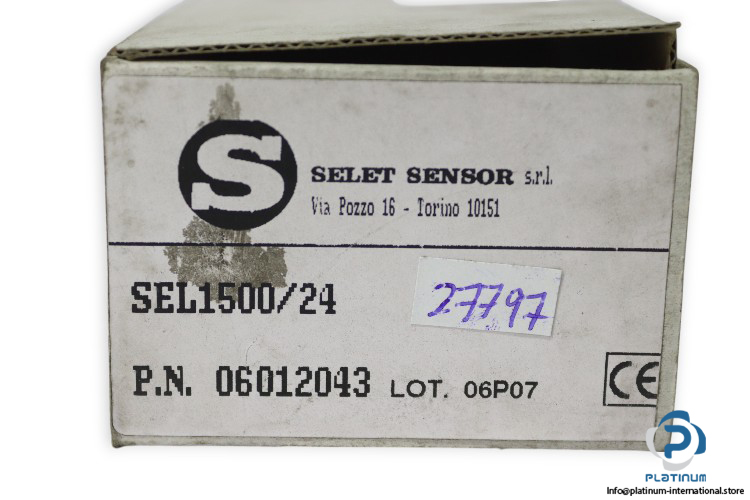

SELET SEL1500/24 SENSOR INTERFACE UNIT
Compact and reliable sensor interface unit designed to manage signal control between sensors and industrial automation systems. Ideal for accurate switching applications with built-in delay features for reliable operation.
Manufacturer: Selet Sensor
Type: Sensor Interface Unit / Sensor Controller
Model: SEL1500/24
Part No.: 06012043
Lot No.: 06P07
| Relay Voltage | 250 V |
| Relay Current | 5 A |
| Power Supply | 0 to 24 V |
| Detecting Range | 0 to 10 |
| Switching Mode | ON/OFF Switching |
| Detection Mode | Receiver, Sender |
| Impulse at ON Delay | 15 seconds |
| Impulse at OFF Delay | 2 seconds |

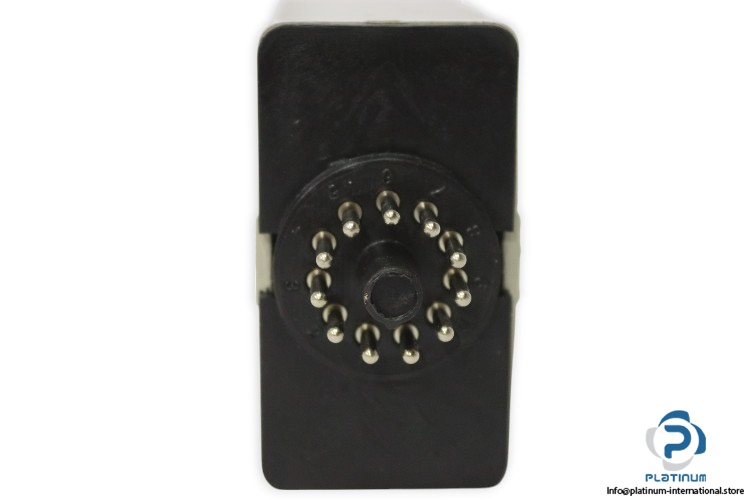

| No. of Pins | 11 |
