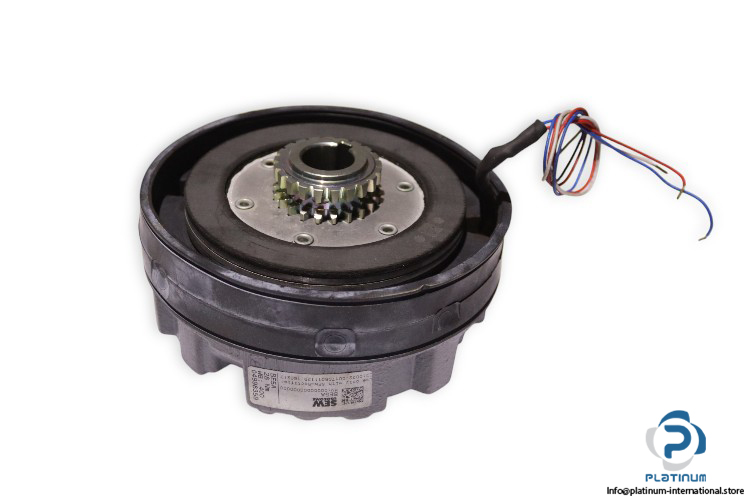

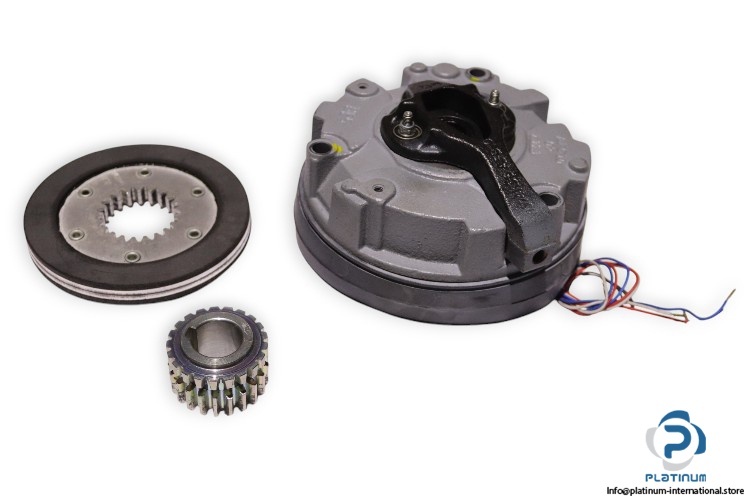

SEW BE5A Brake

SEW BE5A BRAKE

The SEW BE5A Brake is designed for reliable and efficient operation in industrial settings. With a 400V AC voltage, 28 Nm torque, and a 120 mm brake disk diameter, it ensures precise braking and is specifically designed to be used with the Sew-Rectifier for optimal performance.

Manufacturer: SEW

Type: Brake

Model: BE5A

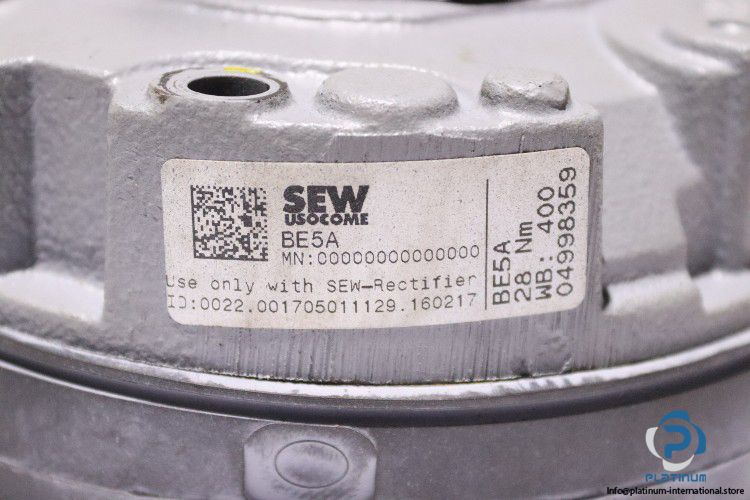

Part No.: 04998359

ID No.: 0022.001705011129.160217

Technical Specifications

• Voltage [V]: 400 AC
• Torque [Nm]: 28
• Use Only with: Sew-Rectifier
• Number of Teeth: 21

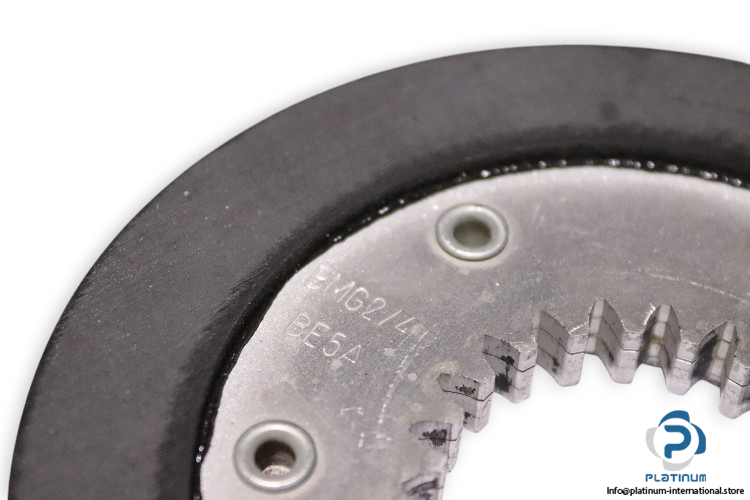

• Brake Disk Diameter [mm]: 120
• Hub Diameter: 21 mm
