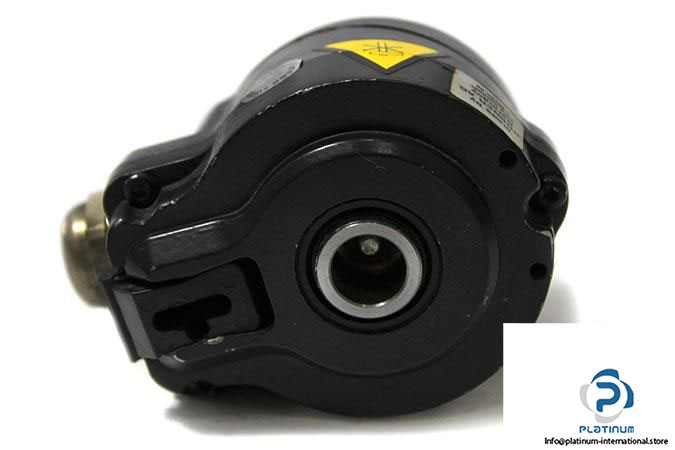

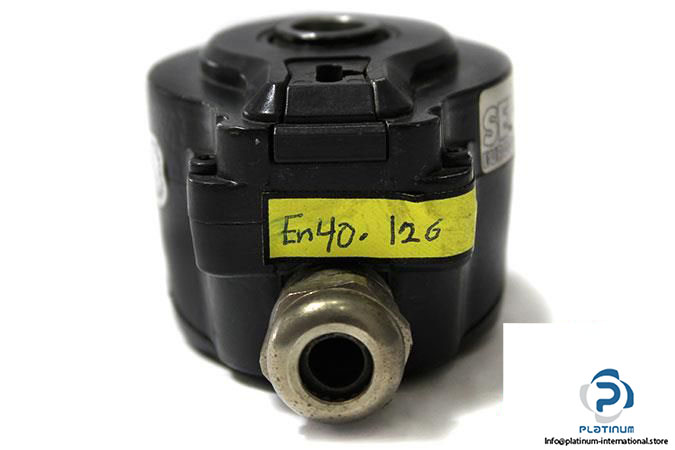

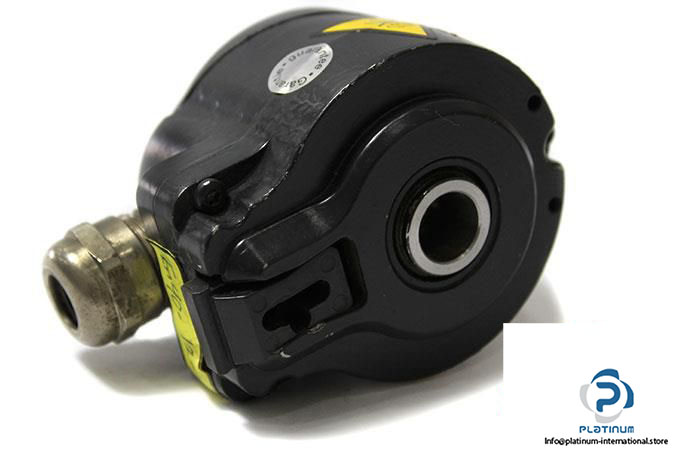

SEW HOG 71 DN 1024 CI Incremental Encoder
SEW HOG 71 DN 1024 CI INCREMENTAL ENCODER
This high-precision incremental encoder from SEW is engineered for demanding industrial automation environments. Offering reliable pulse feedback and excellent environmental protection, it ensures optimal performance in motion control systems.
Manufacturer: SEW
Type: Incremental Encoder

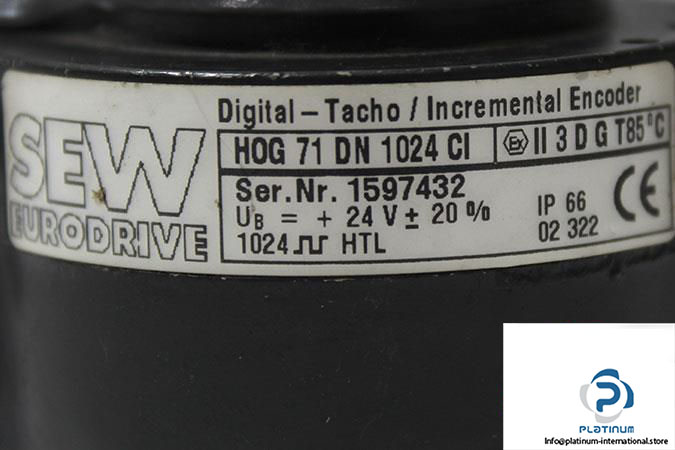

Model: HOG 71 DN 1024 CI
Serial No.: 1597432
| Shaft Design | Blind Hollow |
| Shaft Diameter | 14 mm |
| Voltage Supply | 24 VDC |
| Resolution | 1024 Pulse per Revolution (PPR) |
| Max. Current Consumption | 100 mA |
| Output Signals | A, B, C + Inverted |
| Output Stage | HTL |
| Max Speed | 10000 rpm |
| Max. Pulse Frequency | 120 kHz |
| Output Connection | Connecting Terminal |
| Protection Class | IP 66 |
| Temperature Range | -20 / 85 °C |
