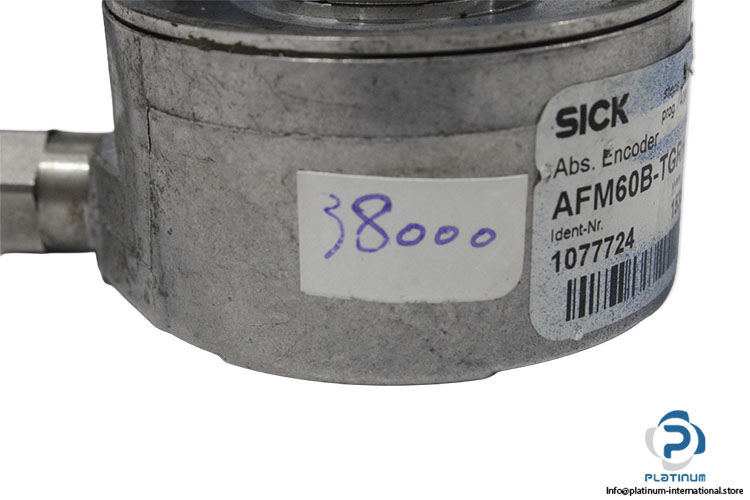

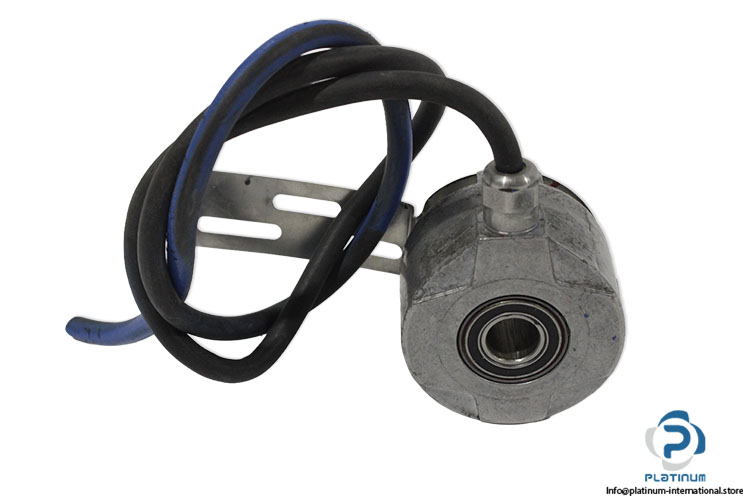

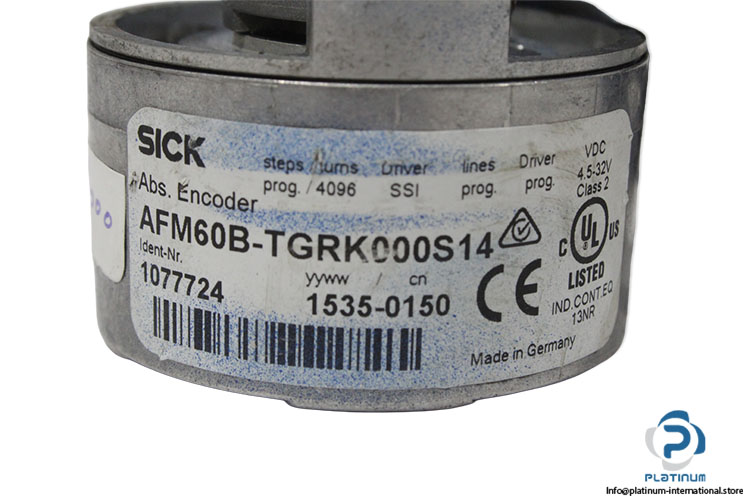

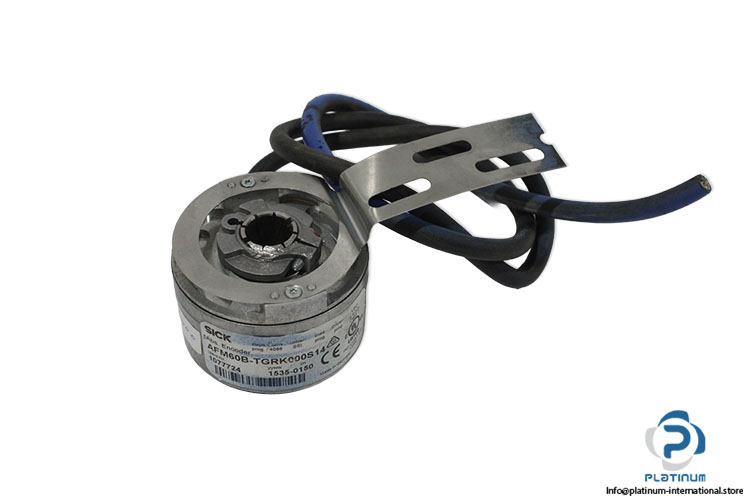

Sick AFM60B-TGRK000S14 Absolute Encoder
中古
在庫あり1 ユニット即納可能
Absolute Encoder SICK absolute encoder with 15-bit resolution, 4,096 revolutions, SSI + incremental interface, and 14 mm shaft, designed for precise industrial position and motion control applications.
大量在庫
グローバル配送
専門的なサポート
品質保証
| Ident-Nr | 1077724 |
| Steps per revolution (max. resolution) | 32,768 (15-bit) |
| Number of revolutions | 4,096 (12-bit) |
| Shaft diameter | 14 mm |
| Max. resolution (steps per revolution x number of revolutions) | 15-bit x 12-bit (32,768 x 4,096) |
| Communication interface | SSI |
| Communication interface detail | SSI + incremental |
| Initialization time | 50 ms |
| Clock frequency | max. 2 MHz |
| Pulses per revolution | 1/4 of the SSI steps per revolution |
| Output frequency | max. 600 kHz |
| Load current | max. 30 mA |
| Condition | Used |
| Stock key | JO-004 |
| SKU | 1093953 |
| Weight | 0,22 |
