Sick CLV431-6010 Fixed Mount Barcode Scanner
新着
在庫あり1 ユニット即納可能
SICK製の振動ミラーラインスキャニング技術を搭載した産業用固定設置型バーコードスキャナーで、中距離読み取り距離とIP65保護を備えた、自動化および物流システム向けです。
AutomationBarcodeCLV431fixedIdentificationIndustriallaserLineLogisticsMirrormountOscillatingReaderScannerSensorSick
大量在庫
グローバル配送
専門的なサポート
品質保証

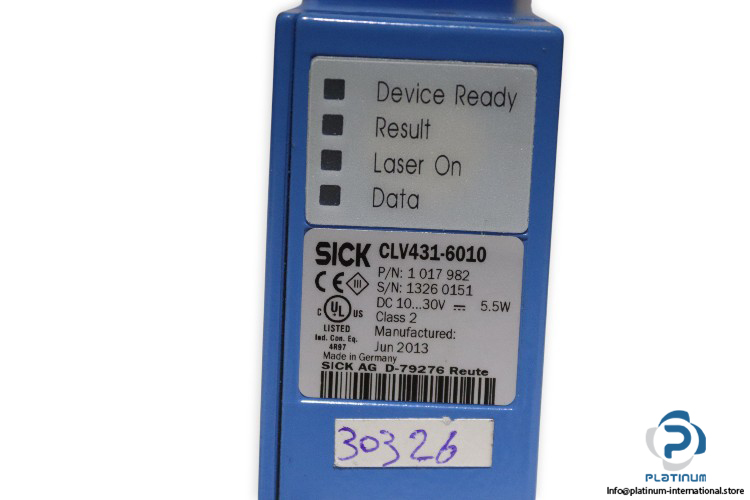

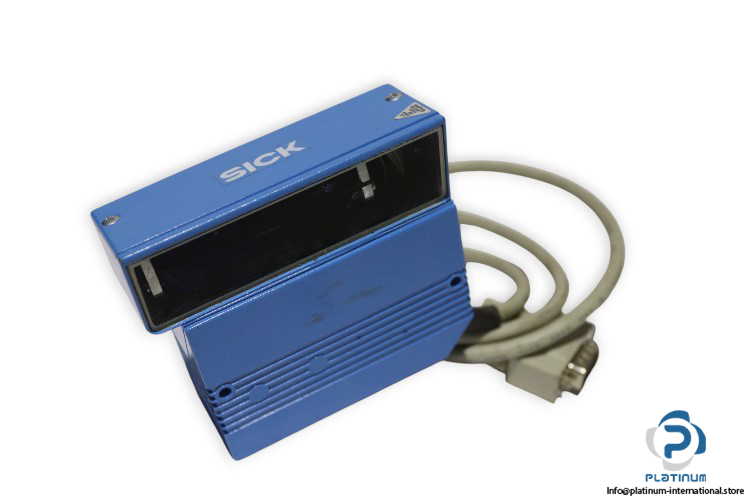

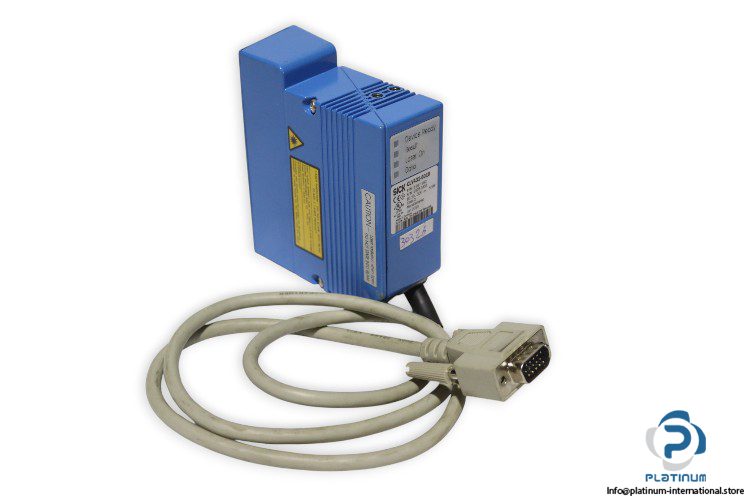

SICK CLV431-6010 Fixed Mount Barcode Scanner
The SICK CLV431-6010 is a fixed mount barcode scanner designed for reliable automatic identification in industrial environments. This mid-range line scanner uses visible red laser technology and an oscillating mirror scanning system to ensure accurate barcode reading in automation, logistics, and manufacturing applications.
Manufacturer: SICK
Type: Fixed Mount Barcode Scanner
Model: CLV431-6010
Part No.: 1017982
Serial Number: 13260151
| Class | 2 |
| Version | Mid Range |
| Connection Type | Standard |
| Scanner Design | Line Scanner |
| Reading Field | Oscillating Mirror |
| Optical Focus | Fixed Focus |
| Light Source | Visible Red Light (650 nm) |
| Laser Class | 2 (DIN EN 60825-1) |
| Aperture Angle | ‰¤ 50° |
| Reading Distance | 75 mm ... 340 mm |
| Scanning Frequency | 300 Hz ... 800 Hz |
| Code Resolution | 0.25 mm ... 0.5 mm |
| Oscillating Mirror Functions | Fixed (Adjustable Position), Oscillating (Variable Or Fixed Amplitude), One Shot |
| Oscillation Frequency | 0.5 Hz ... 4 Hz |
| Angle Of Deflection | “20° ... 20° (Adjustable Via Software) |

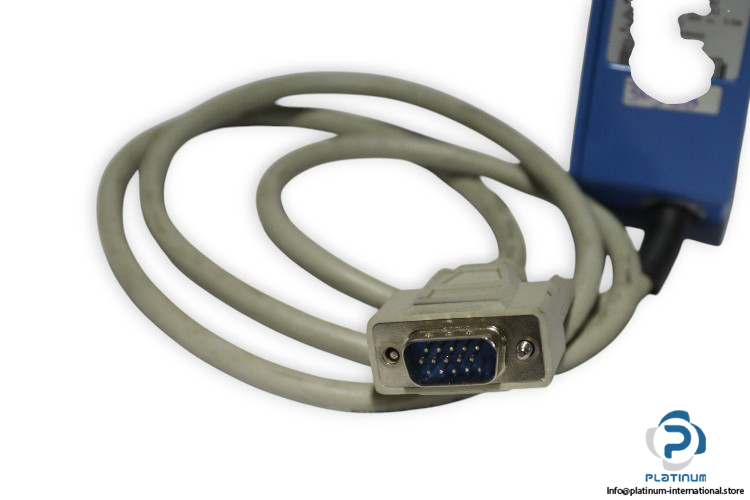

| Connection Type | 1 x 15-Pin D-Sub HD Male Connector (0.9 m) |
| Connecting Cable | 15-Pins |
| Supply Voltage | 10 V DC ... 30 V DC |
| Power Consumption | 5.5 W |
| Housing Material | Die-Cast Zinc, Does Not Contain Paint Wetting Impairment Substances |
| Housing Color | Light Blue (RAL 5012) |
| Enclosure Rating | IP65 (EN 60529 (1991-10)) A1 (2002-02) |
| Protection Class | III (EN 61140 (2002-03)) |
| Dimensions (L × W × H) | 99.8 mm × 92.2 mm × 37.8 mm |
