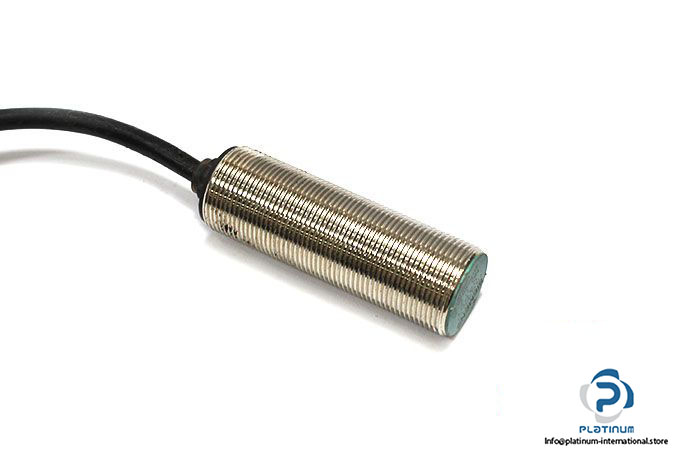

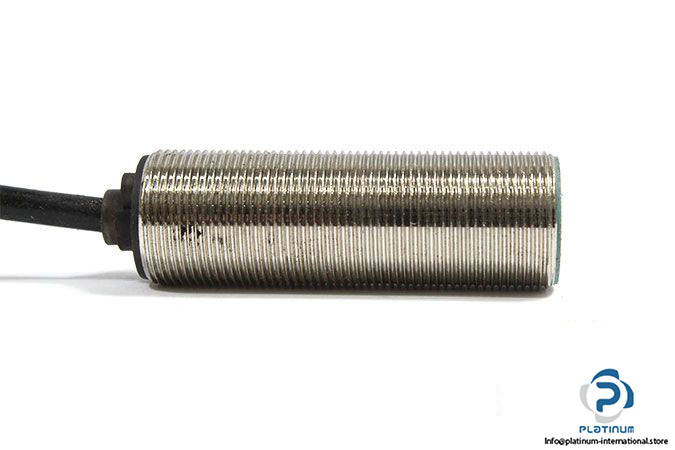

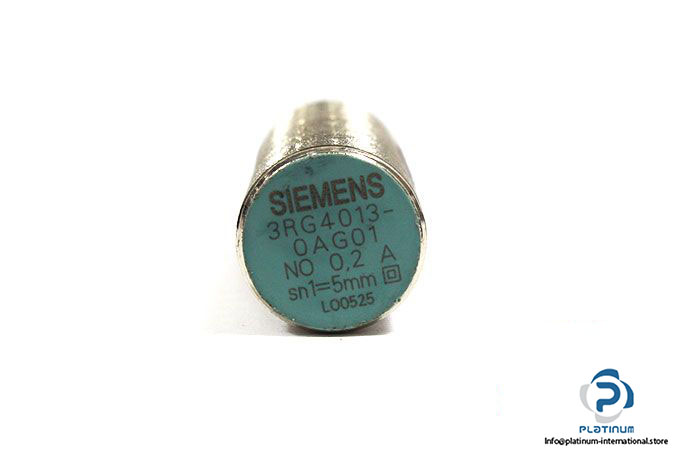

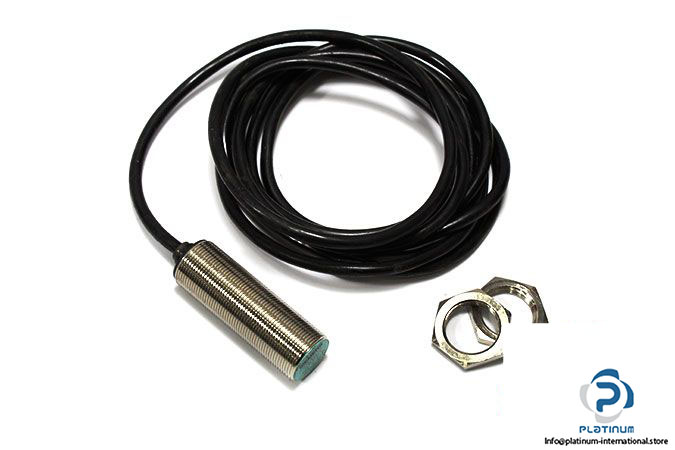

Siemens 3RG40 13-0AG01 Inductive Sensor
SIEMENS 3RG4013-0AG01 INDUCTIVE SENSOR
The Siemens 3RG4013-0AG01 is a high-performance inductive sensor designed for precise object detection in industrial environments. With a rugged nickel-plated brass housing and IP67 protection, it ensures reliable operation in demanding conditions. Its flush-mountable design and normally open PNP output make it suitable for a wide range of automation applications.
Manufacturer: SIEMENS
Type: Inductive Sensor
MRN: 3RG4013-0AG01
Part No: L00525
Family: 3RG4
| Sensing Range | 5 mm |
| Operating Voltage | 10 / 34 V DC |
| Operating Current | 200 mA |
| Electrical Design | PNP |
| Switching Output | Normally open |
| Connector Type | Cable, 2 m |
| Enclosure Rating | IP67 |
| Diameter / Housing Length | 18 mm / 54 mm |
| Housing Material | Nickel-plated brass |
| Mounting | Flush-mountable |
